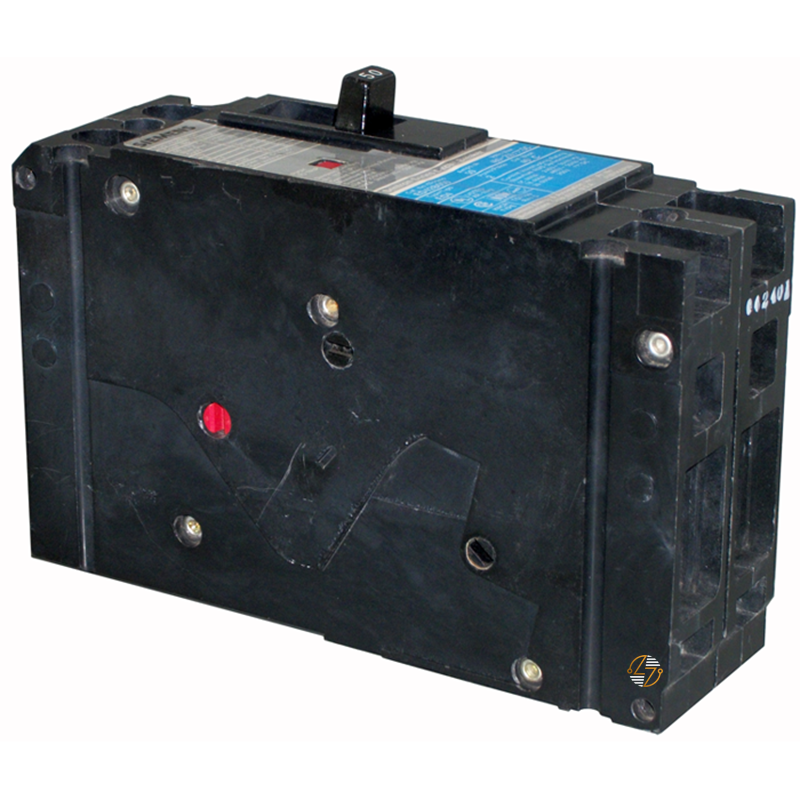

ED62B100 - 100Amp Circuit Breaker

ED62B100 - 100Amp Circuit Breaker

When it's time to replace a circuit breaker, choosing the correct replacement helps maintain the integrity of your existing electrical distribution system. The Siemens ED62B100 is a 100 Amp, 2-pole ED6 SENTRON molded case circuit breaker designed to provide the form, fit, and function required for compatible Siemens electrical equipment. Whether you're replacing a worn breaker during scheduled maintenance or restoring service after a failure, this breaker is engineered to match the original installation without requiring modifications to compatible systems.

Designed for long-term service, the Siemens ED62B100 is built to last and provides the ratings, configuration, and compatibility needed to keep existing Siemens ED6 electrical systems operating as originally intended. For facilities that require a dependable replacement breaker without changing the original equipment design, this model delivers the proper fit and electrical characteristics for compatible legacy installations.

Key Features and Benefits

• Form, fit, and functional replacement for compatible Siemens ED6 SENTRON electrical distribution equipment
• 100 Amp, 2-pole molded case circuit breaker
• Bolt-on mounting for compatible Siemens panelboards and switchboards
• Helps protect electrical circuits from overloads and short circuits
• Interrupting rating of 25kA at 480VAC
• Interrupting rating of 65kA at 240VAC
• Includes load-side terminals
• HACR rated for compatible HVAC and refrigeration applications
• Suitable for reverse-feed installations when installed per manufacturer instructions
• Designed for operation in 40°C ambient temperatures
• Built to last for commercial and industrial electrical distribution systems


Technical Specifications

• Manufacturer: Siemens

• Part Number: ED62B100

• Series: SENTRON

• Type: ED6

• Product Type: Molded Case Circuit Breaker

• Amperage: 100 Amps

• Poles: 2

• Interrupting Rating: 25kA @ 480VAC; 65kA @ 240VAC

• Mounting Style: Bolt-On

• Terminal Configuration: Includes Load-Side Terminals

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Suitable for Reverse Feed: Yes

• Dimensions:
  • Width: 2.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Approximate Shipping Weight: 4.31 lbs.


Material Compliance and Certifications

The Siemens ED62B100 is HACR rated for compatible HVAC and refrigeration applications. It is suitable for reverse-feed installations when installed in accordance with Siemens instructions and applicable electrical codes. Designed for operation in 40°C ambient environments, this molded case circuit breaker should be installed and serviced by qualified personnel following all applicable electrical standards and manufacturer guidelines.

Where It Works Best

• Commercial buildings
• Manufacturing facilities
• Warehouses
• Office buildings
• Schools and universities
• Healthcare facilities
• Retail buildings
• Mechanical rooms
• HVAC and refrigeration equipment
• Compatible Siemens panelboards and switchboards
