ED62B025 - 25Amp Circuit Breaker

ED62B025 - 25Amp Circuit Breaker

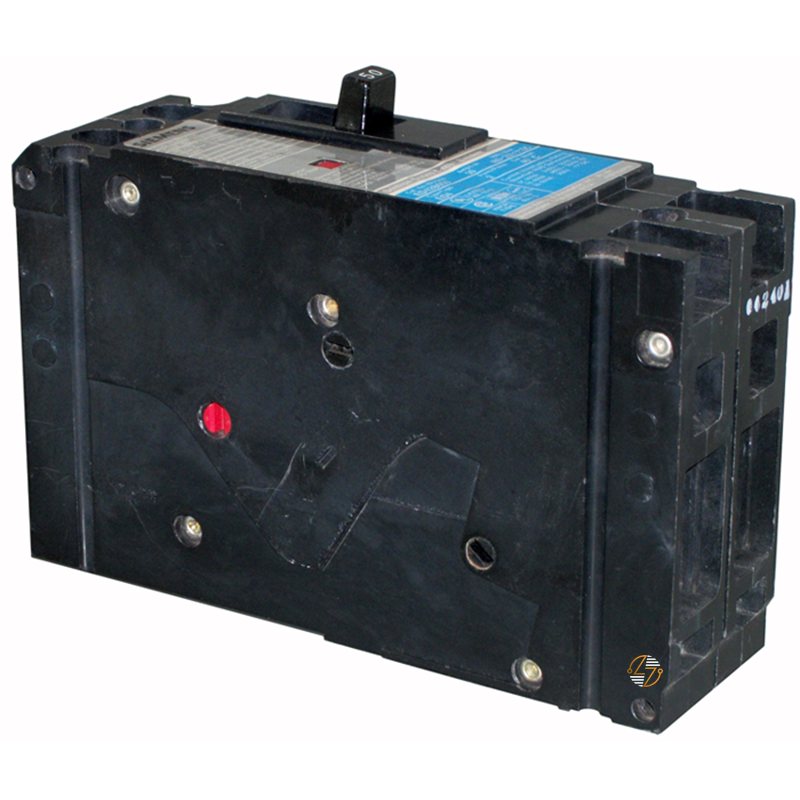

When you're replacing a circuit breaker in an existing Siemens electrical distribution system, matching the original specifications is key to keeping the installation operating as intended. The Siemens ED62B025 is a 25 Amp, 2-pole SENTRON ED6 molded case circuit breaker designed as a form, fit, and functional replacement for compatible Siemens panelboards and switchboards. Its bolt-on mounting design provides a secure installation without requiring modifications, making it a practical choice for maintenance, repairs, and replacement projects where maintaining the original system configuration is important.

You'll commonly find the ED62B025 protecting 240VAC and 480VAC branch circuits in commercial buildings, manufacturing facilities, warehouses, schools, and other institutional environments. The 2-pole configuration disconnects both poles simultaneously, making it suitable for equipment and dedicated branch circuits that require coordinated overcurrent protection.

Key Features and Benefits

• Form, fit, and functional replacement for compatible Siemens SENTRON ED6 circuit breakers
• 25 Amp, 2-pole molded case circuit breaker for branch circuit protection
• Bolt-on mounting for secure installation in compatible panelboards and switchboards
• Includes load-side terminals for straightforward field wiring
• Rated 25kA at 480VAC and 65kA at 240VAC
• HACR rated for compatible HVAC and refrigeration applications
• Suitable for reverse feed applications when installed according to manufacturer guidelines
• Designed for operation in 40°C ambient temperatures
• Commonly used in commercial, industrial, and institutional electrical systems
• Built to last for long-term service in compatible electrical distribution equipment


Technical Specifications

• Manufacturer: Siemens

• Part Number: ED62B025

• Series: SENTRON

• Frame Type: ED6

• Product Type: Molded Case Circuit Breaker

• Amperage: 25 Amps

• Poles: 2

• Interrupting Rating: 25kA @ 480VAC; 65kA @ 240VAC

• Voltage Rating: 240VAC / 480VAC

• Mounting Style: Bolt-On

• Terminal Type: Includes Load-Side Terminals

• Ambient Temperature Rating: 40°C

• Reverse Feed Suitable: Yes

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Approximate Shipping Weight: 4.31 lbs.


Material Compliance and Certifications

The Siemens ED62B025 is manufactured to meet UL 489 requirements for molded case circuit breakers. It is HACR rated for compatible heating, air conditioning, and refrigeration equipment and is suitable for reverse feed installations when installed in accordance with Siemens installation instructions and applicable electrical codes. Installation and servicing should always be performed by qualified electrical personnel following local, state, and national electrical requirements.

Where It Works Best

• Siemens SENTRON ED6-compatible panelboards and switchboards
• Commercial office buildings
• Manufacturing and industrial facilities
• Warehouses and distribution centers
• Schools, universities, hospitals, and other institutional buildings
• HVAC and refrigeration equipment requiring HACR-rated circuit protection
• 240VAC and 480VAC branch circuits
• Maintenance and replacement of existing Siemens ED6 circuit breakers
• Applications requiring the same form, fit, mounting style, and electrical ratings as the original breaker
