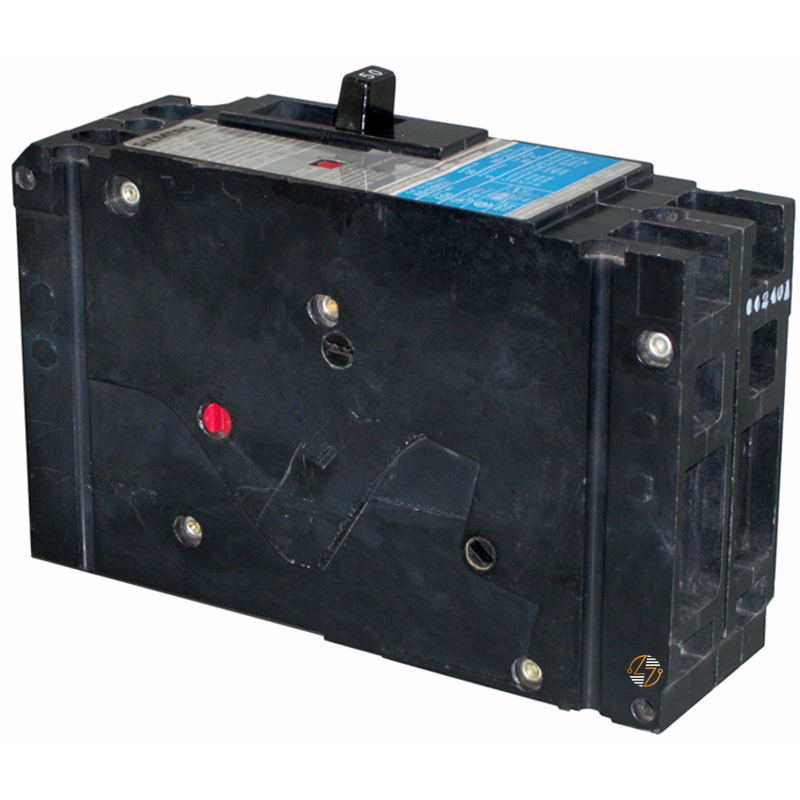

The Siemens ED42B030 is a 30 Amp, 2-pole molded case circuit breaker designed to provide dependable circuit protection for commercial and industrial electrical distribution systems. Built specifically for use with Siemens ED-frame equipment, this breaker serves as a form, fit, and functional replacement for compatible installations, making it easy to maintain existing electrical systems without modifying the panel. Whether you're replacing an aging breaker during scheduled maintenance or restoring an existing installation, the ED42B030 offers the electrical ratings and physical compatibility needed for a straightforward replacement.

At the heart of the ED42B030 is a thermal magnetic trip unit that delivers two levels of protection. The thermal element responds to sustained overload conditions, while the magnetic trip reacts quickly to short circuits, helping protect conductors and connected equipment from damaging fault conditions.

Key Features and Benefits

• 30 Amp, 2-pole Siemens ED frame molded case circuit breaker
• Thermal magnetic trip unit for dependable overload and short-circuit protection
• Rated for 480V AC commercial and industrial applications
• 18kA interrupting capacity (18kAIC) at 480V AC
• Includes load-side lug terminals (LN1E100)
• Accepts 10–1/0 AWG copper or aluminum conductors
• Designed for compatibility with Siemens ED-frame panel equipment
• Ideal as a form, fit, and functional replacement for compatible installations
• Helps maintain existing electrical distribution systems without panel modifications
• Built to last for dependable long-term service


Technical Specifications

• Catalog Number: ED42B030

• Manufacturer: Siemens

• Product Type: Molded Case Circuit Breaker

• Frame Type: ED

• Trip Unit: Thermal Magnetic

• Amperage Rating: 30 Amps

• Voltage Rating: 480V AC

• Poles: 2

• Interrupt Rating: 18 kAIC at 480V AC

• Terminal Type: Load Lug Terminals (LN1E100)

• Wire Range: 10–1/0 AWG Copper / Aluminum

• Operating Temperature Reference: Standard 40°C Breaker

• Dimensions: 2.00 in. W × 6.35 in. H × 3.92 in. D
• Weight: 2.571 lb

• Product Family: ED4 18kAIC, 480VAC

• Country of Origin: Mexico


Material Compliance and Certifications

• The Siemens ED42B030 complies with UL 489 and IEC 60947-2 standards for molded case circuit breakers, meeting recognized safety and performance requirements for low-voltage electrical distribution. The breaker is RoHS compliant (since July 1, 2006) and is subject to WEEE (2012/19/EU) take-back obligations where applicable. Siemens also provides REACH Article 33 information for this product.
• Installation should always be completed by qualified electrical professionals in accordance with the National Electrical Code (NEC) and all applicable local electrical codes.


Where It Works Best

• Siemens ED-frame panelboards and distribution equipment
• Commercial electrical distribution systems
• Industrial power distribution panels
• 480V AC branch circuit protection applications
• Replacement of existing compatible Siemens ED-frame circuit breakers
• Manufacturing facilities and commercial buildings
• Installations requiring a 30 Amp, 2-pole molded case circuit breaker
• Projects where maintaining original equipment compatibility is important
