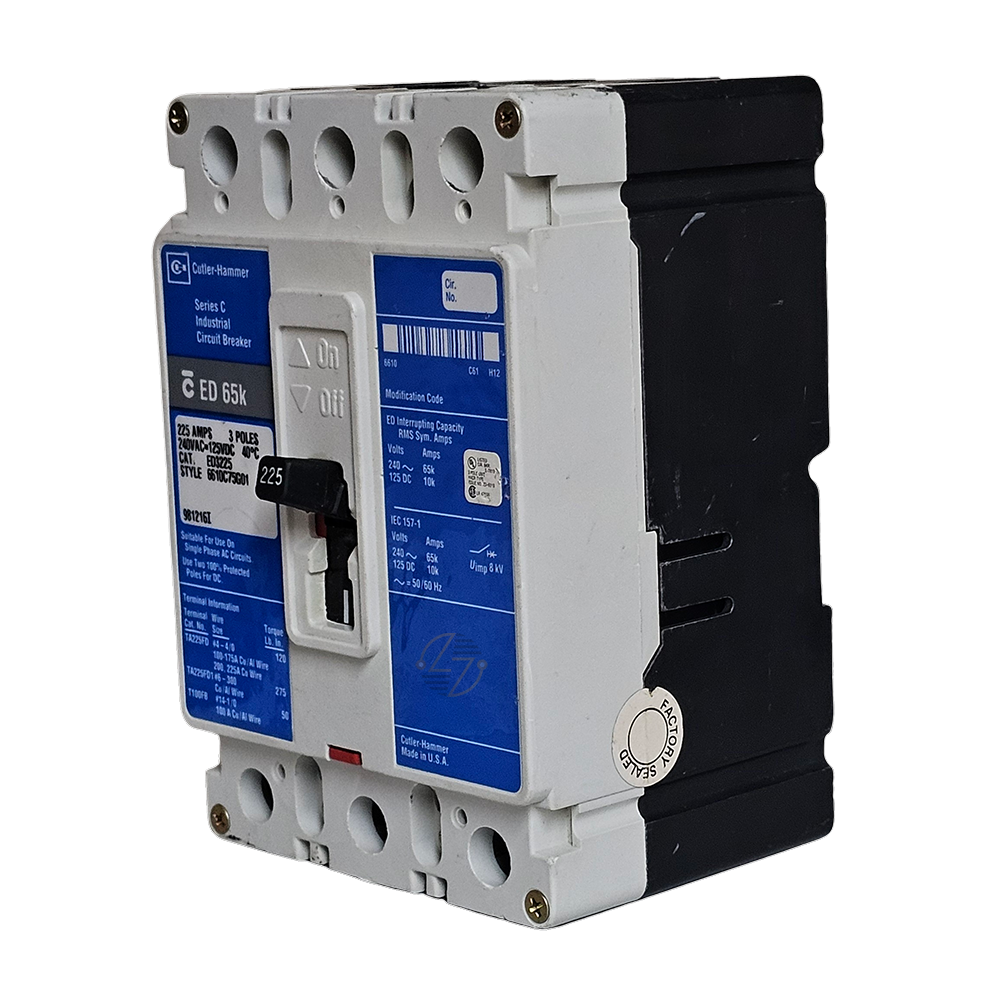

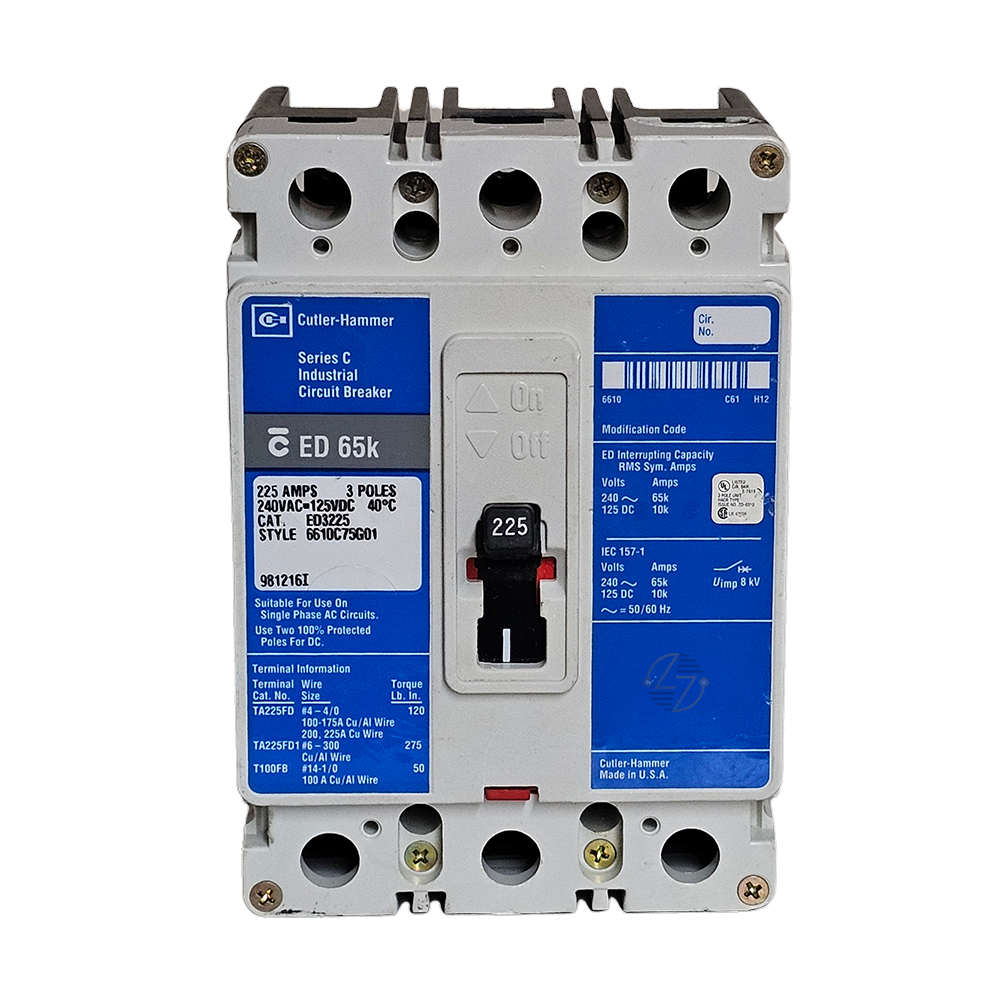

ED3225 **Blue Label** Cutler Hammer Circuit Breaker

ED3225 **Blue Label** Cutler Hammer Circuit Breaker

Need a reliable 225 Amp circuit breaker you can count on to keep your electrical system running smoothly? The Eaton ED3225 Series C molded case circuit breaker is built to deliver dependable overcurrent protection while serving as a form, fit, and functional replacement for compatible Eaton ED-frame breakers. Whether you're handling routine maintenance or bringing an older system back online, this breaker helps you get the job done without unnecessary hassle or modifications.

Engineered for performance and durability, this 3-pole molded case circuit breaker features a T186 thermal-magnetic trip unit that quickly responds to both overloads and short circuits. That means better protection for your equipment and less risk of costly downtime.

Key Features and Benefits

• Reliable 225 Amp molded case circuit breaker for commercial and industrial use
• 3-pole design ideal for three-phase electrical systems
• Designed as a form, fit, and functional replacement for compatible Eaton ED-frame breakers
• T186 thermal-magnetic trip unit helps protect against overloads and short circuits
• Rated for 240VAC, 125VDC, and 50/60 Hz operation
• High 65 kAIC interrupting capacity at 240VAC
• Factory-installed load terminals for easier installation
• Rugged F-frame construction built for long-term performance
• Great choice for maintenance, repair, and replacement projects
• UL Listed for trusted safety and compliance


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: ED3225

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Circuit Breaker Type: ED

• Frame Type: Complete Breaker

• Frame Size: F Frame

• Amperage Rating: 225 Amps

• Voltage Rating: 240VAC, 125VDC

• Frequency Rating: 50/60 Hz

• Number of Poles: 3

• Trip Type: T186 Thermal-Magnetic

• Interrupt Rating: 65 kAIC at 240VAC

• Terminals: Load

• Dimensions:
  • Length: 3.38 in.
  • Width: 4.13 in.
  • Height: 6.00 in.
• Weight: 4.5 lb

• UPC: 786679455081


Material Compliance and Certifications

The Eaton ED3225 is UL Listed, giving you confidence that it meets recognized safety standards for molded case circuit breakers. For best performance and compatibility, always match replacement breakers with the original equipment’s specifications, including frame size, amperage, voltage rating, interrupting capacity, trip unit, and pole configuration. Installation should be performed by qualified professionals in accordance with the National Electrical Code (NEC) and all applicable local regulations.

Where It Works Best

• Panelboards and switchboards designed for Eaton ED-frame breakers
• Commercial buildings and office spaces
• Manufacturing facilities and industrial plants
• Motor control centers
• HVAC systems and mechanical equipment
• Pumps, compressors, conveyors, and other three-phase machinery
• Electrical distribution systems operating at 240VAC or 125VDC
• Maintenance and repair projects requiring a compatible replacement breaker
