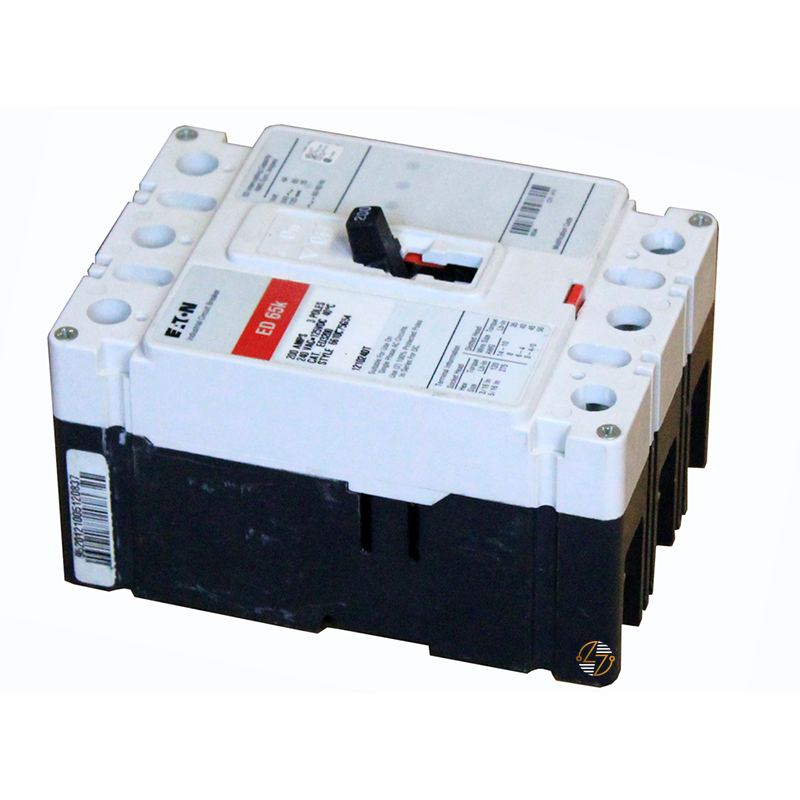

ED3225 - 225Amp Circuit Breaker

ED3225 - 225Amp Circuit Breaker

The Eaton ED3225 Series C Molded Case Circuit Breaker offers robust, reliable circuit protection with a 225A capacity, ideal for safeguarding electrical systems in commercial and industrial applications. Engineered with a fixed thermal magnetic trip, this three-pole circuit breaker ensures precise protection against overloads and short circuits, operating efficiently across a wide range of environments. Backed by Eaton’s proven expertise, the ED3225 is a trusted solution for electrical systems requiring up to 240 Vac or 125 Vdc operation at 50 to 60 Hz frequency.

Key Features and Benefits:

• 225A Capacity: Supports high-capacity applications, ensuring seamless performance in demanding environments.
• Fixed Thermal Magnetic Trip: Provides reliable and automatic circuit protection against both overloads and short circuits.
• High Interrupt Rating: Rated at 65 kAIC at 240 Vac, offering superior performance in critical situations.
• Compact and Durable Design: Space-saving dimensions and a robust structure make this circuit breaker a perfect fit for tight installations without sacrificing performance.
• Eaton's Series C Technology: Combines quality with innovative design for reliable and long-lasting operation.

Technical Specifications:

• Amperage Rating: 225 A
• Voltage Rating: 240 Vac, 125 Vdc
• Interrupt Rating: 65 kAIC at 240 Vac
• Trip Type: Fixed thermal magnetic
• Number of Poles: 3
• Frequency Rating: 50 to 60 Hz
• Frame Type: F-Frame

Material Compliance and Certifications:

• UL Listed: Complies with rigorous UL standards for safety and performance, ensuring optimal protection for electrical systems.

Suitability:

• Perfect for Industrial Applications: Designed to protect large-scale electrical systems in commercial and industrial facilities, ensuring operational efficiency and safety.
• Ideal for Commercial Buildings: Suitable for installation in office complexes, data centers, and more, where reliable circuit protection is a must.

By choosing the Eaton ED3225 Molded Case Circuit Breaker, you are investing in a product that provides top-tier protection and adheres to industry-leading standards for electrical safety and reliability.
