ED2225L - 225Amp Circuit Breaker

ED2225L - 225Amp Circuit Breaker

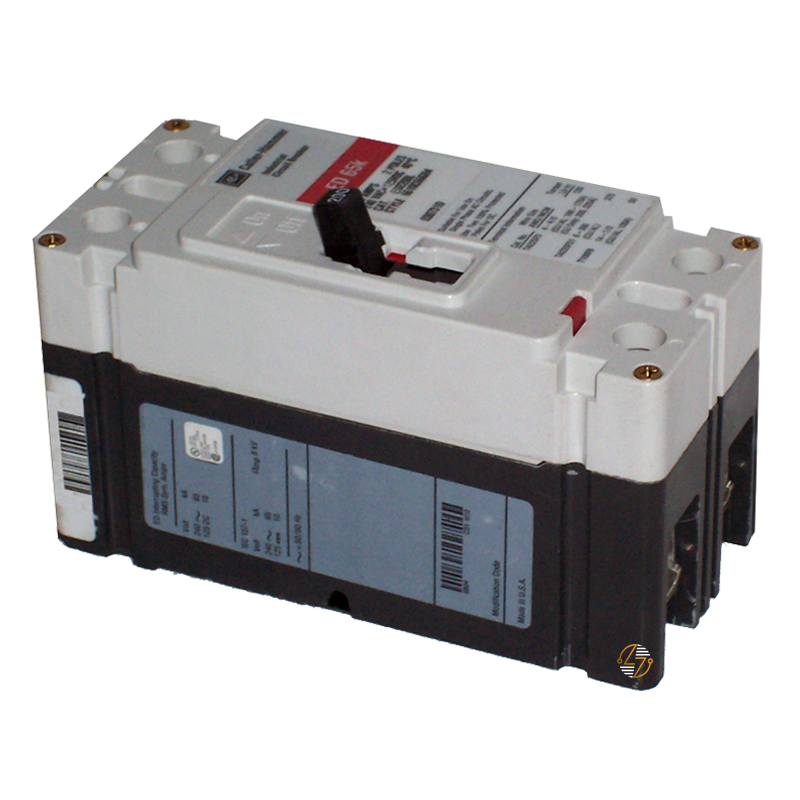

The Eaton ED2225L Series C Complete Molded Case Circuit Breaker is designed to help keep compatible electrical distribution systems protected and operating as intended. Rated at 225 amps with a two-pole configuration, this molded case circuit breaker provides dependable overcurrent and short-circuit protection for commercial and industrial applications that require an Eaton Series C ED-frame breaker. Whether you're replacing a failed breaker during scheduled maintenance or restoring an existing electrical system to service, the ED2225L offers the same form, fit, and function expected for compatible installations. Its T186 thermal-magnetic trip unit responds to both overloads and fault conditions, while the 65 kAIC interrupt rating at 240 VAC supports applications requiring high fault-current protection.

Key Features and Benefits

• Designed as a form, fit, and functional replacement for compatible Eaton Series C ED-frame circuit breakers
• 225 amp continuous current rating
• Two-pole molded case circuit breaker
• Rated for 240 VAC and 125 VDC applications
• 65 kAIC interrupt rating at 240 VAC
• T186 thermal-magnetic trip unit protects against overloads and short circuits
• Complete breaker with durable F-frame construction
• Line and load terminals for compatible installation configurations
• Suitable for 50/60 Hz electrical systems
• Built to last for dependable operation in compatible electrical distribution equipment

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2225L

• Product Type: Complete Molded Case Circuit Breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Frame Type: Complete Breaker

• Amperage Rating: 225 A

• Number of Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency: 50–60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186 Thermal-Magnetic

• Terminal Type: Line and Load

• Dimensions: 3.38 in (L) × 2.75 in (W) × 6.00 in (H)

• Weight: 2.9 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements
• Covered by Eaton's standard warranty in accordance with the applicable Eaton Selling Policy


Where It Works Best

The Eaton ED2225L is commonly used in compatible commercial, industrial, and institutional electrical distribution systems that require a 225-amp, two-pole molded case circuit breaker. It is suitable for use in compatible panelboards, switchboards, motor control equipment, and other power distribution assemblies designed for Eaton Series C ED-frame breakers. Whether replacing an existing breaker during routine maintenance or restoring equipment to service after a fault, the ED2225L helps maintain the original system design, electrical ratings, and equipment compatibility while providing dependable overcurrent protection for compatible legacy electrical systems.
