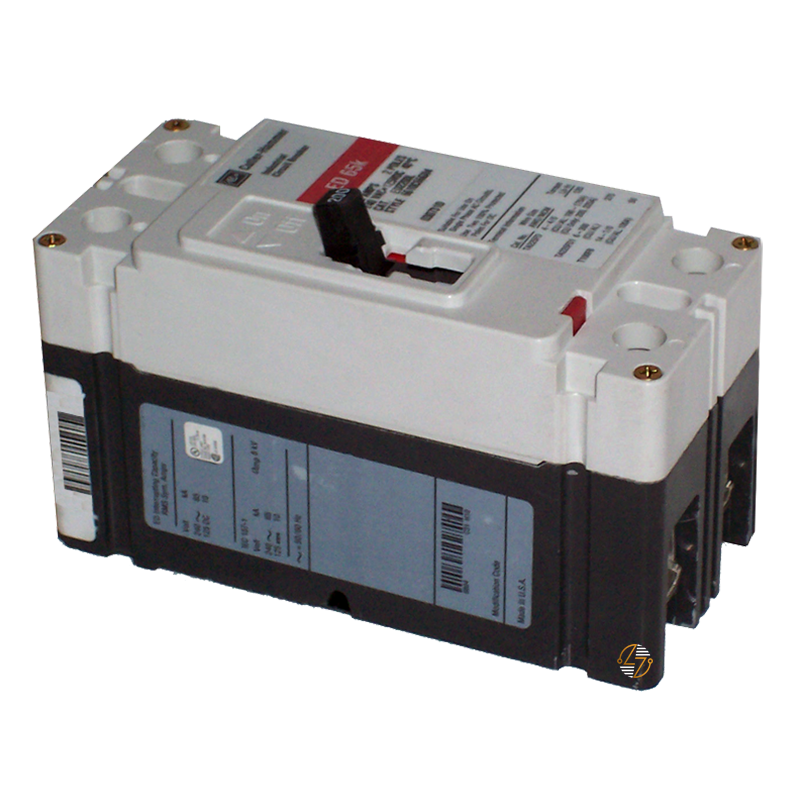

ED2225 - 225Amp Circuit Breaker

ED2225 - 225Amp Circuit Breaker

When you're maintaining an existing electrical distribution system, choosing the correct replacement breaker helps keep everything operating as intended. The Eaton ED2225 Series C Complete Molded Case Circuit Breaker is designed as a form, fit, and functional replacement for compatible Eaton Series C ED-frame applications. With a 225 amp rating, two-pole configuration, and a 65 kAIC interrupt rating at 240 VAC, this breaker helps protect electrical circuits from overloads and short circuits while preserving the original electrical specifications of your system. Its T186 thermal-magnetic trip unit responds to both sustained overloads and fault conditions, while the load-side terminal configuration is designed for use in compatible installations.

Key Features and Benefits

• Designed as a form, fit, and functional replacement for compatible Eaton Series C ED-frame circuit breakers
• 225 amp continuous current rating
• Two-pole molded case circuit breaker
• Rated for 240 VAC and 125 VDC applications
• 65 kAIC interrupt rating at 240 VAC
• T186 thermal-magnetic trip unit helps protect against overloads and short circuits
• Complete breaker with F-frame construction
• Load-side terminal configuration for compatible installations
• Suitable for 50/60 Hz electrical systems
• Built to last for dependable service in compatible electrical distribution equipment

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2225

• Product Type: Complete Molded Case Circuit Breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Frame Type: Complete Breaker

• Amperage Rating: 225 A

• Number of Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency: 50–60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186 Thermal-Magnetic

• Terminal Type: Load

• Dimensions: 3.38 in (L) × 2.75 in (W) × 6.00 in (H)

• Weight: 2.9 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements
• Covered by Eaton's standard warranty in accordance with the applicable Eaton Selling Policy


Where It Works Best

The Eaton ED2225 is commonly used in compatible commercial, industrial, and institutional electrical distribution systems requiring a 225 amp, two-pole molded case circuit breaker. It is suitable for installation in compatible panelboards, switchboards, motor control equipment, and other power distribution systems designed for Eaton Series C ED-frame breakers. Whether replacing an existing breaker during scheduled maintenance or restoring service after a component failure, the ED2225 helps maintain the original system design, electrical ratings, and compatibility while providing dependable overcurrent protection for compatible applications.
