ED2200L - 200Amp Circuit Breaker

ED2200L - 200Amp Circuit Breaker

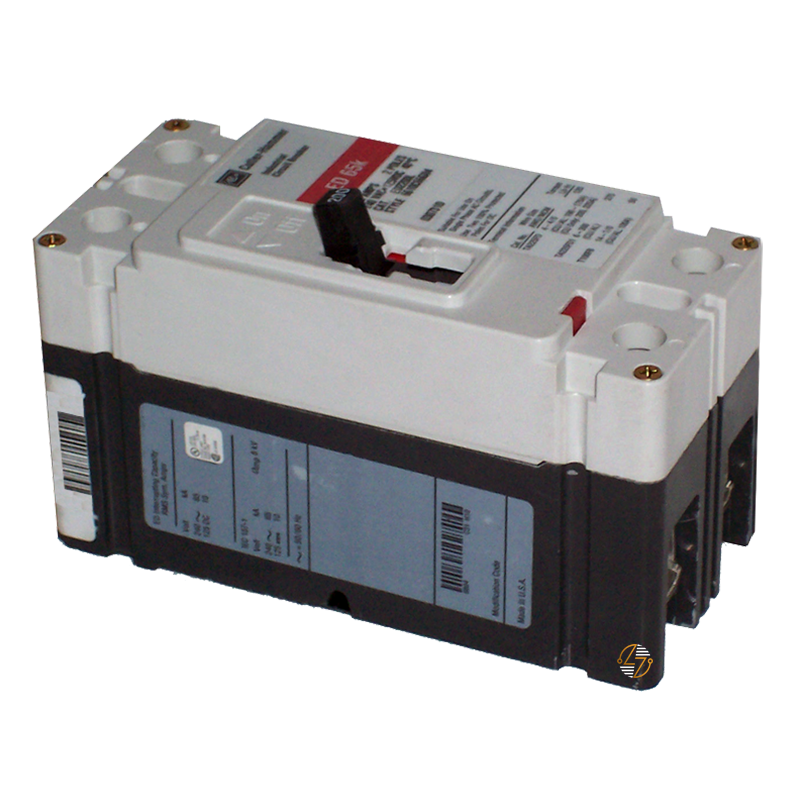

The Eaton ED2200L Series C Complete Molded Case Circuit Breaker is built to provide dependable circuit protection in compatible commercial and industrial electrical systems. If you're replacing an existing Eaton Series C ED-frame breaker, this 200 amp, 2-pole molded case circuit breaker is designed as a form, fit, and functional replacement that helps maintain your system's original electrical specifications and compatibility. Its T186 thermal-magnetic trip mechanism responds to overloads and short circuits to help protect connected equipment and electrical circuits during everyday operation. Rated for 240 VAC, 125 VDC, and capable of interrupting up to 65 kAIC at 240 VAC, the ED2200L is well suited for demanding power distribution applications where matching the original breaker's ratings is essential.

Key Features and Benefits

• Designed as a form, fit, and functional replacement for compatible Eaton Series C ED-frame circuit breakers
• 200 amp continuous current rating
• Two-pole molded case circuit breaker
• Rated for 240 VAC and 125 VDC applications
• 65 kAIC interrupt rating at 240 VAC
• T186 thermal-magnetic trip unit helps protect against overloads and short circuits
• Complete breaker with F-frame construction
• Line and load terminals for compatibility with designated installations
• Suitable for 50/60 Hz electrical systems
• Built to last for dependable service in compatible electrical distribution equipment

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2200L

• Product Type: Complete Molded Case Circuit Breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Frame Type: Complete Breaker

• Amperage Rating: 200 A

• Number of Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency: 50–60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186 Thermal-Magnetic

• Terminal Type: Line and Load

• Dimensions: 3.38 in (L) × 2.75 in (W) × 6.00 in (H)

• Weight: 2.9 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements
• Covered by Eaton's standard warranty in accordance with the applicable Eaton Selling Policy


Where It Works Best

The Eaton ED2200L is commonly used in compatible commercial, industrial, and institutional electrical distribution systems requiring a 200 amp, two-pole molded case circuit breaker. It is suitable for installation in compatible panelboards, switchboards, control panels, and other power distribution equipment designed for Eaton Series C ED-frame breakers. Whether replacing an existing circuit breaker during scheduled maintenance or restoring service after a component failure, the ED2200L helps maintain the original system design, electrical ratings, and compatibility while providing dependable overcurrent protection for compatible applications.
