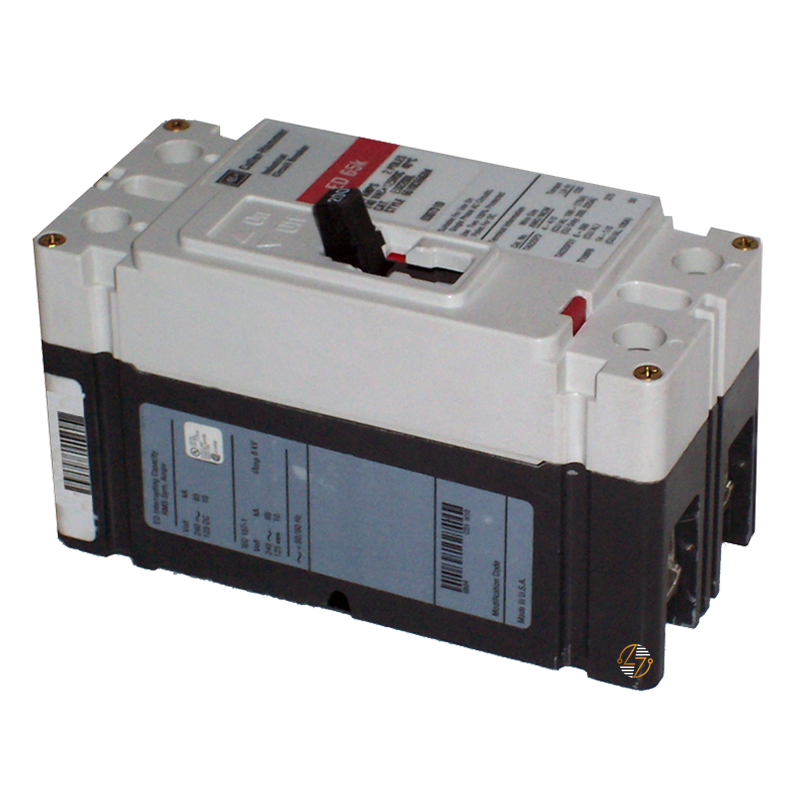

ED2175L - 175Amp Circuit Breaker

ED2175L - 175Amp Circuit Breaker

When you need a dependable replacement for a compatible Eaton electrical distribution system, the Eaton ED2175L Series C Complete Molded Case Circuit Breaker is built to deliver the protection your equipment was originally designed to use. This 175 amp, two-pole molded case circuit breaker is engineered as a form, fit, and functional replacement for compatible Eaton Series C ED-frame applications, making it an excellent choice for maintenance, repairs, and keeping existing electrical systems operating as intended.

Designed to protect circuits from overloads and short circuits, the ED2175L features a T186 thermal-magnetic trip unit along with a 65 kAIC interrupt rating at 240 VAC, helping safeguard electrical equipment in demanding commercial and industrial environments.

Key Features and Benefits

• Designed as a form, fit, and functional replacement for compatible Eaton Series C ED-frame circuit breakers
• 175 amp continuous current rating
• Two-pole molded case circuit breaker
• Rated for 240 VAC and 125 VDC applications
• 65 kAIC interrupt rating at 240 VAC
• T186 thermal-magnetic trip unit provides overload and short-circuit protection
• Complete breaker with F-frame construction
• Line and load terminals for compatibility with designated installations
• Suitable for 50/60 Hz electrical systems
• Built to last for dependable operation in compatible power distribution equipment

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2175L

• Product Type: Complete Molded Case Circuit Breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Amperage Rating: 175 A

• Number of Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency: 50/60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186

• Terminal Type: Line and Load

• Dimensions: 3.38 in (L) × 2.75 in (W) × 6.00 in (H)

• Weight: 2.9 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements
• Covered by Eaton's standard warranty in accordance with the applicable Eaton Selling Policy


Where It Works Best

The Eaton ED2175L is commonly used in compatible commercial, industrial, and institutional electrical distribution systems that require a 175 amp, two-pole molded case circuit breaker. It is suitable for installation in compatible panelboards, switchboards, control panels, and other power distribution equipment designed for Eaton Series C ED-frame breakers. Whether replacing an existing breaker during routine maintenance or restoring equipment to service after an unexpected failure, the ED2175L helps preserve the original system design, electrical ratings, and compatibility while providing dependable overcurrent protection for compatible applications.
