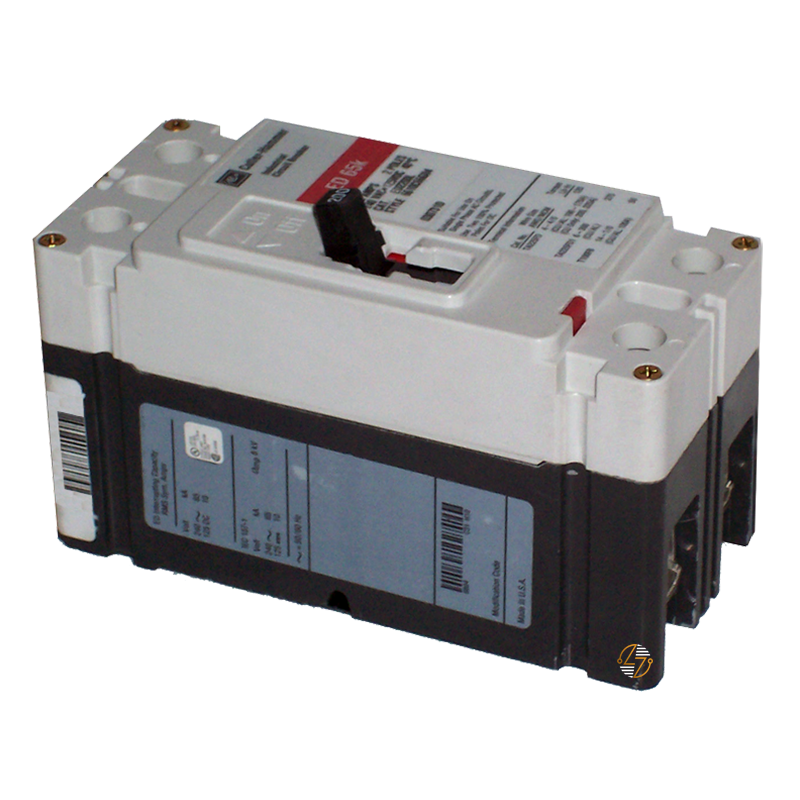

ED2150L - 150Amp Circuit Breaker

ED2150L - 150Amp Circuit Breaker

Keeping your electrical system running safely and efficiently starts with choosing the right replacement breaker. The Eaton ED2150L Series C Complete Molded Case Circuit Breaker is engineered as a form, fit, and functional replacement for compatible Eaton Series C ED-frame applications, making it a reliable solution for maintenance, repairs, and system upgrades. With a 150-amp rating, two-pole configuration, and a 65 kAIC interrupt rating at 240 VAC, this breaker delivers dependable protection against overloads and short circuits while maintaining system compatibility.

Built on Eaton’s trusted F-frame platform, this breaker is designed for durability and consistent performance in demanding environments. It is widely used in commercial, industrial, and institutional electrical distribution systems where maintaining original specifications and reliable protection is critical.

Key Features and Benefits

• Designed as a form, fit, and functional replacement for compatible Eaton Series C ED-frame circuit breakers
• 150 amp continuous current rating
• Two-pole molded case circuit breaker
• Rated for 240 VAC and 125 VDC electrical systems
• 65 kAIC interrupt rating at 240 VAC
• T186 thermal-magnetic trip unit for overload and short-circuit protection
• Complete breaker with F-frame construction
• Line and load terminal configuration for compatible installations
• Suitable for 50/60 Hz applications
• Built for long-lasting, dependable performance in electrical distribution systems

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2150L

• Product Type: Complete Molded Case Circuit Breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Amperage Rating: 150 A

• Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency: 50/60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186

• Terminal Type: Line and Load

• Dimensions: 3.38 in (L) × 2.75 in (W) × 6.00 in (H)

• Weight: 2.9 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements
• Covered by Eaton's standard warranty in accordance with the applicable Eaton Selling Policy


Where It Works Best

The Eaton ED2150L is commonly installed in compatible commercial, industrial, and institutional electrical distribution systems that require a 150 amp, two-pole molded case circuit breaker. It is suitable for use in compatible panelboards, switchboards, control panels, and other power distribution equipment designed for Eaton Series C ED-frame breakers. Whether used for routine maintenance or emergency replacement, the ED2150L helps maintain system integrity, ensuring consistent performance and reliable overcurrent protection in compatible applications.
