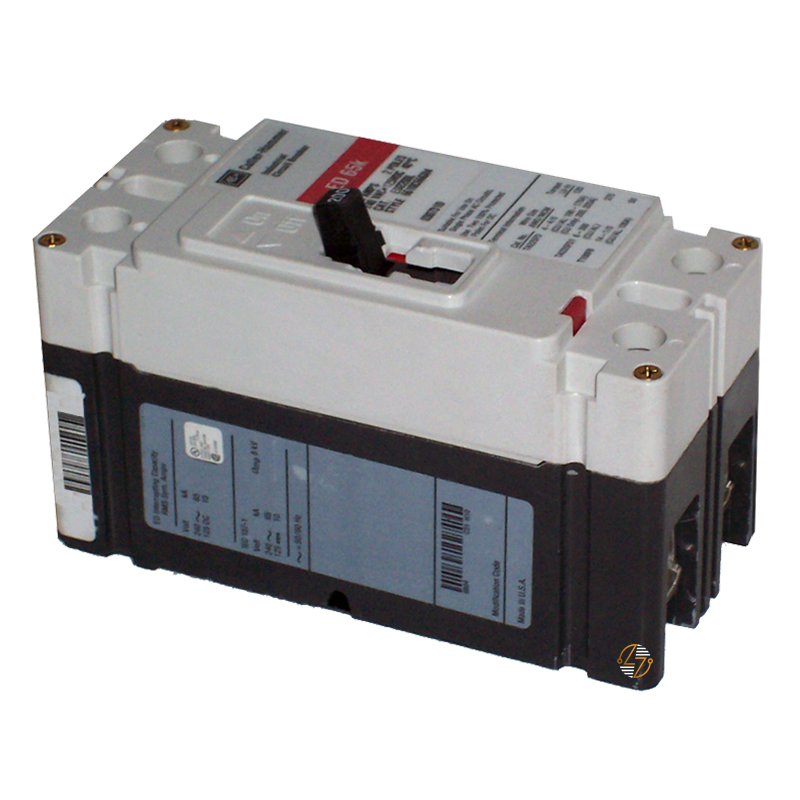

ED2150 - 150Amp Circuit Breaker

ED2150 - 150Amp Circuit Breaker

When you're maintaining an existing electrical distribution system, selecting the correct replacement breaker is essential for keeping everything operating as intended. The Eaton ED2150 Series C Complete Molded Case Circuit Breaker is designed as a form, fit, and functional replacement for compatible Eaton Series C equipment, making it a dependable choice for repairs, routine maintenance, and replacement projects. Rated at 150 amps with a two-pole configuration, this molded case circuit breaker provides overcurrent protection for systems operating at 240 VAC or 125 VDC. Equipped with a T186 trip unit, line and load terminals, and a 65 kAIC interrupt rating at 240 VAC, the ED2150 helps protect electrical circuits from overloads and short circuits while maintaining compatibility with existing equipment. Built with Eaton's F-frame design and made to last, this breaker delivers the specifications needed to support commercial, industrial, and institutional electrical systems without requiring modifications to the original installation.

Key Features and Benefits

• Designed as a form, fit, and functional replacement for compatible Eaton Series C systems
• 150 amp continuous current rating
• Two-pole molded case circuit breaker
• Rated for 240 VAC and 125 VDC applications
• 65 kAIC interrupt rating at 240 VAC
• T186 thermal-magnetic trip unit for overload and short-circuit protection
• Complete ED-frame circuit breaker with F-frame construction
• Line and load terminal configuration for compatible installations
• Suitable for 50/60 Hz electrical systems
• Built to last for dependable operation in compatible electrical distribution equipment

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2150

• Product Type: Complete Molded Case Circuit Breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Amperage Rating: 150 A

• Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency: 50/60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186

• Terminal Type: Load

• Dimensions: 7.3 in (L) × 2.75 in (W) × 6.0 in (H)

• Weight: 2.6 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements
• Covered by Eaton's standard warranty in accordance with the applicable selling policy


Where It Works Best

The Eaton ED2150 is commonly used in compatible commercial, industrial, and institutional electrical distribution systems that require a 150 amp, two-pole molded case circuit breaker. It is suitable for installation in compatible panelboards, switchboards, control panels, and other power distribution equipment designed for Eaton Series C ED-frame breakers. Whether replacing an existing breaker during scheduled maintenance or restoring service after a component failure, the ED2150 provides the correct ratings, configuration, and compatibility needed to help maintain the original electrical system design.
