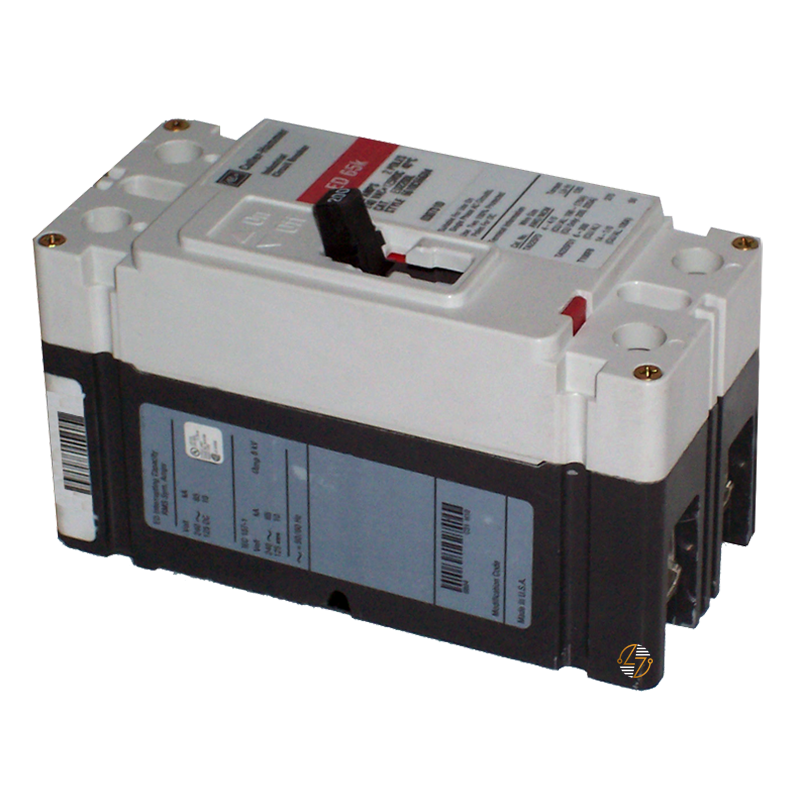

ED2125 - 125Amp Circuit Breaker

ED2125 - 125Amp Circuit Breaker

Upgrade your electrical system with the Eaton ED2125 Series C molded case circuit breaker, engineered for optimal performance and reliability. The ED2125 circuit breaker is a robust two-pole solution designed to handle a 125-amp current at 240 VAC or 125 VDC, making it ideal for commercial and industrial applications. Its fixed thermal and magnetic trip mechanisms provide consistent protection against overloads and short circuits, ensuring your equipment's safety and longevity.

Key Features and Benefits:

• High Interrupt Capacity: With a 65 kAIC rating at 240 VAC, this circuit breaker effectively interrupts high fault currents, minimizing damage and downtime.
• Fixed Thermal and Magnetic Trip: Ensures precise and dependable protection, reducing the risk of electrical fires and equipment damage.
• Compact Design: Measuring just 6 inches in height and 2.75 inches in width, the ED2125 is easy to install in various panel configurations, saving valuable space.
• Durability: The robust molded case provides excellent resistance to impact and harsh environmental conditions, enhancing the breaker's lifespan.

Technical Specifications:

• Amperage Rating: 125 A
• Voltage Rating: 240 VAC, 125 VDC
• Trip Type: Fixed thermal, fixed magnetic
• Frame Type: F-frame, complete breaker
• Interrupt Rating: 65 kAIC at 240 VAC
• Frequency Rating: 50/60 Hz
• Number of Poles: Two-pole
• Dimensions: Length/Depth: 3.38 in, Height: 6 in, Width: 2.75 in
• Weight: 2.9 lb

Material Compliance and Certifications:

• UL Listed: Ensuring the ED2125 meets rigorous safety standards for electrical components.
• Material Compliance: Compliant with industry standards for safe and environmentally responsible use.

Suitability:

• The ED2125 is perfect for a wide range of applications, including commercial buildings, industrial plants, and machinery protection. Its high interrupt capacity and reliable trip mechanisms make it an excellent choice for safeguarding your electrical systems against faults and overloads.
