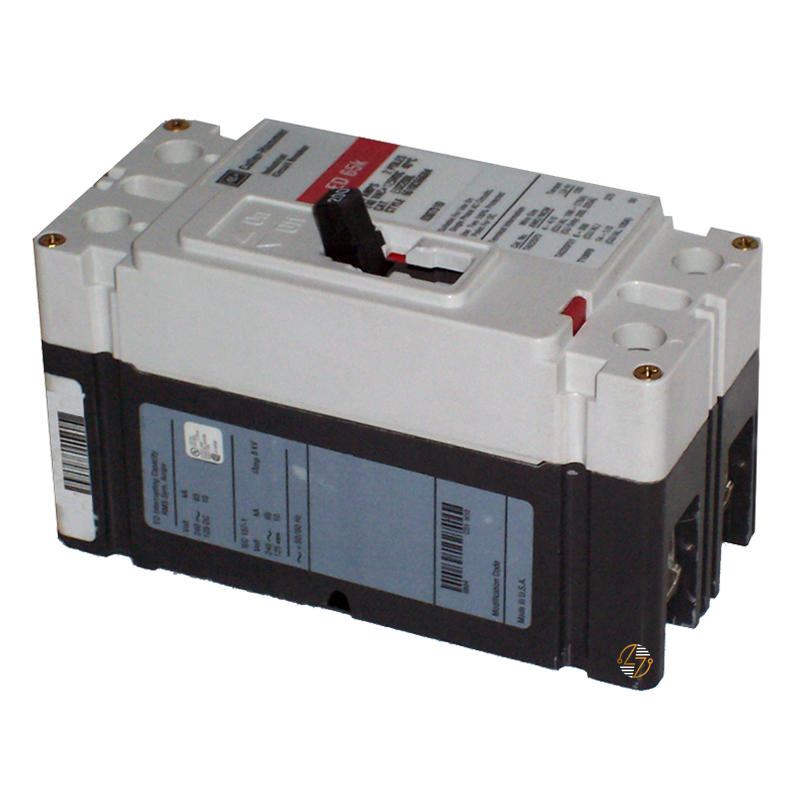

ED2110L - 110Amp Circuit Breaker

ED2110L - 110Amp Circuit Breaker

If you're replacing a compatible Eaton Series C ED-frame circuit breaker, the Eaton ED2110L Complete Molded Case Circuit Breaker offers the form, fit, and electrical ratings needed to help keep your existing power distribution system operating as intended. Designed for 110-amp applications, this 2-pole molded case circuit breaker is rated for 240 VAC and 125 VDC and features a 65 kAIC interrupt rating at 240 VAC for dependable overcurrent protection. Whether you're performing routine maintenance, replacing a failed breaker, or servicing existing commercial or industrial equipment, the ED2110L is built to last and helps maintain the original configuration of your electrical system without requiring modifications.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• Catalog Number: ED2110L
• 110 amp continuous current rating
• Two-pole configuration
• Rated for 240 VAC and 125 VDC
• 65 kAIC interrupt rating at 240 VAC
• T186 trip unit for overload and short-circuit protection
• Complete ED-frame molded case circuit breaker
• Line and load terminals for compatible installation requirements
• F Frame construction
• 50/60 Hz frequency rating
• Built to last for long-term service in compatible electrical systems
• Designed to provide the proper form, fit, and functional replacement for compatible Eaton Series C circuit breakers

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2110L

• Product Type: Molded Case Circuit Breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Frame Type: Complete Breaker

• Amperage Rating: 110 A

• Number of Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency Rating: 50/60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186

• Terminal Configuration: Line and Load

• Dimensions (L × W × H): 3.38 in × 2.75 in × 2.75 in

• Weight: 2.9 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements.
• Covered by Eaton's standard warranty in accordance with the applicable Eaton Selling Policy.


Where It Works Best

The Eaton ED2110L is well suited for commercial buildings, industrial facilities, manufacturing plants, panelboards, switchboards, control panels, and other electrical distribution equipment requiring a 110 amp, two-pole molded case circuit breaker with a 65 kAIC interrupt rating. It is intended as a compatible replacement for Eaton Series C equipment where maintaining the original electrical ratings, frame size, and terminal configuration is important.
