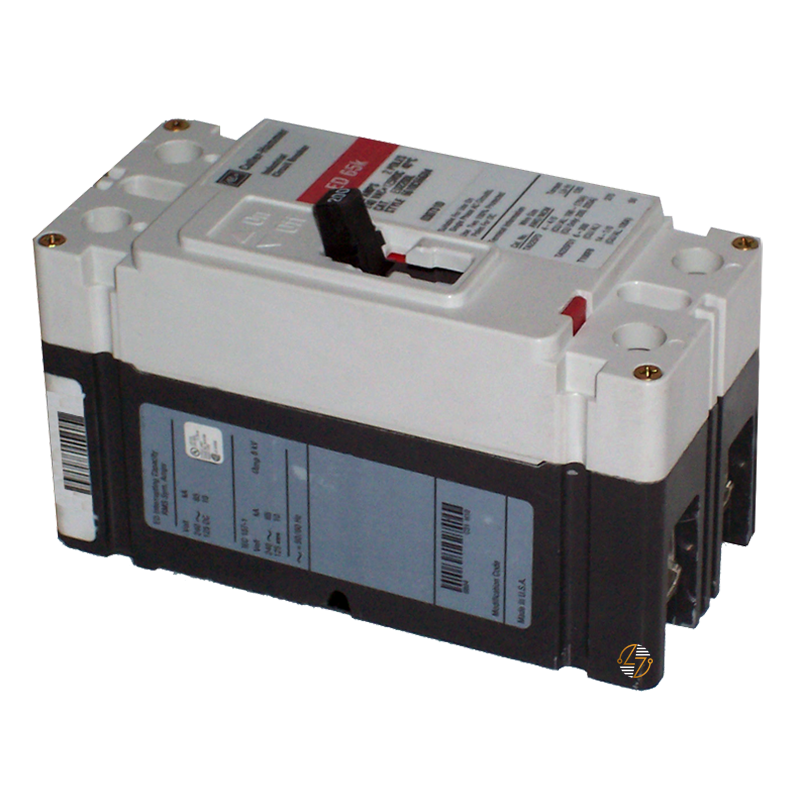

ED2100L - 100Amp Circuit Breaker

ED2100L - 100Amp Circuit Breaker

Finding the right replacement circuit breaker is about more than matching the amp rating—it also means choosing a breaker that fits your existing equipment and meets the original electrical specifications. The Eaton ED2100L Series C Complete Molded Case Circuit Breaker is designed for exactly that purpose. Built for compatible Eaton Series C electrical systems, this 100 amp, two-pole molded case circuit breaker provides dependable protection against overloads and short circuits while delivering the proper form, fit, and function for existing installations.

Whether you're servicing electrical distribution equipment in a commercial building, industrial facility, or manufacturing environment, this breaker is built to last and helps you maintain your existing system with confidence.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• Catalog Number: ED2100L
• 100 amp continuous current rating
• Two-pole configuration
• Rated for 240 VAC and 125 VDC
• 65 kAIC interrupt rating at 240 VAC
• T186 trip unit for overload and short-circuit protection
• Complete ED-frame molded case circuit breaker
• Line and load terminal configuration
• 50/60 Hz frequency rating
• Built to last for long-term service in compatible electrical systems
• Designed to provide the proper form, fit, and function when replacing compatible Eaton Series C breakers

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2100L

• Product Type: Complete molded case circuit breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Frame Type: Complete breaker

• Amperage Rating: 100 A

• Number of Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency: 50/60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186

• Terminal Configuration: Line and load

• Dimensions (L × W ×H): 3.38 in × 2.75 in × 3.50 in

• Weight: 2.9 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements.
• Covered by Eaton's standard warranty in accordance with the applicable Eaton Selling Policy.


Where It Works Best

The Eaton ED2100L is commonly used in commercial buildings, industrial facilities, manufacturing plants, electrical distribution equipment, switchboards, and panelboards requiring a 100 amp, two-pole molded case circuit breaker with a 65 kAIC interrupt rating. It is intended for use as a compatible replacement in Eaton Series C systems where maintaining the original electrical ratings, frame style, and terminal configuration is important for continued operation.
