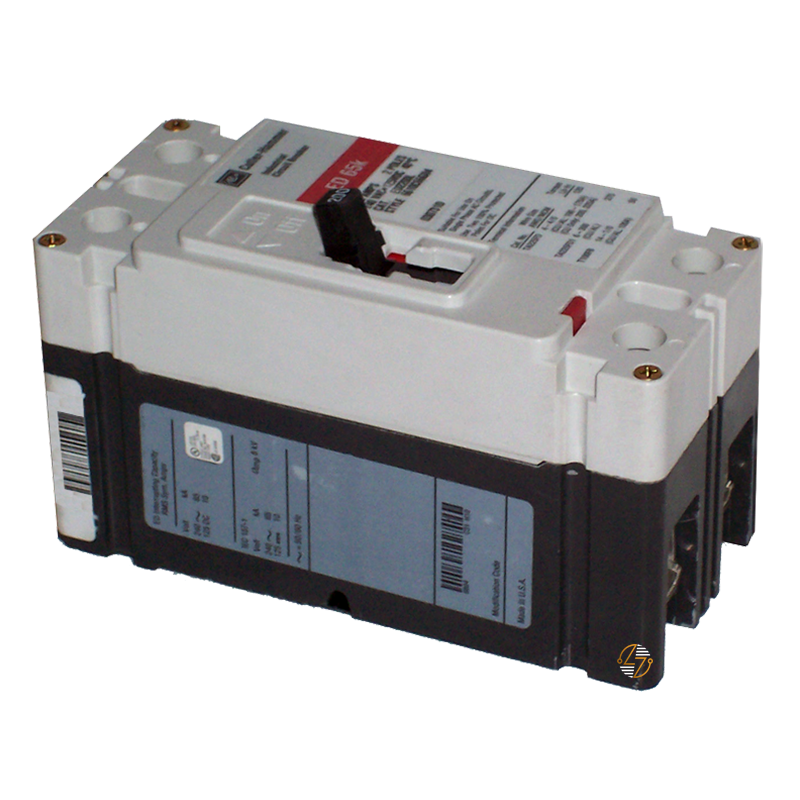

ED2100 - 100Amp Circuit Breaker

ED2100 - 100Amp Circuit Breaker

When you need a compatible replacement circuit breaker that matches the original electrical specifications, the Eaton ED2100 Series C Complete Molded Case Circuit Breaker delivers the form, fit, and function required to help keep your electrical system operating as intended. Rated at 100 amps with a two-pole design, this breaker is built to protect electrical circuits from overloads and short circuits in commercial and industrial applications. Its 65 kAIC interrupt rating at 240 VAC makes it suitable for systems where higher available fault currents are present, while the T186 trip unit provides dependable overcurrent protection during everyday operation.

Designed as a complete ED-frame molded case circuit breaker, the ED2100 fits compatible Eaton Series C installations where maintaining the original breaker configuration is important.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• Catalog Number: ED2100
• 100 amp continuous current rating
• Two-pole configuration
• Rated for 240 VAC and 125 VDC
• 65 kAIC interrupt rating at 240 VAC
• T186 trip unit for overcurrent and short-circuit protection
• Complete ED-frame molded case breaker
• Load-side terminal configuration
• 50/60 Hz frequency rating
• Built to last for long-term service in compatible electrical systems
• Designed to provide the correct form, fit, and function for compatible Eaton Series C applications

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: ED2100

• Product Type: Complete molded case circuit breaker

• Circuit Breaker Type: ED

• Frame: F Frame

• Frame Type: Complete breaker

• Amperage Rating: 100 A

• Number of Poles: 2

• Voltage Rating: 240 VAC, 125 VDC

• Frequency: 50/60 Hz

• Interrupt Rating: 65 kAIC at 240 VAC

• Trip Type: T186

• Terminal Configuration: Load side

• Dimensions (L × W × H): 3.38 in × 2.75 in × 6.00 in

• Weight: 2.9 lb


Material Compliance and Certifications

• UL Listed
• Manufactured to meet applicable UL safety requirements.
• Covered by Eaton's standard warranty in accordance with the applicable Eaton Selling Policy.


Where It Works Best

The Eaton ED2100 is well suited for commercial buildings, industrial facilities, manufacturing plants, control panels, panelboards, and electrical distribution equipment requiring a 100 amp, two-pole molded case circuit breaker with a 65 kAIC interrupt rating. It is commonly used as a form, fit, and function replacement in compatible Eaton Series C systems, helping maintain the original electrical ratings and equipment configuration without unnecessary modifications.
