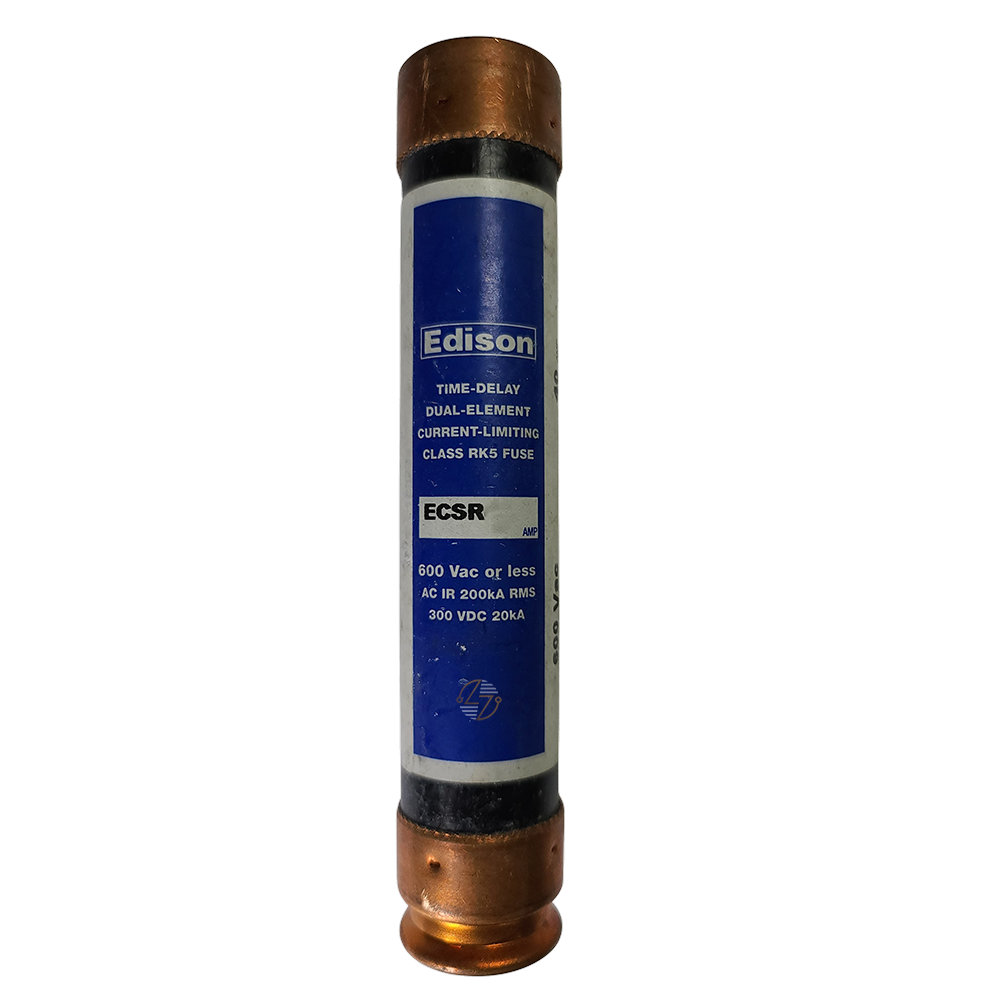

ECSR35 - 35Amp Fuse

ECSR35 Eaton Edison 35A Class RK5 Fuse | 600V, 200kAIC, Dual Element, Finger Safe

The ECSR35 Eaton Edison fuse is a 35-amp Class RK5 dual-element fuse designed for electrical systems that need dependable overcurrent protection without unnecessary interruptions. It's a common choice for commercial and industrial applications, especially in feeder circuits, motor control equipment, and distribution panels where keeping equipment running reliably is just as important as protecting it.

One thing that makes the ECSR35 a practical option is its time-delay, dual-element design. Electrical equipment like motors and transformers often draws a brief surge of current when it starts. That's completely normal, but it can cause standard fuses to open when they don't need to. Whether you're replacing an existing RK5 fuse or maintaining an established electrical system, it offers the performance and compatibility professionals expect.

Key Features and Benefits

• 35A Class RK5 dual-element fuse for commercial and industrial applications
• Time-delay design helps prevent nuisance openings during equipment startup
• 600V AC rating for a wide range of power distribution systems
• 200kA interrupting rating for high available fault current applications
• Dual-element construction provides overload and short-circuit protection
• Finger-safe design for safer installation and servicing
• Non-indicating fuse design
• Fits standard Class RK5 fuse holders and fuse blocks
• Suitable for coordinated electrical protection systems
• Designed for dependable long-term performance

Technical Specifications

• Catalog Number: ECSR35
• Product Type: Fuse
• Manufacturer Series: Eaton Edison ECSR
• Class: RK5
• Amperage Rating: 35 Amps
• Voltage Rating: 600V AC
• Interrupt Rating: 200 kAIC
• Element Type: Dual-element
• Response Time: 10 seconds at 500% overload
• Fuse Indicator: Non-indicating
• Special Features: Finger-safe construction
• Dimensions: 11.63 in (L) × 2.34 in (W) × 2.34 in (H)
• Weight: 2.35 lb
• Packaging Type: Standard

Material Compliance and Certifications

The ECSR35 is CE marked and manufactured to meet recognized safety and performance requirements for electrical protection devices.

Where It Works Best

• Commercial electrical distribution panels
• Industrial power distribution systems
• Motor control centers (MCCs)
• Feeder circuit protection
• Transformer protection
• HVAC equipment and motor-driven systems
• Manufacturing and processing facilities
• Replacement of existing Class RK5 dual-element fuses
