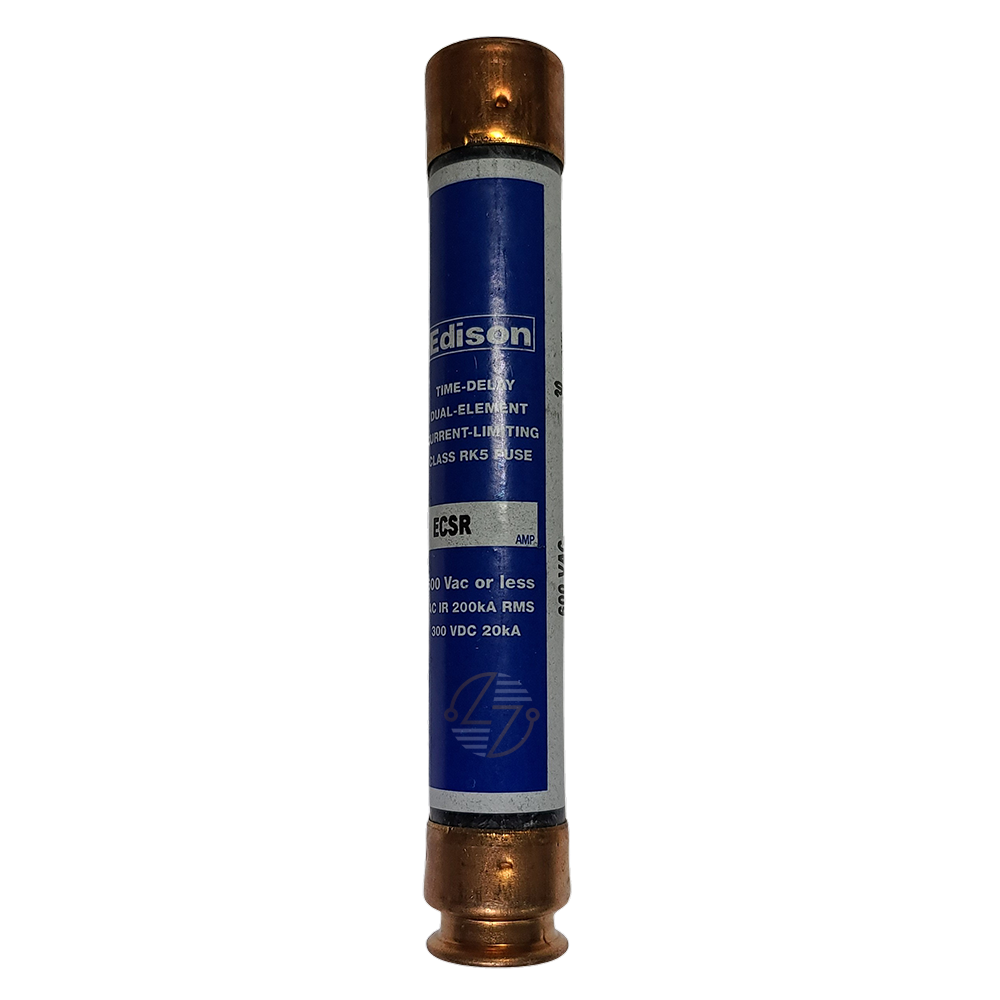

ECSR17.5 - 17.5Amp Fuse

ECSR17.5 - 17.5Amp Fuse

Electrical systems rarely operate under perfectly steady conditions. Motors kick on, transformers energize, and equipment cycles throughout the day—each creating brief spikes in current that are completely normal. The Eaton Edison ECSR17.5 Fuse is designed to handle those everyday fluctuations without overreacting, helping your system stay up and running when it matters most.

Rated for 600 volts with a 200 kAIC interrupt capacity, the ECSR17.5 is a dependable choice for a wide range of commercial and industrial applications. You’ll often see it used in control panels, HVAC systems, motor protection circuits, and other equipment where consistent performance is key. It’s especially useful in setups where equipment frequently starts and stops throughout the day.

What makes this fuse stand out is its dual-element design. This feature gives it a built-in time delay, allowing it to tolerate temporary overloads while still reacting quickly when conditions become unsafe. It’s a simple but effective way to protect your system without unnecessary disruptions.

Key Features and Benefits

• 17.5 Amp Class RK5 time-delay fuse for low-amperage circuit protection
• Dual-element design helps manage short-term inrush currents during startup
• Reduces nuisance fuse openings caused by normal equipment cycling
• 600V rating suitable for industrial and commercial applications
• 200 kAIC interrupt rating for dependable fault protection
• Time-delay (super lag) performance ideal for motors and transformers
• Non-current limiting design for general-purpose use
• Commonly used in control circuits and light industrial equipment
• Helps maintain consistent operation in systems with frequent cycling

Technical Specifications

• Manufacturer: Eaton
• Series: Edison ECSR
• Catalog Number: ECSR17.5
• Product Type: Fuse
• Fuse Class: RK5
• Amperage Rating: 17.5 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Response Time: 10 seconds at 500% overload
• Special Features: Super lag, time-delay, non-current limiting
• Number of Elements: Dual-element
• Fuse Indicator: Non-indicating
• Packaging Type: Standard
• Dimensions: 9.63 in L × 1.61 in W × 1.61 in H
• Weight: 1.5 lb
• Compliance: CE Marked

Material Compliance and Certifications

The ECSR17.5 is CE Marked and manufactured to meet Eaton’s strict quality standards. It’s designed for use in properly rated electrical systems and should always be installed according to applicable electrical codes and best practices.

Where It Works Best

• Industrial control circuits
• HVAC control systems and components
• Motor starters and small motor protection
• Electrical distribution panels
• OEM machinery and equipment
• Transformer secondary control circuits
• Commercial systems with lighter electrical loads
