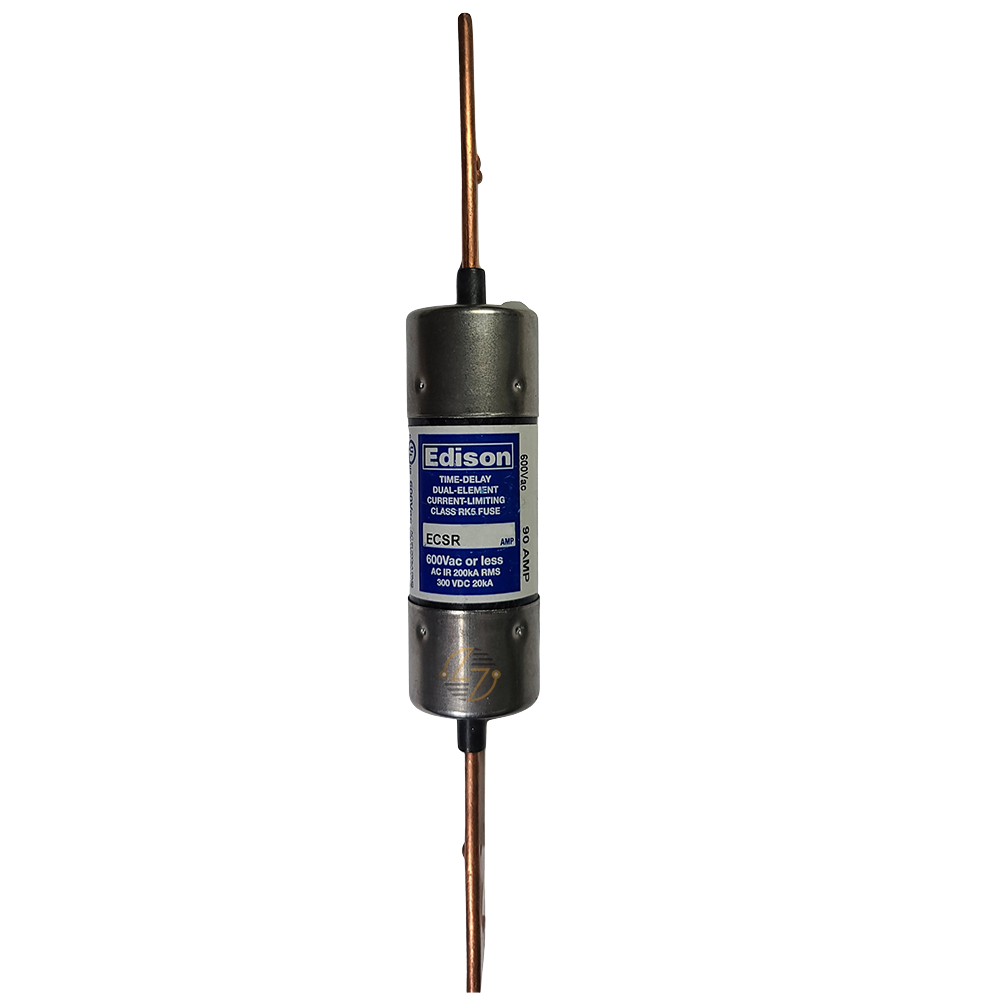

ECSR100 - 100Amp Fuse

ECSR100 - 100Amp Fuse

If you’ve worked with electrical systems for any length of time, you know they don’t always behave in a perfectly steady way. Motors kick on, transformers energize, HVAC systems cycle, and equipment ramps up throughout the day. All of that creates short bursts of current that are completely normal—but can still cause problems if your protection isn’t designed to handle it. That’s where the Eaton Edison ECSR100 Fuse really stands out.

In practical terms, that means fewer nuisance fuse blows, less downtime, and fewer interruptions to your operation. Whether you're managing a facility or maintaining equipment, having a fuse that works with your system—not against it—can make a noticeable difference.

Its dual-element design is what makes all of this possible. It helps distinguish between normal startup conditions and actual fault situations, so your system keeps running when it should—and shuts down only when it needs to.

Key Features and Benefits

• 100 Amp Class RK5 time-delay fuse for industrial and commercial power circuits
• Super lag design helps manage short-term inrush current during startup
• Reduces nuisance fuse openings and avoids unnecessary interruptions
• 600V rating suitable for a wide range of electrical systems
• 200 kAIC interrupt rating for strong fault-current protection capability
• Dual-element construction supports controlled time-delay performance
• Commonly used in HVAC, OEM machinery, and motor control applications
• Helps maintain system uptime in real operating conditions
• Non-indicating design for simple field replacement

Technical Specifications

• Manufacturer: Eaton
• Series: Edison ECSR
• Catalog Number: ECSR100
• Product Type: Fuse
• Fuse Class: RK5
• Amperage Rating: 100 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Response Time: 10 seconds at 500% overload
• Special Features: Super lag, time lag, non-current limiting
• Number of Elements: Dual-element
• Fuse Indicator: Non-indicating
• Packaging Type: Standard
• Dimensions: 9.63 in L × 1.61 in W × 1.61 in H
• Weight: 1.5 lb
• Compliance: CE Marked

Material Compliance and Certifications

The ECSR100 is CE Marked and manufactured under Eaton’s established production standards. It’s designed for use in properly rated electrical systems and should always be installed in accordance with applicable electrical codes and best practices.

Where It Works Best

The ECSR100 is a great fit for higher-load systems where electrical demand changes throughout normal operation:

• Motor control centers (MCCs)
• HVAC and refrigeration systems
• Industrial automation equipment
• OEM machinery and production systems
• Electrical distribution panels
• Pump and compressor systems
• Commercial and light industrial power circuits
• Facility power distribution systems
