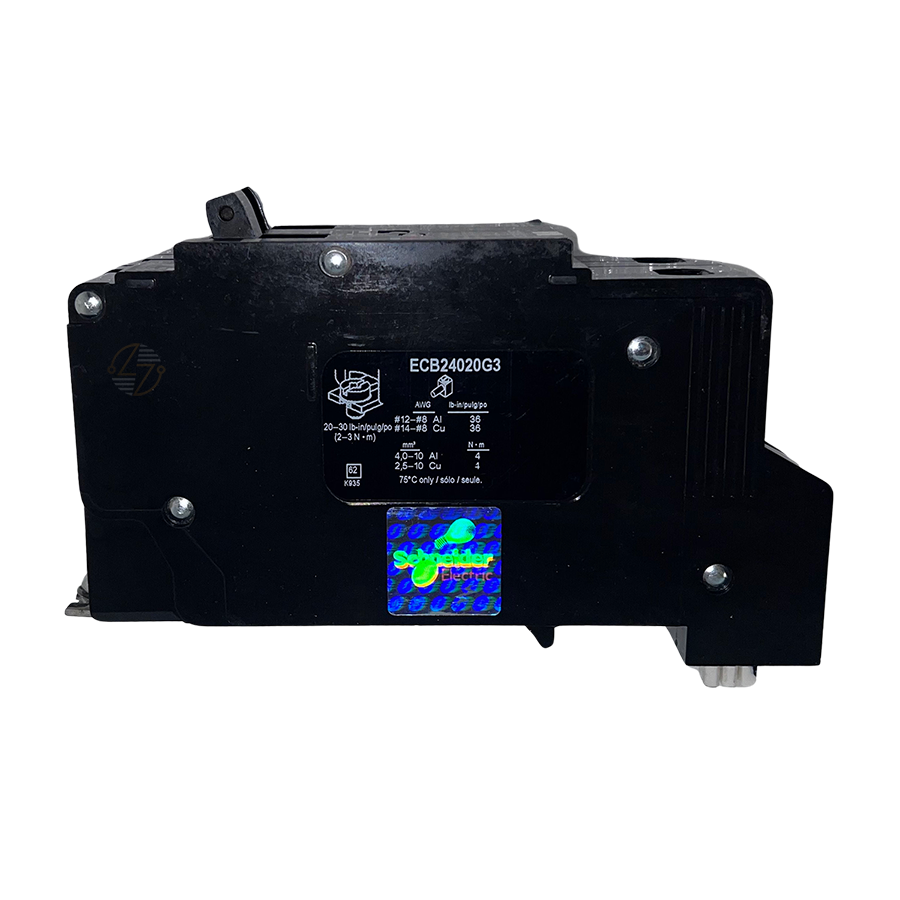

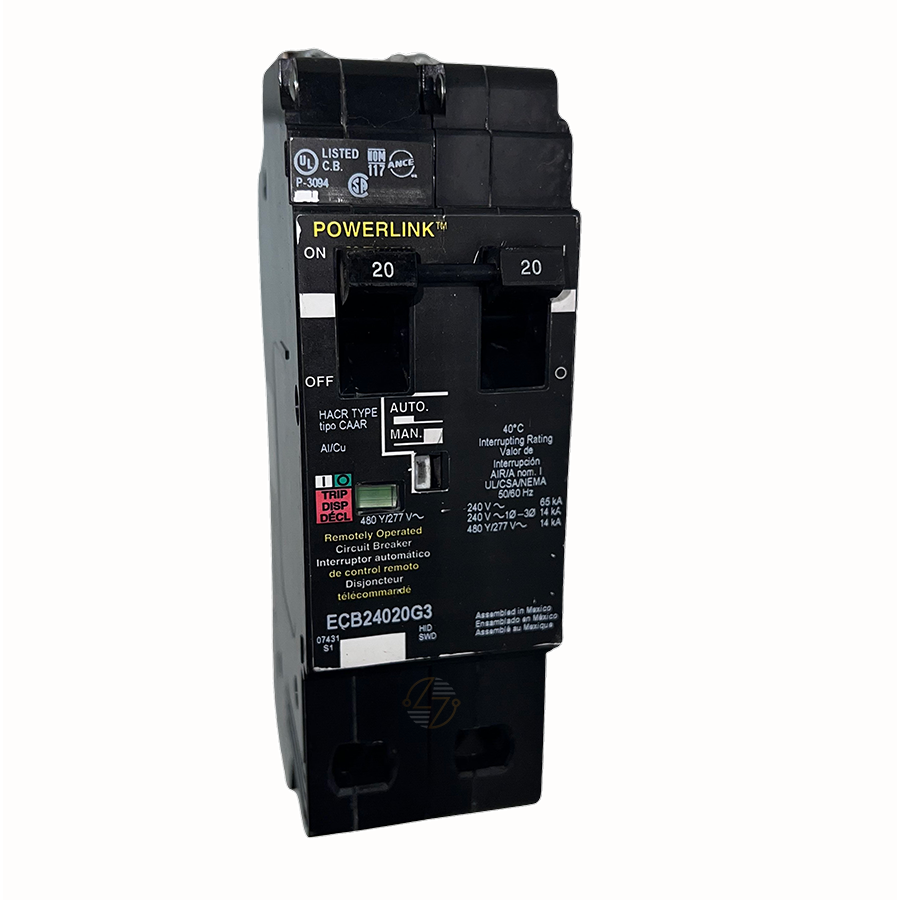

ECB24020G3 - 20A Circuit Breaker

ECB24020G3 20A Circuit Breaker

Introducing the ECB24020G3 PowerLink䋢 Circuit Breaker, an advanced two-pole thermal magnetic circuit breaker designed for unparalleled safety and performance. Engineered to meet the rigorous standards of PowerLink䋢 Intelligent panelboards, this circuit breaker is an essential component for both residential and commercial electrical systems. With a current capacity of 20 amperages and a voltage rating of 480Y/277 V AC, it ensures reliable operation for various applications, particularly HVAC systems, thanks to its HACR rating. Certified by the Underwriters Laboratory (UL) and CSA, the ECB24020G3 is synonymous with safety and compliance.

Key Features and Benefits:

• Advanced Technology: Equipped with thermal magnetic trip unit technology, providing both automatic and manual reset capabilities via a bimetallic strip.
• High Interrupt Rating: Boasts a 14 kA interrupt rating at 480Y/277 V AC and a 65 kA rating at 120/240 V AC, ensuring protection against high fault currents.
• Versatile Mounting: Designed for bolt-on mounting, simplifying installation and maintenance.
• Wide Compatibility: Compatible with AWG 10 to AWG 8 aluminium and AWG 12 to AWG 8 copper wire gauges, offering flexibility in various wiring configurations.

Technical Specifications:

• Range of Product: PowerLink
• Circuit Breaker Type: ECB-G3
• Current Capacity: 20 A
• Voltage Rating: 480Y/277 V AC
• Interrupt Rating: 14 kA at 480Y/277 V AC, 65 kA at 120/240 V AC
• Number of Poles: 2P
• Mounting Mode: Bolt-on
• Electrical Connection: Bolted connection
• Wire Gauge Compatibility: AWG 10...AWG 8 aluminium, AWG 12...AWG 8 copper
• Ambient Temperature for Operation: 104 å¡F (40 å¡C)

Material Compliance and Certifications:

• Certifications: The ECB24020G3 circuit breaker is UL Listed and CSA certified, ensuring it meets the highest safety and performance standards.
• Sustainability: Schneider Electric‰۪s Green Premium‰ã¢ label further guarantees best-in-class environmental performance, with compliance to the latest regulations and transparency on environmental impacts.

Suitability:

• Ideal for HVAC systems due to its HACR rating, the ECB24020G3 is perfect for applications requiring high reliability and safety. Its robust design and advanced features make it suitable for both residential and commercial use, providing peace of mind with every installation.
