E63A010 - 10Amp Motor Circuit Protector
E63A010 - 10Amp Motor Circuit Protector
Couldn't load pickup availability

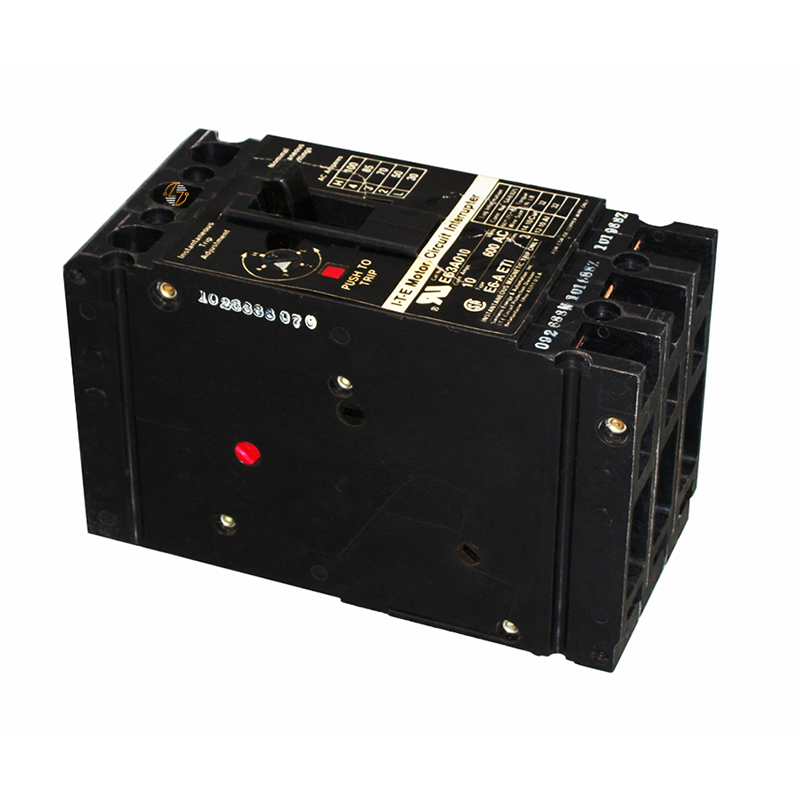

E63A010 - 10Amp Motor Circuit Protector
The Siemens ED63A010 Motor Circuit Protector is a premium solution for safeguarding motor-driven systems in industrial environments. This 3-pole, 10-amp device is part of Siemens' trusted Sentron series, designed to provide instantaneous magnetic-only protection, preventing nuisance tripping during motor startups while ensuring long-term reliability. The Siemens ED63A010 includes both line- and load-side terminals for straightforward installation, reducing downtime during replacements or new setups. Its robust design ensures reliable operation even under high interrupting capacity conditions.
Key Features and Benefits
- Instantaneous Magnetic Trip: Advanced settings allow for precise response to overcurrent conditions, with customizable trip settings: H = 100A, 4 = 85A, 3 = 70A, 2 = 50A, and L = 30A.
- Durable Frame Type E6-A ETI: Engineered for durability, reliability, and easy integration.
- Compact Dimensions: At just 3.00" (W) x 6.35" (L) x 3.92" (D), it fits seamlessly into various installations, saving valuable panel space.
-
Line and Load-Side Terminals Included: Simplifies installation and ensures secure connections.
Technical Specifications
-
Current Rating: 10 Amperes
-
Voltage Rating: 600VAC
-
Interrupting Capacity: 18kAIC at 600V, 25kAIC at 480V
-
Number of Poles: 3
-
Ship Weight: 5.38 lbs
- Frame Type: E6-A ETI
Material Compliance and Certifications
- Standards Compliance: Meets UL 489 and IEC 60947-2 standards for safety and performance.
-
RoHS Compliant: Ensures environmentally responsible manufacturing.
Suitability
- This motor circuit interrupter is specifically designed for industrial settings requiring instantaneous response to overcurrent situations while separately managing thermal overload protection.åÊIts magnetic-only functionality, combined with a wide range of trip settings, makes it ideal for motors with varying load demands.
