E43B035 - 35Amp Circuit Breaker

E43B035 - 35Amp Circuit Breaker

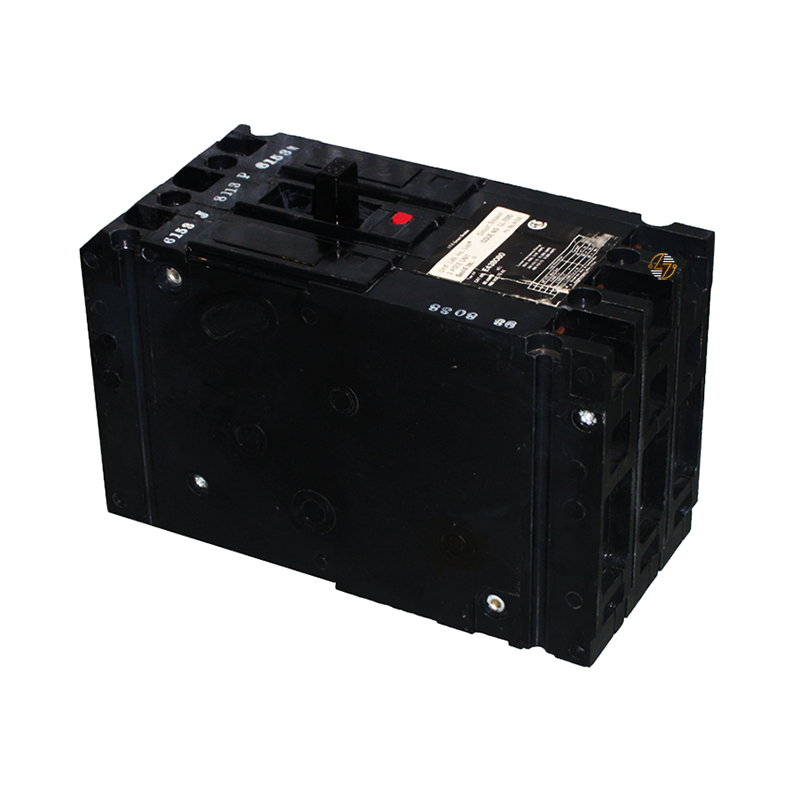

Enhance the safety and efficiency of your electrical systems with the Siemens E43B035 Circuit Breaker. This robust, low voltage Sentron molded case circuit breaker is equipped with a thermal-magnetic trip unit, ensuring reliable performance under various load conditions. Rated at 35A with a 3-pole configuration, this breaker offers a breaking capacity of 25kAIC at 240V, providing superior protection against overcurrent and short circuits.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: Ensures precise operation and reliable protection by automatically adjusting to the current load.
• Standard E43 Frame: Guarantees compatibility and ease of installation in standard electrical panels.
• High Breaking Capacity: Rated at 25kAIC at 240V, it offers robust protection against high fault currents.
• Load Lugs Only (LN1E100): Simplifies installation and maintenance with a wire range of 10 - 1/0AWG (CU/AL).

Technical Specifications:

• Current Rating: 35 Amps
• Poles: 3
• Breaking Capacity: 25kAIC at 240V
• Dimensions: 3 x 6.35 x 3.92 inches (W x H x D)
• Wire Range: 10 - 1/0 AWG (CU/AL)

Material Compliance and Certifications:

• UL 489 and IEC 60947-2: Meets international standards for safety and performance.
• RoHS Compliance: Adheres to the restriction of hazardous substances directive since July 1, 2006.
• WEEE Take-Back Obligation: Complies with the Waste Electrical and Electronic Equipment directive 2012/19/EU, ensuring environmentally friendly disposal.

Suitability:

• The Siemens E43B035 Circuit Breaker is ideal for use in commercial and industrial settings where reliable circuit protection is paramount. Its high breaking capacity and thermal-magnetic trip unit make it suitable for protecting electrical systems in manufacturing plants, commercial buildings, and other demanding environments.
