E43B025 - 25Amp Circuit Breaker

E43B025 - 25 Amp Circuit Breaker

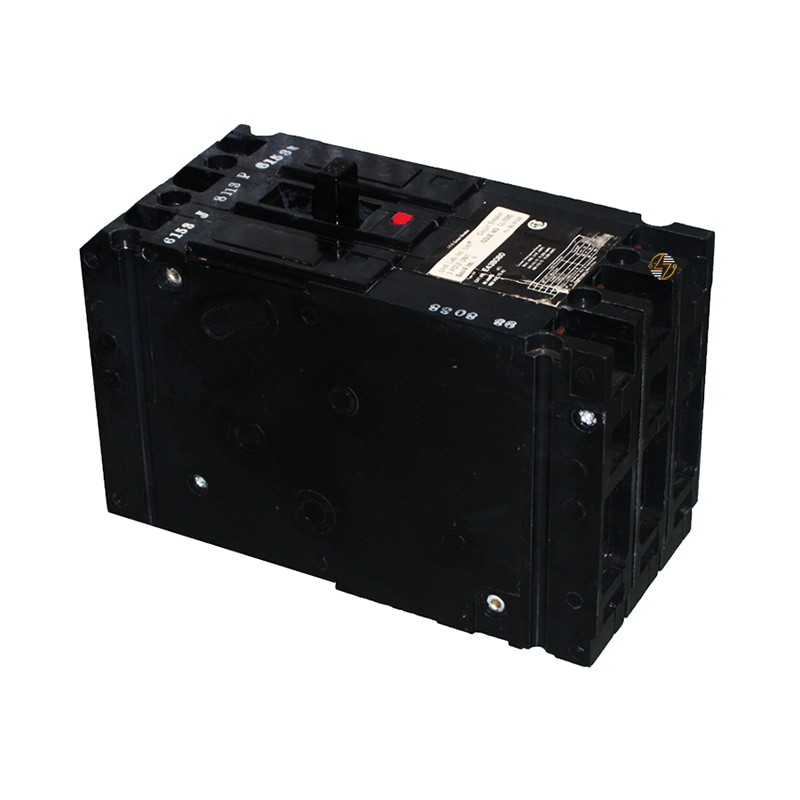

The E43B025 molded case circuit breaker is designed for use in electrical distribution systems that require a dependable 25-amp, 3-pole protective device within an E43 frame configuration. Built to provide proper circuit protection against overloads and short circuits, this breaker supports installations operating at up to 480VAC with an 18kA interrupting rating and 25kA at 240VAC. Its bolt-on mounting style helps ensure a secure mechanical and electrical connection inside compatible panelboards and switchboards. Rated for 40°C operation and HACR applications, the E43B025 is suitable for heating, air-conditioning, and refrigeration circuits where these ratings are required. The breaker includes load-side terminals, simplifying installation and helping maintain proper conductor connections. Designed for durability and consistent operation, this molded case circuit breaker provides the correct form, fit, and function replacement for equipment originally designed to use E43 frame breakers.

Key Features and Benefits

• 25 Amp Trip Rating – Provides reliable overcurrent protection for circuits requiring a 25A breaker.
• 3-Pole Configuration – Supports protection for three-phase electrical systems.
• Bolt-On Mounting – Designed to fasten securely into compatible panelboards and distribution equipment.
• E43 Frame Compatibility – Built to match the form and fit of other breakers within the E43 frame series.
• HACR Rated – Suitable for heating, air-conditioning, and refrigeration equipment circuits.
• Load-Side Terminals Included – Helps streamline installation and ensures proper conductor termination.
• Designed for Longevity – Built with durable components intended for long service life in appropriate applications.
• Thermal-Magnetic Protection – Helps safeguard electrical systems from overloads and short circuits.

Technical Specifications

• Part Number: E43B025

• Breaker Type: Molded Case Circuit Breaker

• Frame Type: E43

• Amperage Rating: 25 Amps

• Number of Poles: 3

• Interrupting Capacity:
  • 18kA @ 480VAC
  • 25kA @ 240VAC
• Mounting Type: Bolt-On

• Temperature Rating: 40°C

• HACR Rating: Yes

• Included Accessories: Load-side terminals

• Approximate Shipping Weight: 3.0 lbs

• Approximate Shipping Height: 6.35 inches


Material Compliance and Certifications

• Industry Standards: The E43B025 circuit breaker is manufactured to meet applicable industry standards for molded case circuit breakers used in low-voltage power distribution systems.
• HACR Rating Confirmation: Its HACR rating confirms suitability for circuits associated with heating, air-conditioning, and refrigeration equipment when installed according to applicable electrical codes.
• Proper Installation: Proper installation by qualified personnel helps ensure compliance with local electrical regulations and system requirements.

Where It Works Best

• Panelboards and switchboards designed for bolt-on E43 frame breakers
• Three-phase power distribution circuits requiring 25-amp protection
• HVAC and refrigeration equipment circuits where HACR ratings are specified
• Maintenance or replacement projects requiring matching form, fit, and electrical ratings for existing equipment
• When installed in compatible electrical systems, the E43B025 helps maintain proper circuit protection while preserving the original design and configuration of the distribution equipment.
