E42B100L - 100Amp Circuit Breaker

E42B100L - 100Amp Circuit Breaker

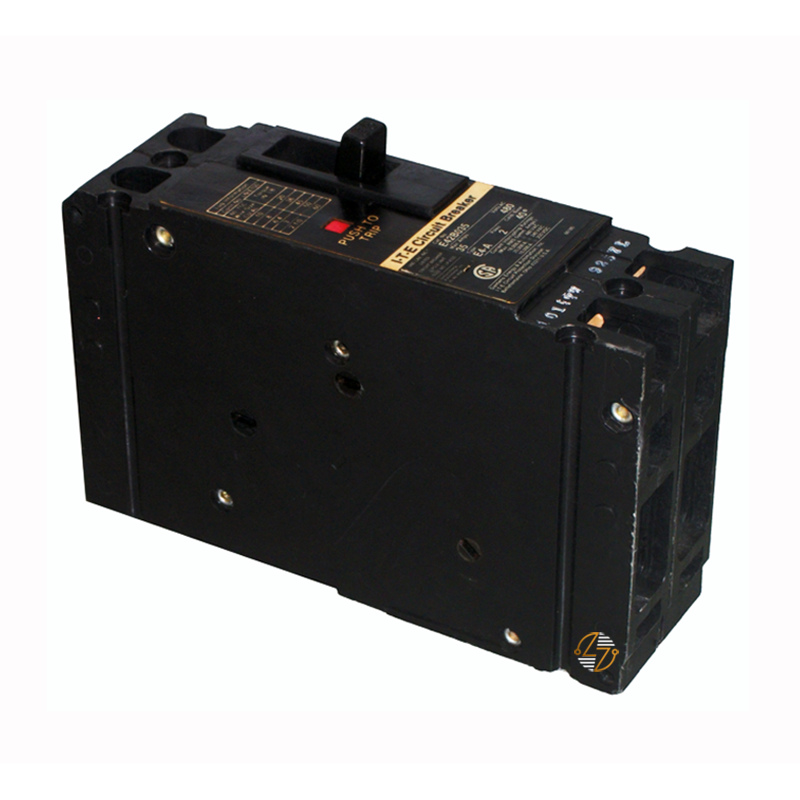

The Siemens E42B100L Molded Case Circuit Breaker is a premium choice for ensuring reliable protection in low voltage power distribution systems. This advanced circuit breaker, part of the Sentron series, is equipped with a thermal-magnetic trip unit designed to handle both overloads and short circuits efficiently. Rated at 100A, the E42B100L provides robust circuit protection with an 25kAIC breaking capacity at 240V, making it suitable for demanding commercial and industrial applications.

Key Features and Benefits

• Superior Protection: The thermal-magnetic trip unit provides comprehensive protection against both overloads and short circuits, ensuring safety and reliability.
• High Breaking Capacity: With an 25kAIC rating at 240V, this breaker is capable of handling significant fault currents, providing enhanced safety for your electrical systems.
• Space-Saving Design: The E42 frame's compact dimensions ensure a space-efficient installation, ideal for panels where space is at a premium.
• Flexible Connectivity: Equipped with line and load side lugs, the E42B100L supports a wide range of wire sizes (10 - 1/0AWG CU/AL), allowing for versatile installation options.

Technical Specifications

• Rated Current: 100A
• Poles: 2
• Breaking Capacity: 25kAIC at 240V
• Trip Unit: Thermal-Magnetic
• Dimensions: 2 x 6.35 x 3.92 inches (W x H x D)
• Wire Range: 10 - 1/0AWG (CU/AL)
• Frame Type: E42 Frame
• Weight: 2.712 lbs

Material Compliance and Certifications

• UL 489: Certified for compliance with North American safety requirements for circuit breakers.
• IEC 60947-2: Compliant with international standards for low voltage switchgear and control gear, ensuring global applicability and safety.

Suitability

• The Siemens E42B100L Molded Case Circuit Breaker is ideally suited for a wide range of applications, including commercial buildings, industrial facilities, and electrical distribution panels. Its high breaking capacity and compact design make it perfect for environments where performance and space efficiency are critical. The versatile wire range and compliance with international standards ensure it meets the needs of electrical professionals seeking quality and safety.
