E42B080L - 80Amp Circuit Breaker

E42B080L - 80Amp Circuit Breaker

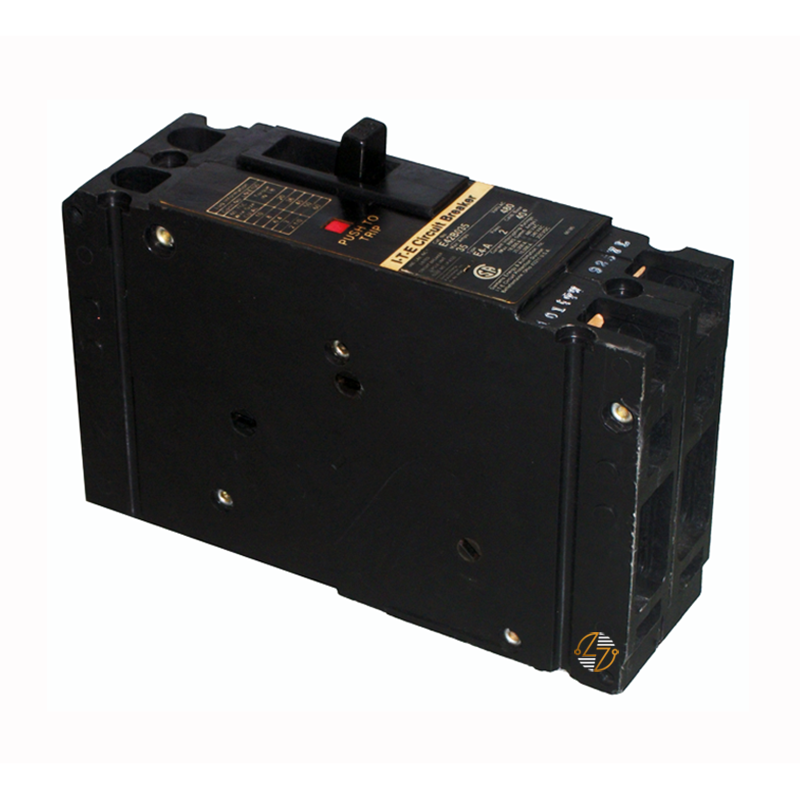

The Siemens E42B080L Molded Case Circuit Breaker is a top-tier solution for your low voltage power distribution needs, providing superior protection and reliability. Rated for 80A and featuring a 2-pole configuration, the E42B080L offers a breaking capacity of 25kAIC at 240V, making it suitable for various commercial and industrial applications.

Key Features and Benefits:

• High Performance: The E42B080L provides reliable circuit protection with an 80A rating and 25kAIC breaking capacity at 240V, suitable for demanding environments.
• Thermal-Magnetic Trip Unit: Combines both thermal and magnetic tripping mechanisms for comprehensive overload and short-circuit protection.
• Compact Design: The E42 frame ensures a space-saving installation, perfect for panels where space is at a premium.
• Versatile Connectivity: Includes line and load side lugs, supporting a wide wire range of 10 - 1/0AWG (CU/AL) for flexible installation options.

Technical Specifications:

• Rated Current: 80A
• Poles: 2
• Breaking Capacity: 25kAIC at 240V
• Trip Unit: Thermal-Magnetic
• Dimensions: 2 x 6.35 x 3.92 inches (W x H x D)
• Wire Range: 10 - 1/0AWG (CU/AL)
• Frame Type: E42 Frame
• Weight: 2.712 lbs

Material Compliance and Certifications:

• UL 489: Ensures the circuit breaker adheres to stringent North American safety requirements.
• IEC 60947-2: Complies with international standards for low voltage switchgear and control gear, guaranteeing global applicability and safety.

Suitability:

• The Siemens E42B080L Molded Case Circuit Breaker is ideal for a variety of applications, including commercial buildings, industrial facilities, and electrical distribution panels. Its robust design and high breaking capacity make it suitable for environments where reliability and safety are paramount. The compact dimensions and versatile wire range also make it an excellent choice for installations where space and flexibility are critical considerations.
