E42B080 - 80Amp Circuit Breaker

E42B080 - 80Amp Circuit Breaker

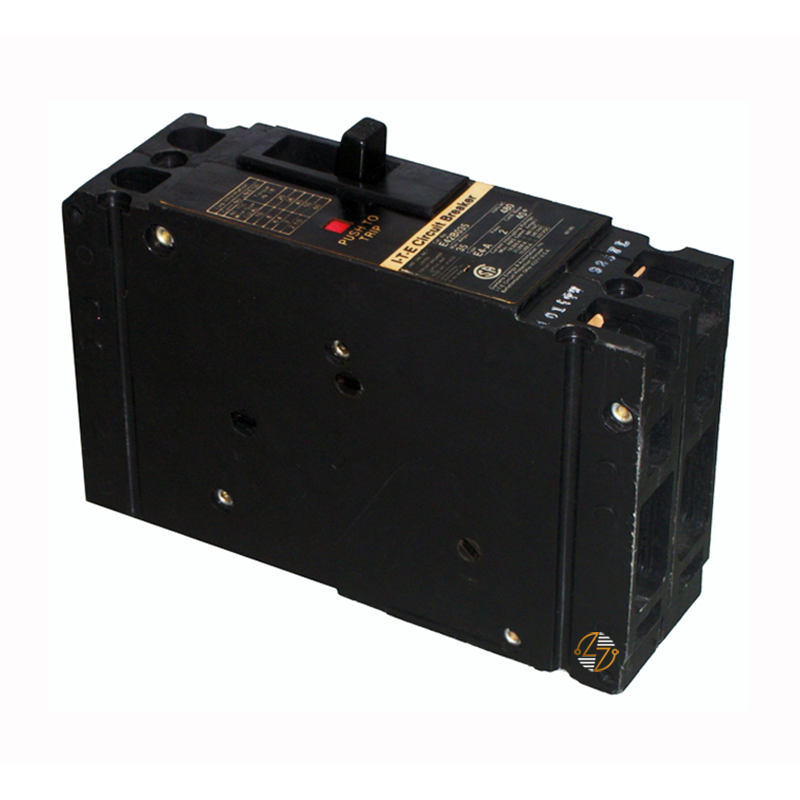

Introducing the Siemens E42B080 Circuit Breaker, a top-tier choice for robust and reliable electrical protection. Designed with precision, this low voltage Sentron molded case circuit breaker features a thermal-magnetic trip unit, ensuring optimal performance and safety in various applications. With an 80A capacity and a 2-pole configuration, it can efficiently handle demanding electrical loads, providing peace of mind and uninterrupted power.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: Combines both thermal and magnetic protection for comprehensive overload and short-circuit protection.
• Standard 40å¡C Breaker E42 Frame: Ensures consistent performance even in high-temperature environments.
• High Breaking Capacity: With a breaking capacity of 25kA at 240V, it effectively safeguards your electrical system from faults.
• Load Lugs Included: Equipped with LN1E100 load lugs, accommodating wire ranges from 10 to 1/0 AWG (CU/AL), facilitating easy and secure connections.

Technical Specifications:

• Current Rating: 80A
• Poles: 2
• Breaking Capacity: 25kA at 240V
• Dimensions: 2 x 6.35 x 3.92 inches (W x H x D)
• Wire Range: 10 - 1/0 AWG (CU/AL)
• Weight: 2.630 lbs

Material Compliance and Certifications:

• Standards: Meets UL 489 and IEC 60947-2 standards, ensuring high safety and reliability.
• RoHS Compliance: Conforms to the RoHS directive, indicating adherence to environmental and health safety standards since 07/01/2006.

Suitability:

• The Siemens E42B080 Circuit Breaker is ideal for a wide range of applications, from industrial to commercial settings. Its robust design and high breaking capacity make it perfect for protecting critical electrical systems, ensuring operational continuity and safety. Whether you are upgrading your facility's electrical infrastructure or need a reliable solution for new installations, the E42B080 is a dependable choice that meets stringent quality and performance standards.
