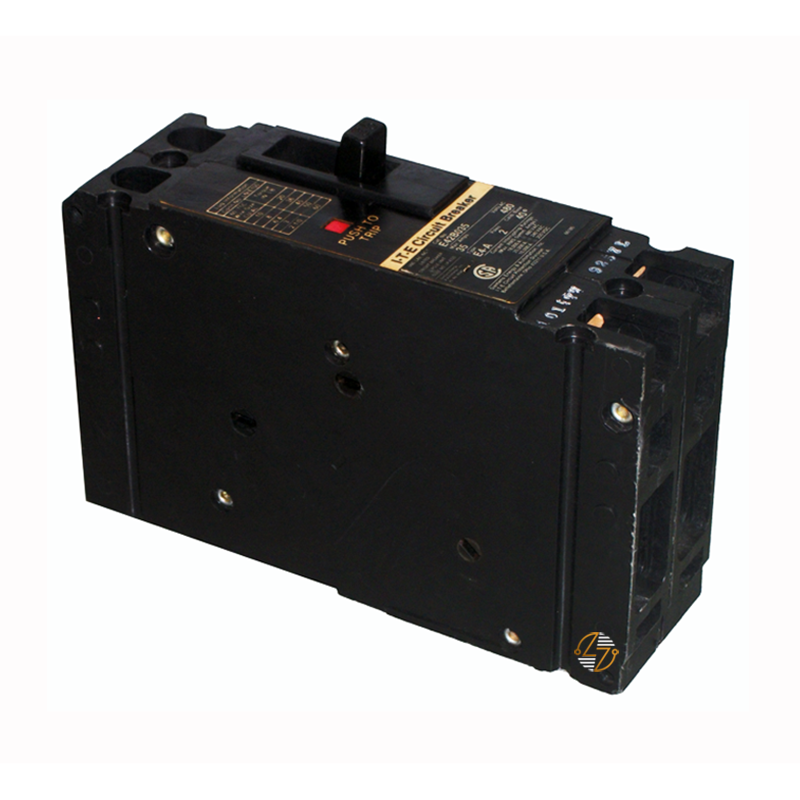

E42B070 - 70Amp Circuit Breaker

E42B070 - 70Amp Circuit Breaker

When a circuit breaker needs replacement, finding the right match is about more than just amperage. The E42B070 molded case circuit breaker is a 70 amp, 2-pole Type E42 breaker designed to provide the proper form, fit, and function for compatible commercial and industrial electrical systems. Whether you're responding to an unexpected equipment failure or carrying out scheduled maintenance, having a breaker that matches the original specifications can help minimize downtime and simplify the repair process.

Built with a bolt-on design and molded case construction, the E42B070 is intended for applications that require dependable overcurrent protection and compatibility with existing equipment. It features interrupting ratings of 25kA at 240VAC and 18kA at 480VAC, making it suitable for a wide range of power distribution systems. Because it is HACR rated, it can also be used in qualifying HVAC and refrigeration applications where maintaining proper circuit protection is essential.

When maintaining legacy equipment, matching electrical ratings and physical dimensions is often critical. The E42B070 helps support continued operation by delivering the specifications needed for compatible installations without requiring modifications to the existing setup.

Key Features and Benefits

• 70 amp current rating for branch and feeder circuit protection
• 2-pole configuration for applications requiring dual-pole protection
• Type E42 molded case circuit breaker
• Bolt-on mounting design for secure installation
• Includes load-side terminals
• HACR rated for qualifying HVAC and refrigeration equipment
• Interrupting capacity of 25kA at 240VAC and 18kA at 480VAC
• Compact dimensions for use in compatible electrical systems
• Built to last in commercial and industrial environments
• Suitable for maintenance, repair, and replacement projects
• Rated for operation in ambient temperatures up to 40°C (104°F)

Technical Specifications

• Part Number: E42B070

• Type: E42

• Circuit Breaker Type: Molded Case Circuit Breaker

• Mounting Style: Bolt-On

• Amperage: 70 Amps

• Poles: 2

• A.I.C. Rating: 25kA @ 240VAC; 18kA @ 480VAC

• Temperature Rating: 40°C (104°F)

• HACR Rated: Yes

• Included Terminals: Load-Side Terminals

• Width: 2.0 in.

• Height: 6.35 in.

• Depth: 3.92 in.

• Dimensions: 2.0"W x 6.35"H x 3.92"D

• Approximate Ship Weight: 4.31 lbs.


Material Compliance and Certifications

• HACR rated for qualifying heating, ventilation, air conditioning, and refrigeration applications
• Molded case circuit breaker construction
• Rated for operation in ambient temperatures up to 40°C (104°F)
• Designed for use within its published electrical ratings and specifications
• Intended for installation in accordance with applicable electrical codes and equipment requirements

Where It Works Best

The E42B070 70A 2-pole circuit breaker is commonly used in commercial facilities, manufacturing plants, warehouses, office buildings, HVAC systems, refrigeration equipment, and electrical distribution panels that require a compatible Type E42 breaker. It is particularly useful when servicing existing installations where matching the original breaker's amperage, pole configuration, interrupting capacity, and mounting style is essential.

From routine maintenance to emergency replacement situations, the E42B070 helps maintenance teams and electrical professionals keep compatible systems operating as intended while preserving the original design of the equipment.
