E42B045L - 45Amp Circuit Breaker

E42B045L - 45Amp Circuit Breaker

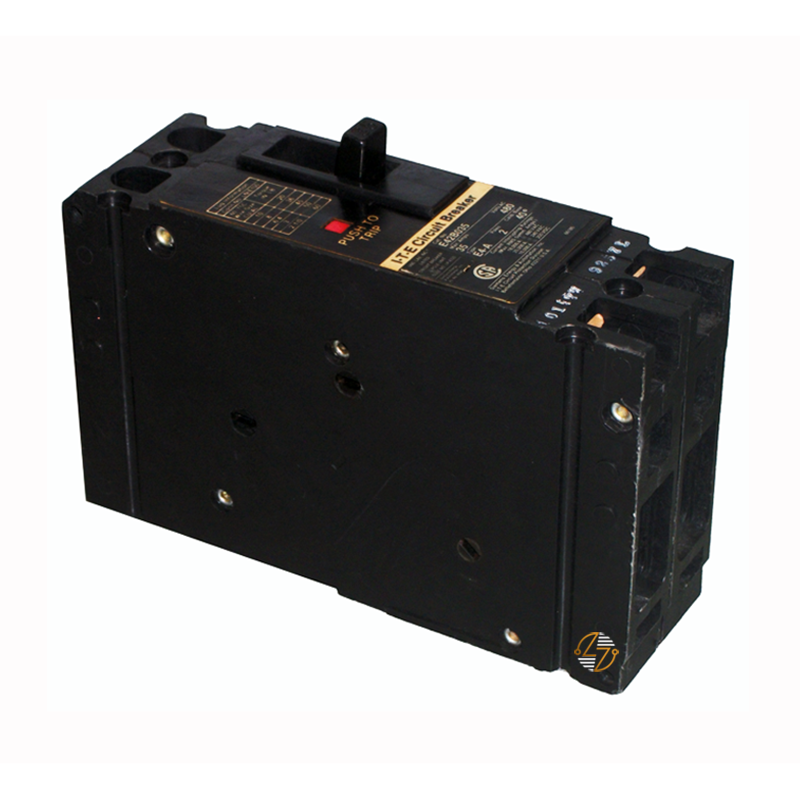

Ensure the highest level of protection and efficiency for your electrical systems with the E42B045L Circuit Breaker from Siemens' Low Voltage Sentron series. This superior molded case circuit breaker features a thermal-magnetic trip unit, providing robust protection against overloads and short circuits. Ideal for both commercial and industrial applications, the E42B045L delivers reliable performance and peace of mind. With a 45-amp rating and an 25kA interrupting capacity at 240V, this circuit breaker is designed to handle significant electrical loads with ease, ensuring operational safety and efficiency.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: Combines thermal and magnetic elements to deliver precise protection, ensuring rapid response to electrical faults.
• High Interrupting Capacity: Capable of interrupting up to 25kA at 240V, providing superior protection for your electrical systems.
• Durable Construction: Engineered to withstand demanding industrial environments, offering long-lasting durability and consistent performance.
• Ease of Installation: Features line and load side lugs (LN1E100) for straightforward installation, accommodating a wide wire range of 10 - 1/0 AWG (CU/AL).

Technical Specifications:

• Poles: 2
• Rated Current: 45 Amps
• Voltage Rating: 240 VAC
• Interrupting Capacity: 25kA
• Wire Range: 10 - 1/0 AWG (CU/AL)
• Dimensions (W x H x D): 2 x 6.35 x 3.92 inches
• Net Weight: 2.712 lbs

Material Compliance and Certifications:

• Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring high safety and performance.
• RoHS Compliance: Complies with RoHS directive, confirming it is free from hazardous substances.
• Export Control Regulations: AL: N / ECCN: EAR99

Suitability:

• The E42B045L Circuit Breaker is ideal for use in commercial buildings, industrial facilities, and other environments requiring reliable circuit protection. Its high interrupting capacity and reliable design make it suitable for protecting critical electrical infrastructure, ensuring safety and operational efficiency.
