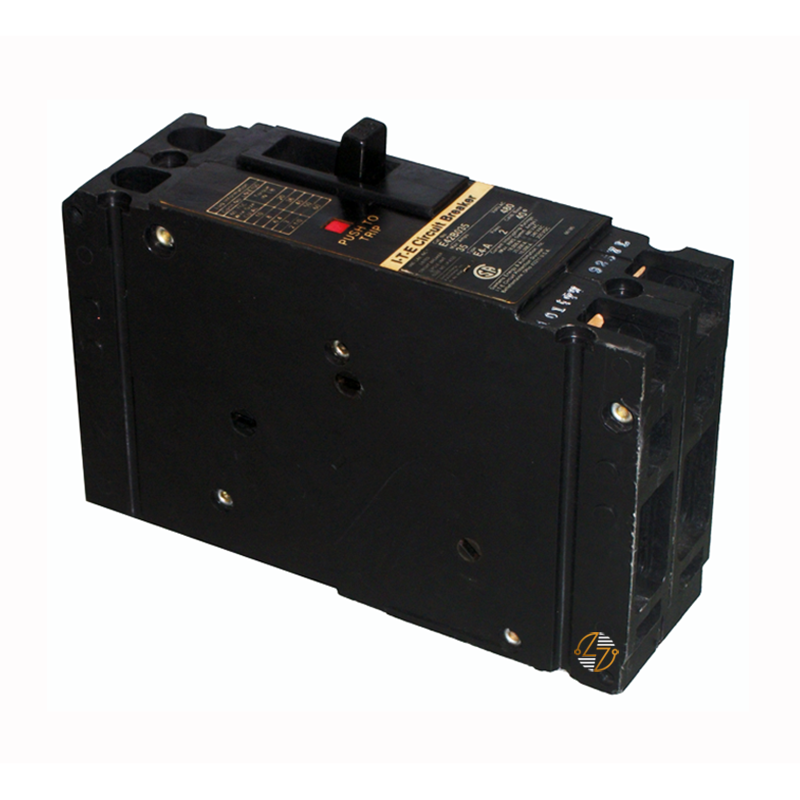

E42B035L - 35Amp Circuit Breaker

E42B035L - 35Amp Circuit Breaker

Keeping an electrical system operating safely often comes down to using the right replacement components. The E42B035L molded case circuit breaker is a 35 amp, 2-pole circuit breaker designed for applications that require the specific ratings and configuration of the E42 series. Whether you're performing routine maintenance, replacing a failed breaker, or supporting ongoing facility operations, matching the original breaker specifications is essential for maintaining system compatibility.

Designed for commercial, industrial, and HVAC-related applications, the E42B035L helps protect electrical circuits from overloads and short circuits while fitting the requirements of compatible equipment. Its molded case construction is built for long-term service, and the breaker is rated for operation in ambient temperatures up to 40°C (104°F). To help streamline installation, the breaker includes both line-side and load-side terminals, reducing the need for additional accessories during replacement or maintenance work.

Key Features and Benefits

• 35 amp current rating for compatible electrical systems
• 2-pole design for applications requiring dual-pole protection
• Molded case circuit breaker construction
• Includes both line-side and load-side terminals
• HACR rated for qualifying HVAC and refrigeration applications
• Rated for operation in ambient temperatures up to 40°C (104°F)
• Interrupting capacity of 25kA @ 240VAC and 18kA @ 480VAC
• Designed to maintain the original form, fit, and function of compatible equipment
• Built to last in commercial and industrial environments

Technical Specifications

• Part Number: E42B035L

• Type: E42

• Amperage: 35 Amps

• Poles: 2

• Circuit Breaker Type: Molded Case Circuit Breaker

• A.I.C. Rating: 25kA @ 240VAC; 18kA @ 480VAC

• Temperature Rating: 40°C (104°F)

• HACR Rated: Yes

• Included Terminals: Line and Load-Side Terminals

• Width: 2.0 in.

• Height: 6.35 in.

• Depth: 3.92 in.

• Dimensions: 2.0"W x 6.35"H x 3.92"D

• Approximate Ship Weight: 4.31 lbs.


Material Compliance and Certifications

• HACR rated for qualifying heating, air conditioning, refrigeration, and related applications
• Molded case circuit breaker construction
• Designed for use in systems requiring the published electrical ratings and configuration
• Intended for installation in accordance with applicable electrical codes and equipment requirements

Where It Works Best

The E42B035L is commonly found in commercial facilities, industrial plants, manufacturing operations, HVAC systems, electrical distribution equipment, and maintenance projects where a 35 amp, 2-pole molded case circuit breaker is required. It's especially useful when maintaining existing equipment and preserving the original electrical design without changing system specifications.
