E42B035 - 35Amp Circuit Breaker

E42B035 - 35Amp Circuit Breaker

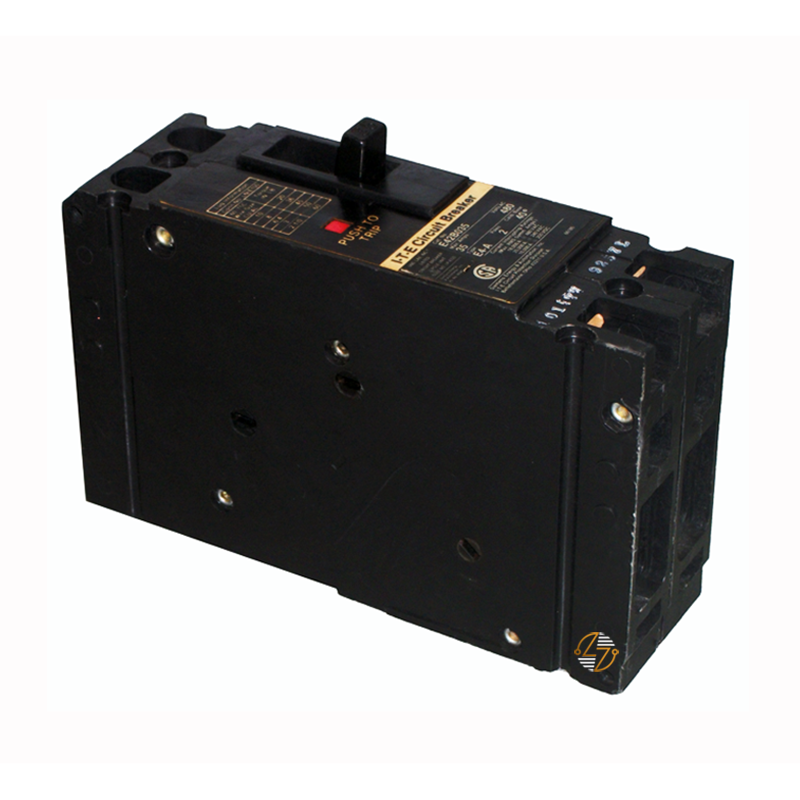

When you're maintaining or servicing an electrical distribution system, having the correct circuit breaker matters. The E42B035 molded case circuit breaker is a 35 amp, 2-pole bolt-on breaker designed for applications that require the specific ratings, dimensions, and mounting configuration of the E42 series. Whether installed in commercial facilities, industrial environments, or HVAC-related systems, this breaker provides dependable protection against overloads and short circuits while helping keep existing equipment operating as intended.

With an interrupting capacity of 25kA at 240VAC and 18kA at 480VAC, the E42B035 is designed to meet the fault-current requirements of many existing electrical systems. Built to last and engineered for long-term service, it remains a practical solution when maintaining equipment that depends on the original breaker specifications.

Key Features and Benefits

• 35 amp current rating for compatible branch and distribution circuits
• 2-pole configuration for applications requiring dual-pole protection
• Bolt-on mounting design for secure installation
• Molded case construction designed for long-term service
• HACR rated for qualifying HVAC and refrigeration equipment
• Interrupting capacity rated at 25kA @ 240VAC and 18kA @ 480VAC
• Includes load-side terminals
• Designed for operation in ambient temperatures up to 40°C (104°F)
• Helps maintain the original form, fit, and function of compatible electrical systems

Technical Specifications

• Part Number: E42B035

• Type: E42

• Amperage: 35 Amps

• Poles: 2

• Mounting Style: Bolt-On

• A.I.C. Rating: 25kA @ 240VAC; 18kA @ 480VAC

• Temperature Rating: 40°C (104°F)

• HACR Rated: Yes

• Included Terminals: Load-Side Terminals

• Width: 2.0 in

• Height: 6.35 in

• Depth: 3.92 in

• Dimensions: 2.0"W x 6.35"H x 3.92"D

• Approximate Ship Weight: 4.31 lbs


Material Compliance and Certifications

• HACR rated for qualifying heating, air conditioning, and refrigeration applications.
• Molded case circuit breaker construction.
• Designed for use in applications requiring the published electrical ratings and configuration.
• Intended for installation in accordance with applicable electrical codes and equipment requirements.

Where It Works Best

The E42B035 is commonly used in commercial buildings, manufacturing facilities, industrial equipment, electrical distribution systems, HVAC installations, maintenance projects, and facility operations where a 35 amp, 2-pole bolt-on molded case circuit breaker is required. It is especially useful when replacing an existing breaker and maintaining the original system design, electrical ratings, and mounting arrangement.
