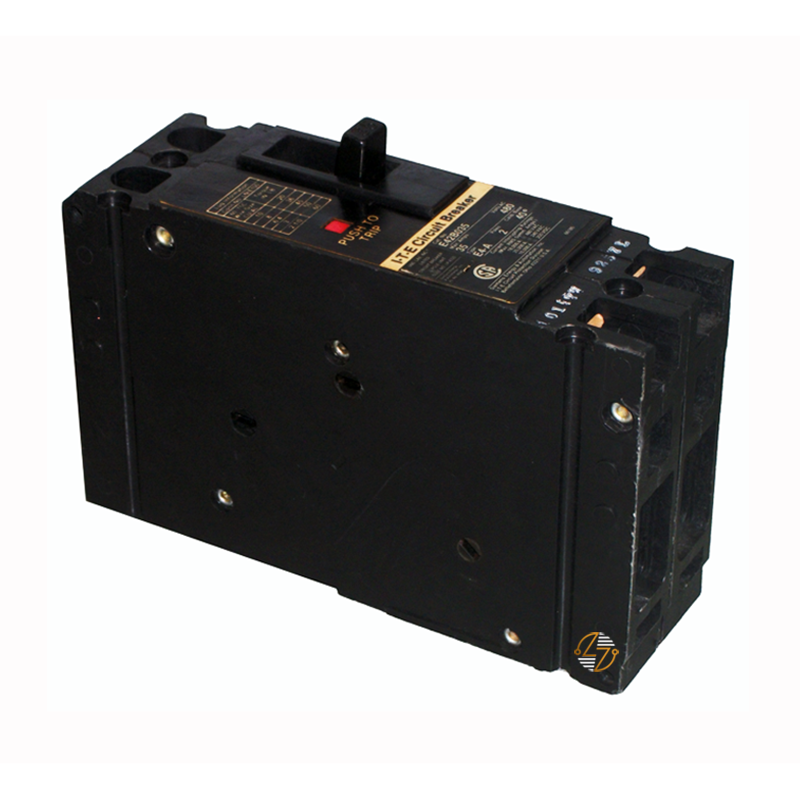

E42B025L - 25Amp Circuit Breaker

E42B025L - 25Amp Circuit Breaker

Ensure the highest level of protection and reliability for your electrical systems with the E42B025L Circuit Breaker from Siemens' Low Voltage Sentron series. This advanced molded case circuit breaker features a thermal-magnetic trip unit, designed to deliver optimal performance in both commercial and industrial applications. With a 25-amp rating and an 25kA interrupting capacity at 240V, the E42B025L effectively safeguards your electrical infrastructure from overloads and short circuits, maintaining the integrity and safety of your operations.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: This dual-function trip unit provides precise and reliable protection, combining thermal and magnetic elements to respond swiftly to overloads and short circuits.
• High Interrupting Capacity: Capable of interrupting up to 25kA at 240V, ensuring robust protection for your electrical systems.
• Durable Design: Constructed to meet the rigorous demands of industrial environments, offering long-lasting durability and performance.
• User-Friendly Installation: Features line and load side lugs (SA1E025) for straightforward installation, accommodating wire ranges of 14 - 10 AWG (CU) and 12 - 10 AWG (AL).

Technical Specifications:

• Poles: 2
• Rated Current: 25 Amps
• Voltage Rating: 240 VAC
• Interrupting Capacity: 25kA
• Wire Range: 14 - 10 AWG (CU) / 12 - 10 AWG (AL)
• Dimensions (W x H x D): 2 x 6.35 x 3.92 inches
• Net Weight: 2.712 lbs

Material Compliance and Certifications:

• Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring high safety and performance.
• RoHS Compliance: Complies with RoHS directive, confirming it is free from hazardous substances.
• Export Control Regulations: AL: N / ECCN: EAR99

Suitability:

• The E42B025L Circuit Breaker is ideal for use in commercial buildings, industrial facilities, and other environments requiring dependable circuit protection. Its high interrupting capacity and robust construction make it suitable for safeguarding critical electrical infrastructure, ensuring safety and operational efficiency.
