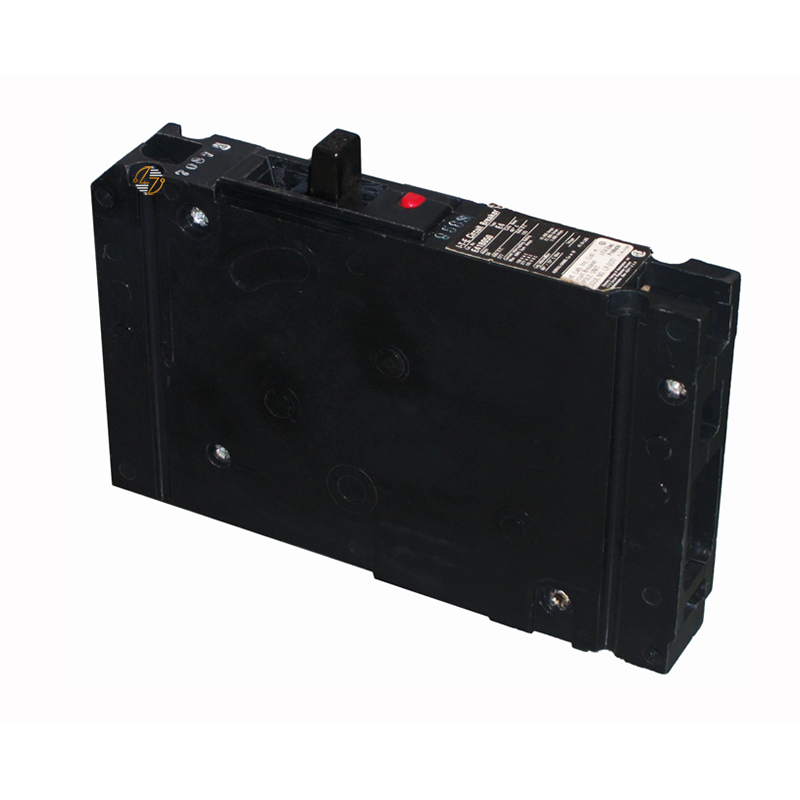

E41B060 - 60Amp Circuit Breaker

E41B060 - 60Amp Circuit Breaker

Discover the reliability and performance of the Siemens E41B060 Low Voltage Sentron Molded Case Circuit Breaker, a critical component for ensuring safety and efficiency in your electrical systems. Engineered with a thermal-magnetic trip unit, this 60A, 1-pole breaker offers a standard 40å¡C operating environment with a standard breaking capacity.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: Provides consistent protection against overloads and short circuits, enhancing safety and reliability in your electrical system.
• High Breaking Capacity: Rated at 25kAIC at 120V, it ensures superior performance even under high fault conditions.
• Load Lugs Included: Equipped with load lugs only (LD1E060), it supports a wire range of 10-4 AWG (CU/AL), offering flexibility in wiring and installation.

Technical Specifications:

• Current Rating: 60 Amps
• Poles: 1
• Voltage Rating: 120V AC
• Breaking Capacity: 25kAIC
• Trip Unit: Thermal-Magnetic
• Wire Range: 10-4 AWG (CU/AL)
• Dimensions: 1 x 6.35 x 3.92 inches (W x H x D)
• Weight: 1.151 lbs

Material Compliance and Certifications:

• UL 489 Certified: Ensures the product meets rigorous safety and performance standards.
• IEC 60947-2 Compliant: Adheres to international standards for low-voltage switchgear and controlgear.
• RoHS Directive Compliance: Free from hazardous substances, making it an environmentally friendly choice since March 31, 2009.

Suitability:

• Residential: Ideal for protecting home electrical systems, ensuring safety and reliability.
• Commercial: Suitable for office buildings and retail spaces where dependable electrical performance is critical.
• Industrial: Excellent for manufacturing plants and heavy-duty applications that require robust protection against electrical faults.
