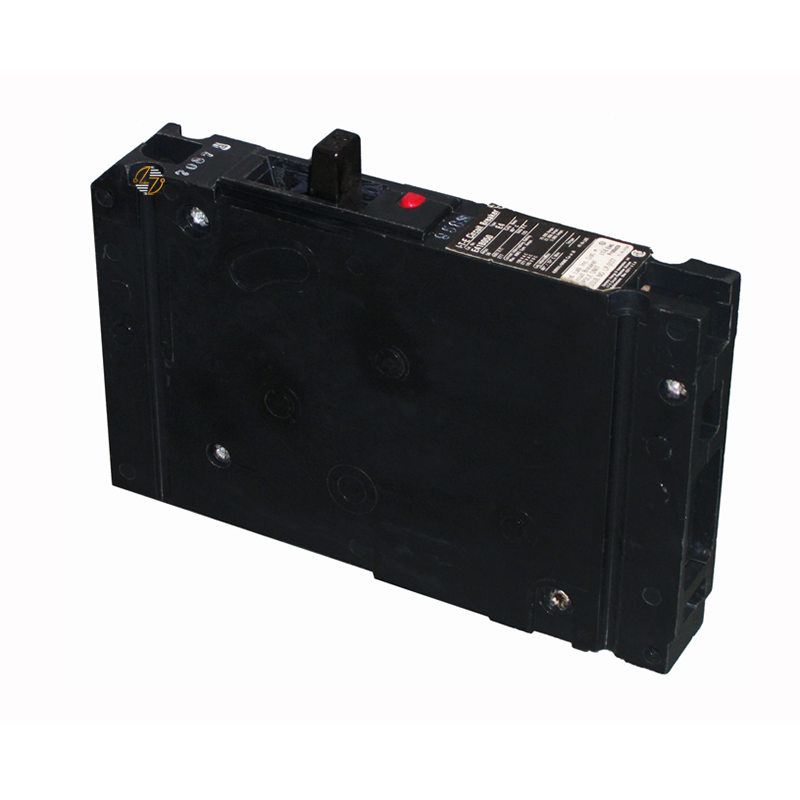

E41B020L - 20Amp Circuit Breaker

E41B020L - 20Amp Circuit Breaker

When you need a 20 amp, 1-pole molded case circuit breaker that matches the requirements of an existing electrical system, the E41B020L provides the form, fit, and function needed for compatible installations. Designed as a Type E41 circuit breaker, this unit helps protect electrical circuits from overloads and short circuits while supporting the continued operation of commercial and industrial power distribution equipment.

With an interrupting capacity of 22kA at 277VAC and 25kA at 120VAC, the E41B020L is well-suited for applications that require these specific electrical ratings. Whether you're replacing a damaged breaker during maintenance or servicing legacy equipment, this breaker is designed to integrate into compatible systems without altering the original equipment configuration.

Key Features and Benefits

• 20 Amp current rating for branch circuit protection
• Single-pole configuration
• Type E41 molded case circuit breaker
• 22kA interrupting rating at 277VAC
• 25kA interrupting rating at 120VAC
• HACR rated for approved HVAC and refrigeration applications
• Includes line-side and load-side terminals
• Compact 1-inch-wide design
• Designed for form, fit, and functional replacement applications
• Helps protect circuits from overloads and short-circuit events
• Built to last when properly installed and maintained

Technical Specifications

• Part Number: E41B020L

• Type: E41

• Product Type: Molded Case Circuit Breaker

• Amperage: 20A

• Poles: 1

• A.I.C. Rating: 22kA @ 277VAC

• A.I.C. Rating: 25kA @ 120VAC

• Temperature Rating: 40°C

• HACR Rated: Yes

• Terminals: Includes Line-Side and Load-Side Terminals

• Width: 1.00 in.

• Height: 6.35 in.

• Depth: 3.92 in.

• Dimensions: 1.00"W x 6.35"H x 3.92"D

• Approximate Shipping Weight: 2.50 lbs.


Material Compliance and Certifications

• HACR rated for approved heating, air conditioning, and refrigeration applications
• Molded case circuit breaker construction
• Manufactured for use within published electrical ratings and operating parameters
• Suitable for installation in compatible equipment where electrical ratings and physical dimensions match system requirements
• Installation should comply with applicable electrical codes and standards

Where It Works Best

The E41B020L is commonly found in:

• Commercial electrical distribution systems
• Industrial facilities and manufacturing environments
• HVAC and refrigeration equipment
• Electrical panels utilizing Type E41 breakers
• Maintenance and repair projects involving existing equipment
• Branch circuit protection applications requiring a 20 amp, single-pole breaker
• Facilities seeking to maintain compatibility with installed electrical infrastructure
