E41B015L - 15Amp Circuit Breaker

E41B015L - 15Amp Circuit Breaker

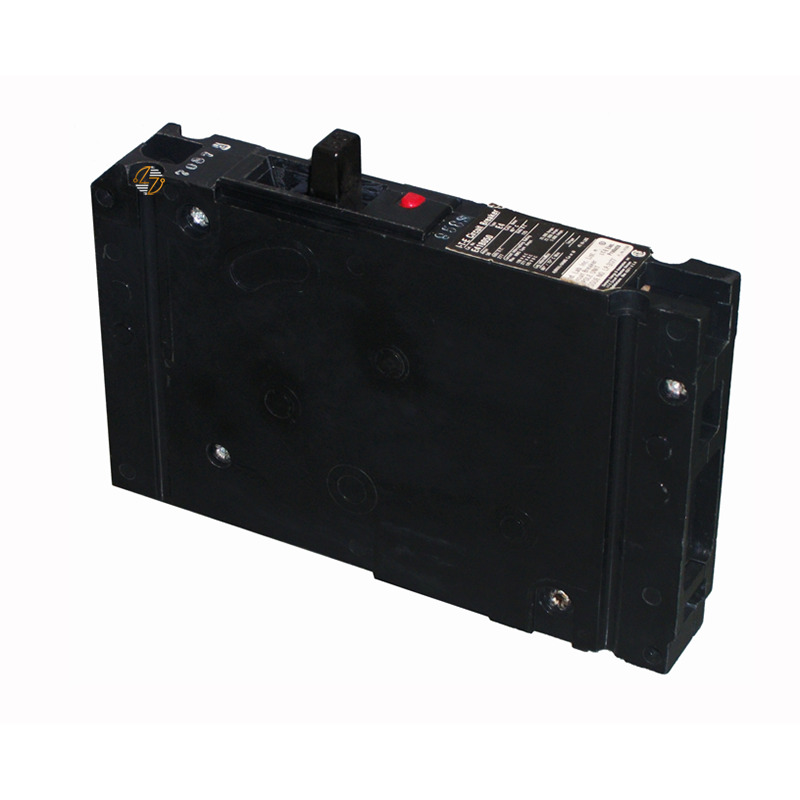

When you're matching a breaker in an existing electrical system, the small details matter—amperage, pole count, interrupting rating, terminal setup, and physical fit all have to line up. The E41B015L 15 Amp 1-Pole Circuit Breaker is a Type E41 molded case circuit breaker designed for applications requiring 15-amp protection, a single-pole configuration, and compatibility with systems rated for 22kA at 277VAC or 25kA at 120VAC. It includes both line and load-side terminals, which makes it a practical option for compatible installations where the terminal arrangement needs to match the existing setup.

This breaker is HACR rated and built for operation in ambient temperatures up to 40°C (104°F). Its molded case construction supports everyday use in commercial and industrial electrical distribution systems, especially where maintaining the original form, fit, and function is the priority. In maintenance work, the goal is usually simple: replace the breaker with the right matching unit and keep the system operating as intended. The E41B015L is built to last when installed and used within its published electrical ratings.

Key Features and Benefits

• 15 Amp rating for compatible branch circuit protection
• 1-pole configuration for single-pole applications
• Type E41 molded case circuit breaker
• 22kA interrupting rating at 277VAC
• 25kA interrupting rating at 120VAC
• HACR rated for approved HVAC and refrigeration applications
• Includes line and load-side terminals
• Rated for operation up to 40°C (104°F)
• Designed for form, fit, and functional replacement use
• Built to last when operated within listed specifications

Technical Specifications

• Part Number: E41B015L

• Type: E41

• Product Type: Molded Case Circuit Breaker

• Amperage Rating: 15 Amps

• Poles: 1

• Interrupting Capacity: 22kA @ 277VAC

• Interrupting Capacity: 25kA @ 120VAC

• Temperature Rating: 40°C (104°F)

• HACR Rated: Yes

• Terminals Included: Line and Load-Side Terminals

• Width: 1.00 in.

• Height: 6.35 in.

• Depth: 3.92 in.

• Dimensions: 1.00"W x 6.35"H x 3.92"D

• Approximate Shipping Weight: 2.50 lbs


Material Compliance and Certifications

• HACR rated for approved heating, air conditioning, and refrigeration applications
• Molded case circuit breaker construction
• Designed for use within published electrical ratings and specifications
• Suitable for compatible equipment where amperage, voltage, interrupting capacity, terminal arrangement, and physical dimensions match the installation requirements
• Installation should follow applicable electrical codes and manufacturer requirements

Where It Works Best

The E41B015L is commonly used in:

• Commercial electrical distribution systems
• Industrial facilities and maintenance environments
• HVAC and refrigeration equipment requiring HACR-rated protection
• 277VAC and 120VAC branch circuit applications
• Existing equipment requiring a Type E41 molded case breaker
• Replacement projects requiring line and load-side terminals
• Electrical systems needing a 15 Amp, 1-pole breaker
• Applications where preserving original form, fit, and function is important
