E2050 - 50Amp Circuit Breaker

E2050 - 50Amp Circuit Breaker

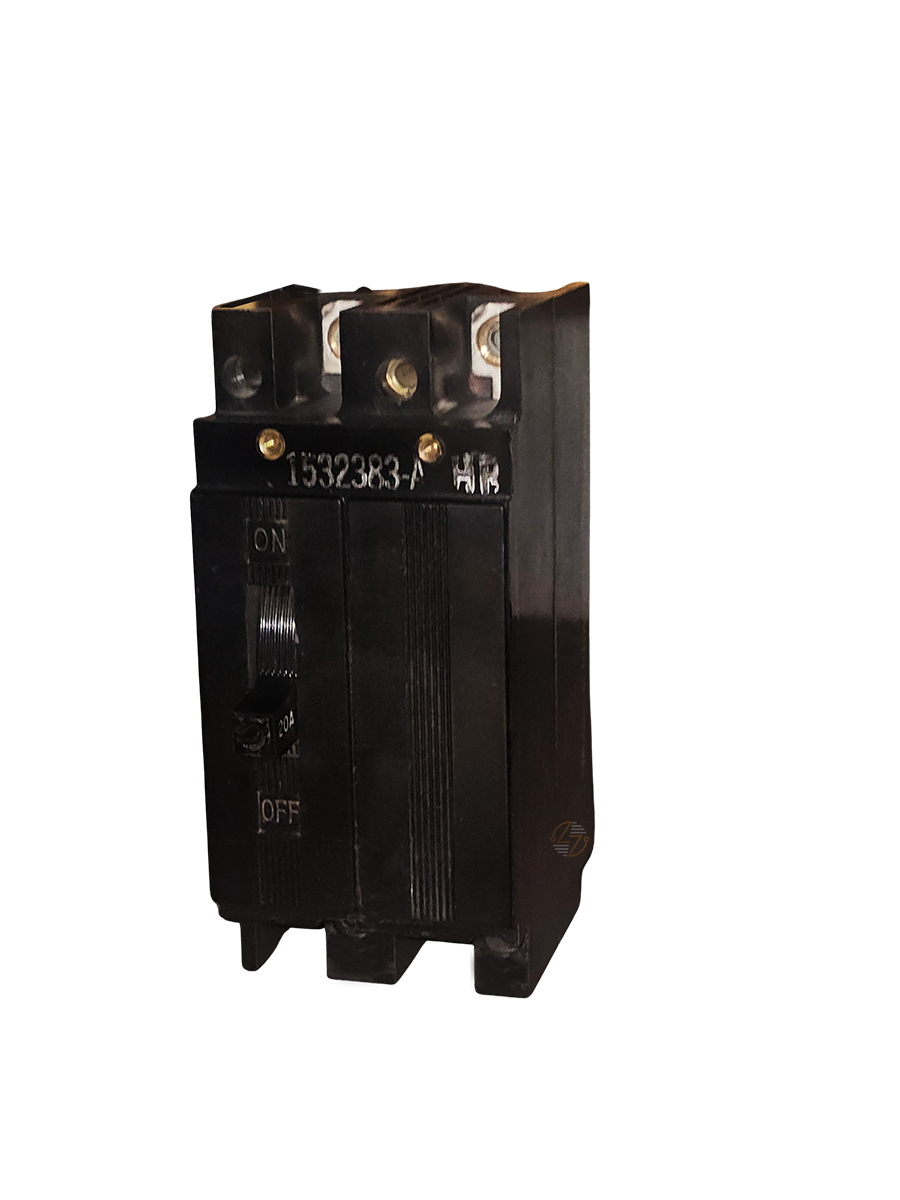

When you're replacing a breaker in an existing panel, especially in older or established electrical systems, the goal is usually simple—match the original specs and keep everything operating the way it was designed. The E2050 50 Amp 2-Pole Circuit Breaker is built for that kind of work. It’s a Type E thermal-magnetic breaker designed for systems that require a 50 Amp rating, 2-pole configuration, and 120/240VAC service.

This model is rated for a 10kA interrupting capacity at 120/240VAC, making it suitable for a variety of general replacement applications within its listed ratings. It also includes a non-interchangeable trip unit, which helps maintain the original factory setup of the equipment it’s installed in. With a 40°C temperature rating and included load terminals, it fits cleanly into compatible systems without requiring changes to the panel layout.

In the field, the E2050 is typically used for maintenance and replacement work—especially when electricians or facility teams need to keep existing equipment running without modifying the original electrical design. Matching the correct amperage, poles, and voltage rating helps ensure the system continues to operate as intended.

Key Features and Benefits

• 50 Amp rating for branch circuit protection
• 2-pole configuration for 120/240VAC systems
• Type E thermal-magnetic breaker design
• Thermal and magnetic trip response for overloads and short circuits
• Non-interchangeable trip unit maintains original setup
• 10kA interrupting capacity at 120/240VAC
• Rated for operation up to 40°C (104°F)
• Includes load terminals for installation in compatible equipment
• Compact design for use in existing electrical systems
• Built to last in long-term maintenance applications
• Suitable for form, fit, and functional replacement work


Technical Specifications

• Part Number: E2050

• Type: E

• Product Type: Thermal-Magnetic Circuit Breaker

• Amperage Rating: 50 Amps

• Poles: 2

• Voltage Rating: 120/240 VAC

• Interrupting Capacity: 10kA @ 120/240VAC

• Trip Unit: Non-Interchangeable

• Temperature Rating: 40°C (104°F)

• Included Terminals: Load Terminals

• Dimensions:
  • Width: 2.75 in
  • Height: 6.00 in
  • Depth: 3.31 in
  • Dimensions: 2.75"W x 6.00"H x 3.31"D
• Approximate Shipping Weight: 4.00 lbs


Material Compliance and Certifications

The E2050 should be installed and maintained by qualified electrical personnel in accordance with applicable electrical codes and manufacturer guidelines. Before installation, confirm compatibility with the existing system, including voltage, amperage, interrupting rating, pole configuration, and physical dimensions. No additional certification data was provided in the available specifications.

Where It Works Best

• The E2050 is commonly used in:
• Commercial electrical distribution systems
• Industrial facilities and manufacturing environments
• Institutional buildings and campuses
• Maintenance and repair work on existing equipment
• Branch circuit protection applications
• Systems requiring a Type E breaker replacement
• 120/240VAC electrical systems
• Legacy panels where matching original breaker specifications is required
• Equipment requiring a 50 Amp 2-pole breaker
