DH361FRK - 30 Amp Safety Switch

DH361FRK - 30 Amp Safety Switch

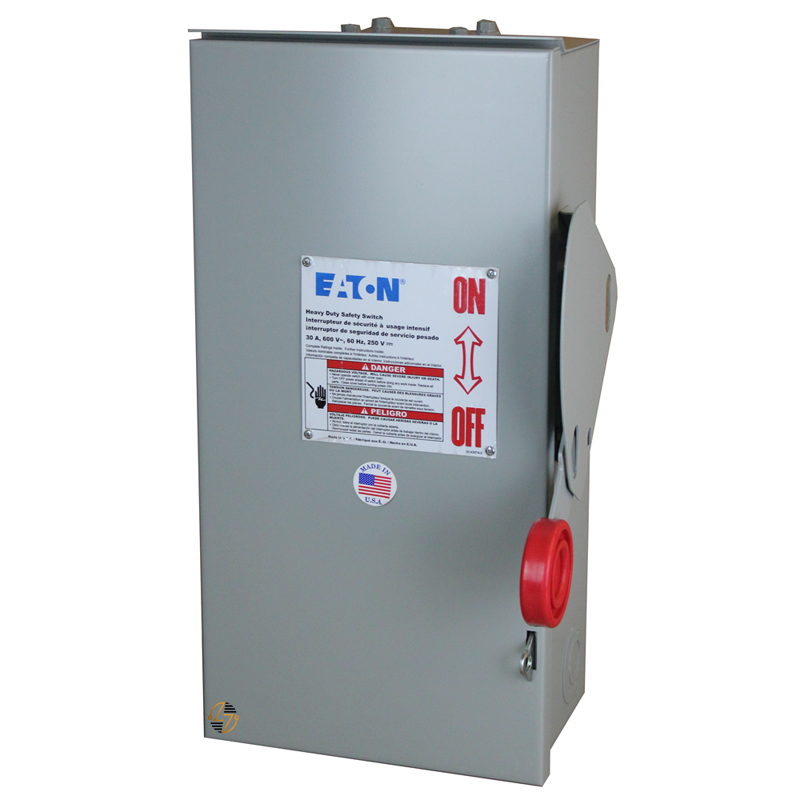

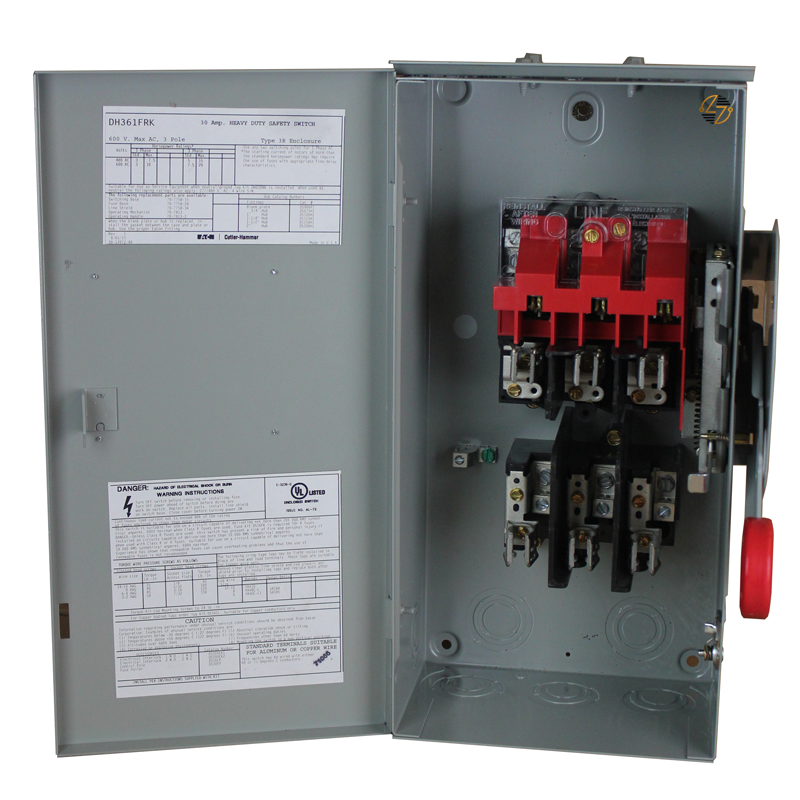

The Eaton DH361FRK is a heavy-duty, fusible safety switch designed for demanding industrial and commercial applications. This single-throw, three-pole switch operates at 600 volts with a 30-ampere rating, ensuring reliable performance in high-voltage environments. Its NEMA 3R-rated painted galvanized steel enclosure provides robust protection against environmental factors, making it suitable for both indoor and outdoor installations. The switch accommodates Class H fuses and is configured without a neutral, supporting three-wire systems.

Key Features and Benefits

• Enhanced Visible Blade Design: Provides clear visual confirmation of the switch's status, enhancing safety during operation and maintenance.
• High Voltage and Amperage Ratings: Rated for 600 V and 30 A, making it ideal for demanding industrial applications.
• Versatile Application: Suitable for service entrance use with the installation of a neutral kit, accommodating a variety of electrical distribution requirements.


Technical Specifications

• Dimensions: 16.5" (L) x 9.5" (W) x 8.5" (H)

• Weight: 12 lbs

• Amperage Rating: 30 A

• Voltage Rating: 600 V

• Number of Poles: Three-pole

• Number of Wires: Three-wire

• Enclosure Rating: NEMA 3R

• Enclosure Material: Painted galvanized steel

• Fuse Class Provision: Class H

• Fuse Configuration: Fusible without neutral

• Wire Size Compatibility: #14-#2 AWG Cu/Al

• Maximum Horsepower Ratings:
• 7.5 HP (1-phase @ 480 V)
• 10 HP (1-phase @ 600 V)
• 15 HP (3-phase @ 480 V)
• 20 HP (3-phase @ 600 V)

Material Compliance and Certifications

• Certifications: The Eaton DH361FRK is UL Listed, ensuring it meets rigorous safety and performance standards.
• Eaton is committed to sustainable practices and adheres to environmental regulations, with certifications such as ISO 9001 for quality management and ISO 14001 for environmental management.


Suitability

• This heavy-duty safety switch is ideal for industrial and commercial settings requiring reliable power control and protection. Its NEMA 3R rating makes it suitable for outdoor installations, providing protection against rain and ice formation. The DH361FRK is particularly well-suited for service entrance applications when a neutral kit is installed, offering flexibility in various electrical distribution configurations.
