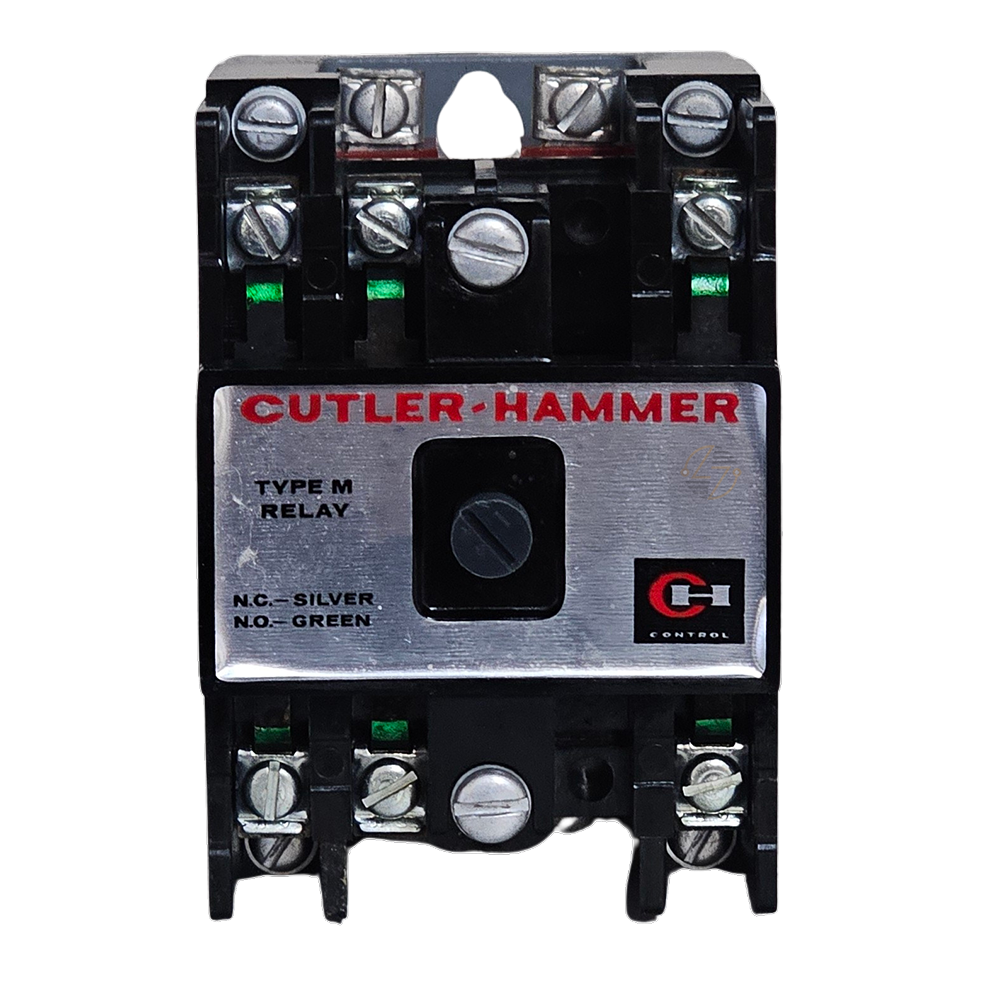

The Cutler Hammer D23MR30A Type M Relay is a 3-pole control relay designed for use in industrial and commercial electrical systems where reliable switching and control functions are essential to day-to-day operations. Rated for 10 amps and up to 300 volts AC, this relay features a 120 VAC, 60 Hz coil and a reversible contact design, making it a practical solution for maintaining compatible control equipment already in service.

In many facilities, control relays are a critical part of motor control systems, machinery, and automation circuits. When a relay reaches the end of its service life, finding the correct replacement can help minimize downtime and keep equipment operating as intended. The D23MR30A is designed to fit compatible applications that require a Type M relay, allowing maintenance personnel and electricians to restore control functions without making major changes to existing systems.

Whether you're servicing manufacturing equipment, troubleshooting a control circuit, or replacing a worn relay during scheduled maintenance, the D23MR30A provides the form, fit, and function needed for compatible installations.

This relay is commonly found in industrial control panels, motor control assemblies, and other electrical systems where dependable contact operation is required. Built to last and designed for long-term use, the D23MR30A continues to be a practical choice for maintaining existing equipment and preserving original system configurations. The relay may also be associated with catalog numbers D23MB, D26MPR, D26MPL, and D26MPS, which may appear on equipment labels or maintenance documentation.

Key Features and Benefits

• Cutler Hammer Type M control relay
• 3-pole configuration
• Rated 10 amperes, 300V AC maximum
• 120 VAC, 60 Hz coil
• Reversible contact design for application flexibility
• Open-style construction
• Designed for use in compatible industrial control systems
• Supports maintenance and replacement needs in existing installations
• Compact design for integration into control panels and equipment assemblies
• Built to last for long-term service applications


Technical Specifications

• Part Number: D23MR30A

• Manufacturer: Cutler Hammer

• Product Type: Relay

• Series/Type: Type M

• Poles: 3

• Amperage Rating: 10 Amps

• Maximum Voltage: 300V AC

• Coil Voltage: 120 VAC, 60 Hz

• Contact Configuration: Reversible Contacts

• Enclosure Type: Open

• Dimensions:
  • Height: 2.38 in.
  • Width: 3.50 in.
  • Depth: 3.68 in.

Material Compliance and Certifications

The D23MR30A is designed for installation and operation within compatible electrical control systems. Installation, inspection, and maintenance should be performed by qualified personnel in accordance with applicable electrical codes, equipment manufacturer documentation, and workplace safety procedures. Compatibility with the intended application should be verified prior to installation.

Where It Works Best

• Industrial control panels
• Motor control systems
• Manufacturing equipment
• Machinery control circuits
• Commercial electrical control applications
• Automation systems
• Equipment refurbishment projects
• Maintenance and repair of existing electrical installations
• Legacy control systems utilizing compatible Type M relays

For maintenance professionals, electricians, and facility operators responsible for keeping electrical systems operational, the D23MR30A provides a practical replacement solution for compatible applications while maintaining the original equipment's intended control functionality.
