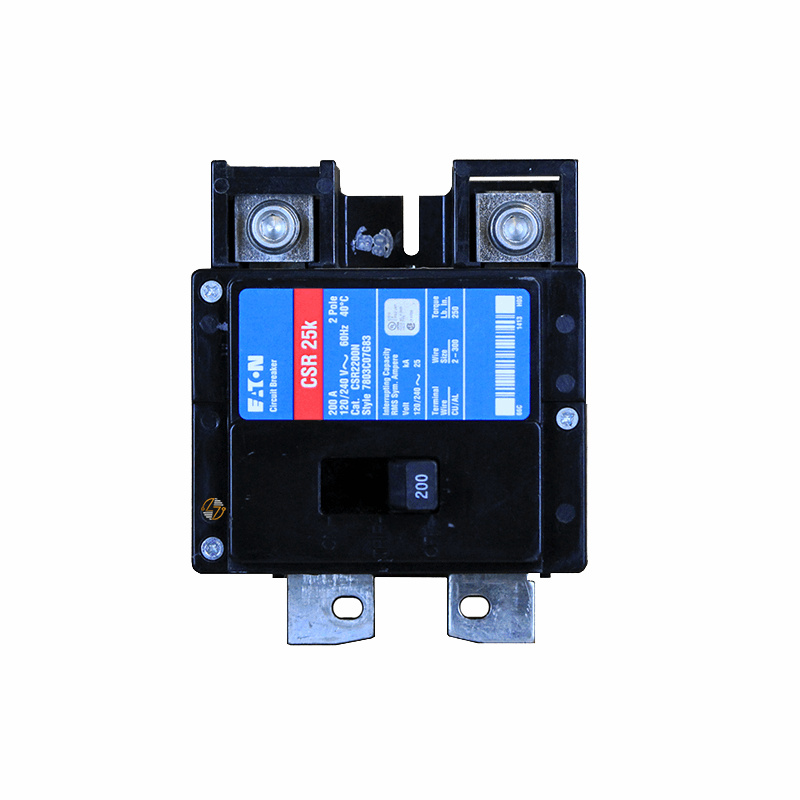

CSR2200N - 200Amp Circuit Breaker

CSR2200N - 200Amp Circuit Breaker

When dependable power distribution matters, the Eaton CSR2200N Main Circuit Breaker is designed to help keep electrical systems operating safely and efficiently. Rated at 200 amps and built as a 2-pole main breaker, it serves as the primary disconnect and overcurrent protection device in compatible electrical equipment. Whether you're replacing an existing breaker, upgrading service equipment, or working on a new installation, the CSR2200N provides the protection needed to help prevent damage from overloads and short circuits.

Designed for use with Type ECC Unit Enclosures, this breaker is commonly found in residential service equipment and light commercial electrical systems where a 200A main breaker is required. Its 120/240V rating makes it suitable for a wide range of service entrance and distribution applications, while the 25 kAIC interrupting rating helps provide protection during high fault-current conditions. Because it accepts conductor sizes from #2 AWG to 300 kcmil, electricians have flexibility when matching existing wiring or completing new installations.

Key Features and Benefits

• 200-amp main circuit breaker for service entrance and distribution applications
• Two-pole configuration for 120/240V AC electrical systems
• Designed for use in compatible Type ECC Unit Enclosures
• Provides primary disconnect and overcurrent protection
• 25 kAIC interrupting rating helps protect equipment during fault conditions
• Accepts conductor sizes from #2 AWG to 300 kcmil
• Compact design simplifies installation and replacement projects
• UL 489 listed for safety and performance compliance
• Manufactured to Eaton quality standards
• Backed by a limited lifetime warranty


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: CSR2200N

• UPC: 782113098463

• Product Type: Main Breaker

• Type: Standard Circuit Breaker

• Frame Type: CSR

• Main Circuit Breaker Series: CH

• Amperage Rating: 200A

• Voltage Rating: 120/240V AC

• Number of Poles: 2

• Interrupt Rating: 25 kAIC

• Wire Size Range: #2 AWG – 300 kcmil

• Enclosure Compatibility: Type ECC Unit Enclosures

• Dimensions:
  • Length: 5.3 in.
  • Width: 4.2 in.
  • Height: 3.52 in.
• Weight: 2.5 lb

• Warranty: Limited Lifetime


Material Compliance and Certifications

The Eaton CSR2200N is UL 489 certified, meeting recognized industry requirements for molded-case circuit breakers used in electrical distribution systems. This certification verifies that the breaker has been evaluated for safety, performance, and reliability when installed and operated according to applicable electrical codes and manufacturer specifications.

Where It Works Best

The CSR2200N is ideal for applications requiring a 200 amp main breaker in 120/240V electrical systems. It is commonly used in residential service equipment, meter-main combinations, electrical distribution systems, service entrance installations, panel upgrades, and light commercial facilities. Its combination of high interrupting capacity, broad conductor compatibility, and dependable overcurrent protection makes it well-suited for environments where safe, consistent electrical performance is essential.
