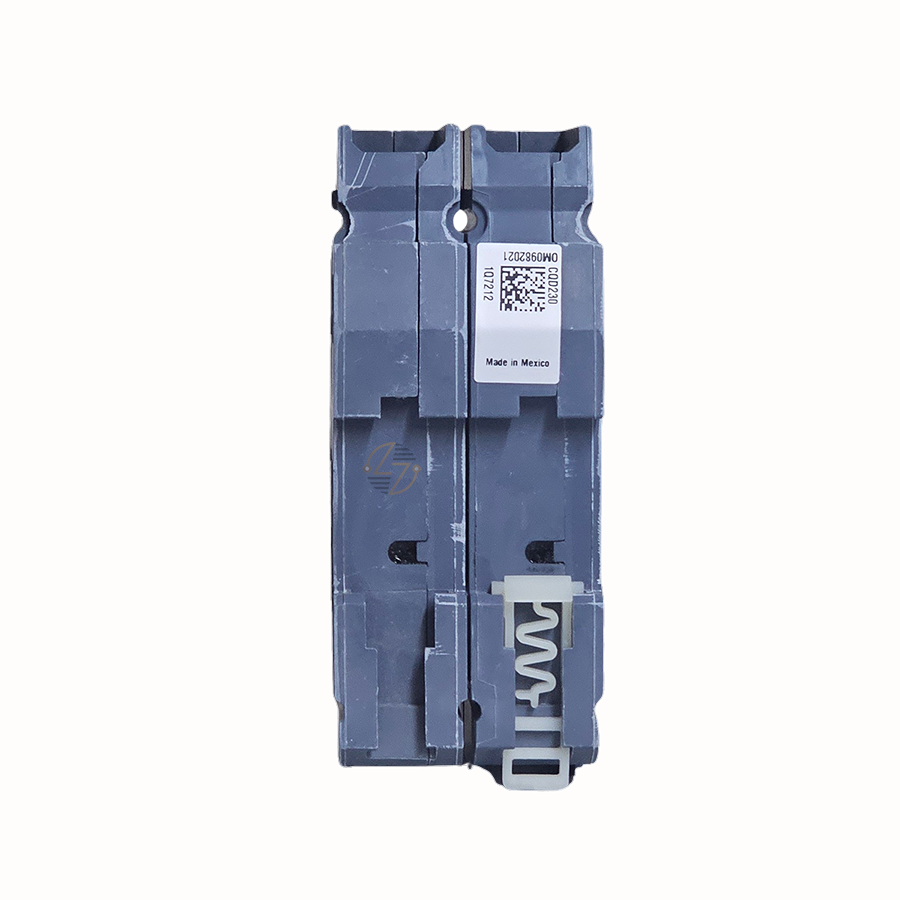

CQD230 - 30Amp Circuit Breaker
CQD230 - 30Amp Circuit Breaker
Couldn't load pickup availability
CQD230 - 30Amp Circuit Breaker
The CQD230 Siemens CQD miniature circuit breaker is a 30 Amp, 2-pole breaker used in real-world commercial and industrial panel setups where 480/277V circuits need reliable, everyday protection. You’ll usually find it inside lighting panels, control cabinets, and distribution boards, especially in buildings built around DIN rail layouts, which keep wiring organized and easy to follow during maintenance.
It’s rated for 480/277VAC systems with a 14kA interrupting capacity, making it a common choice for standard branch-circuit protection in commercial environments. The 2-pole design disconnects both conductors together, which is typically required for 277/480V lighting and distribution circuits.
At the end of the day, this is a practical, no-fuss breaker that fits into systems where you need proper protection, consistent fit, and easy replacement without changing the panel layout.
Key Features and Benefits
- 30 Amp, 2-pole breaker for 480/277V circuits
- Siemens CQD series DIN rail compatible design
- 14kA interrupting rating for branch protection
- Simple DIN rail installation and alignment
- Common in lighting and distribution panels
- Used in commercial and industrial applications
- Fits existing Siemens CQD panel layouts
- 2-pole disconnect for 277/480V systems
- Suitable for maintenance and retrofit work
- Designed for straightforward replacement use
Technical Specifications
- Catalog Number: CQD230
- Product Type: Miniature Circuit Breaker
- Series: CQD
- Amperage Rating: 30A
- Poles: 2
- Voltage Rating: 480/277VAC
- Interrupting Rating: 14kA
- Mounting Type: DIN Rail
- Application: Branch circuit protection
- Net Weight: approx. 1.581 lb
Material Compliance and Certifications
The CQD230 is manufactured in accordance with applicable UL and IEC standards for low-voltage circuit protection devices. It is intended for installation in compatible DIN rail systems and should be installed by qualified electrical personnel in accordance with all relevant electrical codes and manufacturer guidelines.
Where It Works Best
- Commercial lighting panels
- Industrial control cabinets
- 277/480V branch circuits
- DIN rail distribution systems
- Panel maintenance and replacements
- Building automation setups
- Tight electrical enclosures
- Siemens CQD-compatible installations
