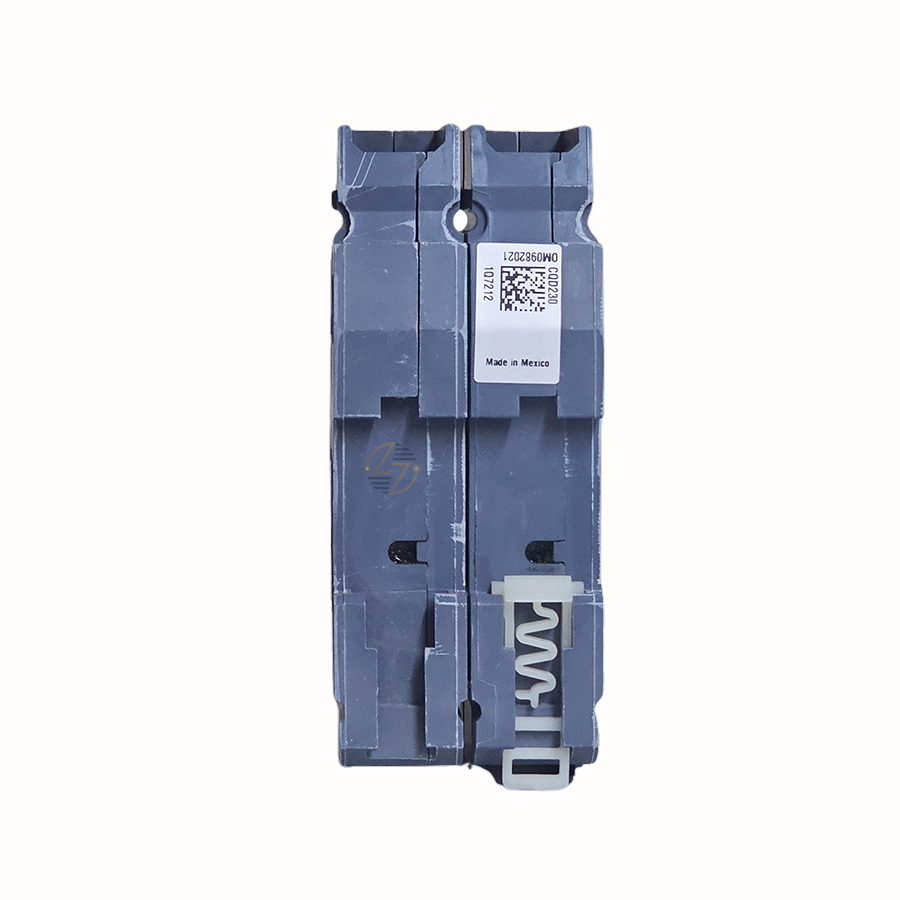

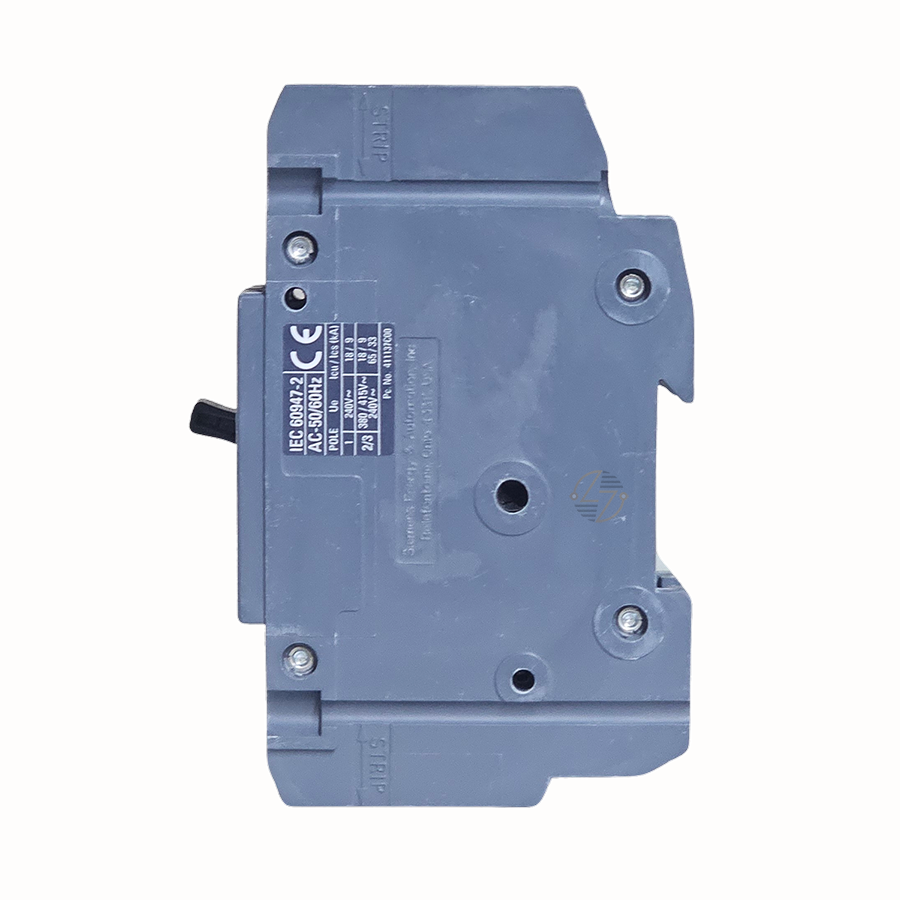

CQD220 - 20Amp Circuit Breaker
CQD220 - 20Amp Circuit Breaker
Couldn't load pickup availability
CQD220 - 20Amp Circuit Breaker
The CQD220 Siemens CQD miniature circuit breaker is a 20 Amp, 2-pole breaker used in real-world commercial and industrial panels where 480/277V circuits need dependable, everyday protection. You’ll usually find it in lighting panels, control cabinets, and distribution boards, especially in buildings that rely on DIN rail setups to keep wiring organized and easy to service later.
It’s rated for 480/277VAC systems and provides a 14kA interrupting capacity, making it suitable for typical commercial branch circuit protection. The 2-pole design disconnects both conductors together, which is standard for this voltage range and commonly used in lighting and distribution applications.
At the end of the day, it’s a practical breaker that does a simple job well—keeping circuits protected in systems where consistency, easy replacement, and clean panel organization matter most.
Key Features and Benefits
- 20 Amp, 2-pole breaker for 480/277V circuits
- Designed for Siemens CQD DIN rail systems
- 14kA interrupting rating for branch protection
- Compact DIN rail mount for quick installation
- Common in lighting and control panels
- Used in commercial and industrial electrical systems
- Fits organized multi-breaker panel layouts
- 2-pole disconnect for 277/480V applications
- Ideal for maintenance, retrofit, and new installs
- Straightforward, dependable circuit protection
Technical Specifications
- Catalog Number: CQD220
- Product Type: Miniature Circuit Breaker
- Series: CQD
- Amperage Rating: 20A
- Poles: 2
- Voltage Rating: 480/277VAC
- Interrupting Rating: 14kA
- Mounting Type: DIN Rail
- Application: Branch circuit protection
- Net Weight: approx. 1.451 lb
Material Compliance and Certifications
The CQD220 Siemens breaker is manufactured in accordance with applicable UL and IEC standards for low-voltage circuit protection equipment. It is intended for installation in compatible DIN rail systems and should always be installed by qualified electrical personnel in accordance with all applicable electrical codes and manufacturer guidelines.
Where It Works Best
- Commercial lighting panels
- Industrial control cabinets
- 277/480V branch circuit systems
- DIN rail distribution boards
- Electrical panel maintenance and upgrades
- Building automation systems
- Tight electrical enclosures
- Siemens-compatible installations
