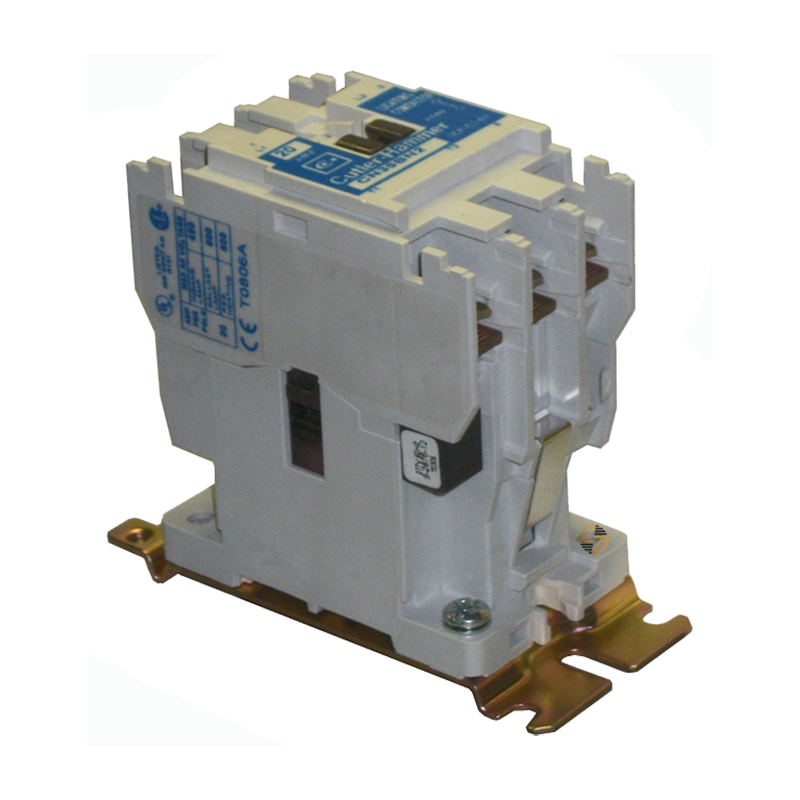

CN35BN2 - Cutler-Hammer Contactor

CN35BN2 - Cutler-Hammer Contactor

The CN35BN2 Eaton CN35 contactor is a 20 Amp, 3-pole motor control contactor used in everyday industrial and commercial control setups where motors need to be switched on and off through a control circuit. You’ll usually find this kind of contactor in HVAC equipment, pump systems, small machinery, and general motor control panels, where dependable switching is part of normal day-to-day operation.

It runs on a 120V AC coil, which is standard in many control circuits. With its 3-pole, 20-amp configuration, it handles typical motor switching for three-phase applications or other control configurations depending on how the system is wired. In practical use, it’s not complicated — it’s just a familiar, reliable piece that electricians install when they need something that fits into an existing CN35 system without extra adjustments.

At the end of the day, this contactor is used where consistency matters more than anything else — same footprint, same function, same straightforward operation in CN35-based control systems.

Key Features and Benefits

• 20A, 3-pole motor control contactor for industrial use
• Designed for Eaton CN35 control systems
• 120V AC coil for common control circuit compatibility
• Open-type design for enclosure mounting
• Used in HVAC, pumps, and light industrial machinery
• Suitable for three-phase motor switching
• Common replacement part in existing CN35 setups
• Fits existing control panel layouts without changes
• Straightforward electromechanical switching design
• Built for everyday motor control applications

Technical Specifications

• Catalog Number: CN35BN2
• Product Type: Motor control contactor
• Series: CN35
• Amperage Rating: 20A
• Poles: 3
• Coil Voltage: 120V AC
• Mounting Type: Open (enclosure required)
• Dimensions: 3.88 in H x 2.0 in W x 3.49 in D
• Control Type: Electromechanical contactor

Material Compliance and Certifications

The CN35BN2 Eaton contactor is intended for use in industrial motor control systems and must be installed by qualified electrical personnel. Installation should follow applicable electrical codes and manufacturer guidelines for safe operation within a properly rated enclosure.

Where It Works Best

• HVAC systems and air handling units
• Pump control systems
• Small industrial machinery
• Motor control panels and MCC setups
• Commercial building control systems
• Three-phase motor switching applications
• Replacement of existing CN35 contactors
• Industrial maintenance and repair work
