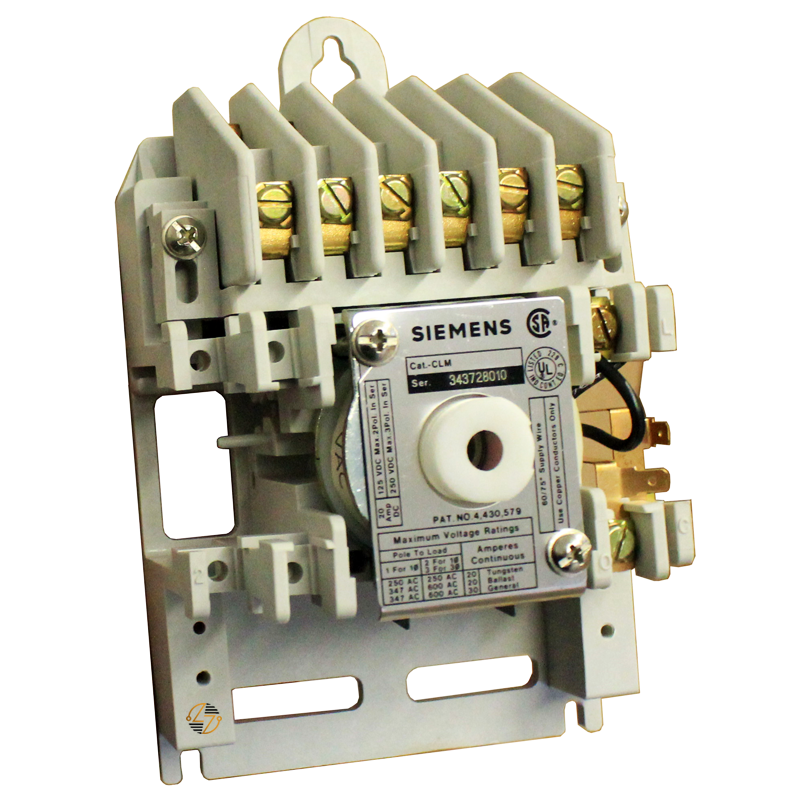

The CLM62031 Siemens lighting contactor is a 20 Amp, 6-pole mechanically held contactor used in larger lighting control systems where multiple circuits need to switch together from a single control point. You’ll typically find this type of device in commercial buildings, warehouses, campuses, and parking structures—basically anywhere lighting is grouped and controlled through a central panel instead of individual wall switches.

What makes this style of contactor practical is how it behaves once it switches. It’s mechanically held, so it only uses power while changing state. Once it turns on or off, it stays right where it’s set without needing continuous coil power. In real installations, that’s a simple but useful detail—especially in systems that run all day and night.

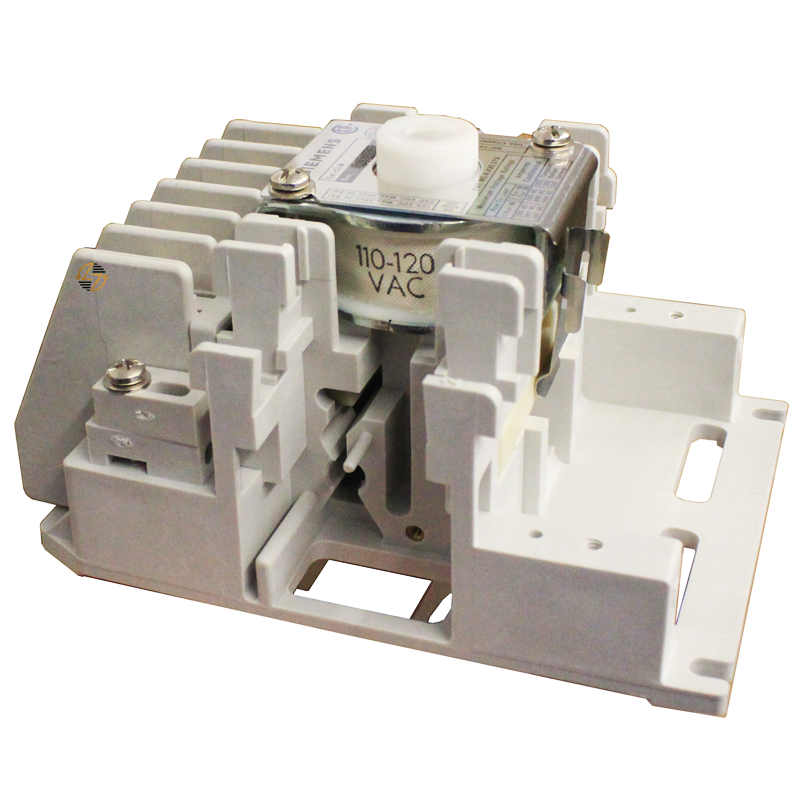

This unit operates on a 110–120V AC control coil (50/60 Hz) and gives you six normally open poles, allowing multiple lighting circuits to be controlled together. It’s an open-style device, meaning it’s designed to be mounted inside a proper enclosure as part of a lighting control panel. Wiring is straightforward with screw-type terminals for line, load, and coil connections, which helps keep installation consistent in existing setups.

Key Features and Benefits

• 20 Amp mechanically held lighting contactor for multi-circuit control
• 6-pole, 6 NO contact design for grouped switching
• 110–120V AC coil operation (50/60 Hz)
• Mechanically held design reduces continuous coil power use
• Suitable for tungsten, ballast, and resistive lighting loads
• Rated up to 600V AC systems
• Open-type construction for enclosure mounting
• Screw terminals for line, load, and coil wiring
• Common in commercial and industrial lighting systems
• Used in replacement and maintenance applications

Technical Specifications

• Catalog Number: CLM62031
• Product Type: Mechanically held lighting contactor
• Device Type: Open lighting contactor
• Amperage Rating: 20A
• Poles: 6-pole (6 NO contacts)
• Control Voltage: 110–120V AC (50/60 Hz)
• Operating Voltage: Up to 600V AC
• Mounting Method: Surface mount (enclosure required)
• Connection Type: Screw terminals
• Conductor Range: 18–10 AWG Cu
• Short-Circuit Rating: 5 kA
• Weight: approx. 2.6 lb
• Packaging Dimensions: approx. 1.457 x 1.102 x 0.713 in

Material Compliance and Certifications

The CLM62031 Siemens lighting contactor is manufactured to meet UL 508, NEMA ICS 2, and CSA 22.2 No. 14 standards for industrial control equipment. It is intended for installation inside a suitable enclosure and should be installed by qualified electrical personnel following applicable electrical codes and system requirements.

Where It Works Best

• Commercial lighting control systems with multiple zones
• Warehouses and industrial facilities
• Schools, campuses, and public buildings
• Parking structures and exterior lighting systems
• Central lighting control panels
• Energy management and scheduling systems
• Retrofit or replacement of existing contactor setups
• Multi-circuit lighting control applications
