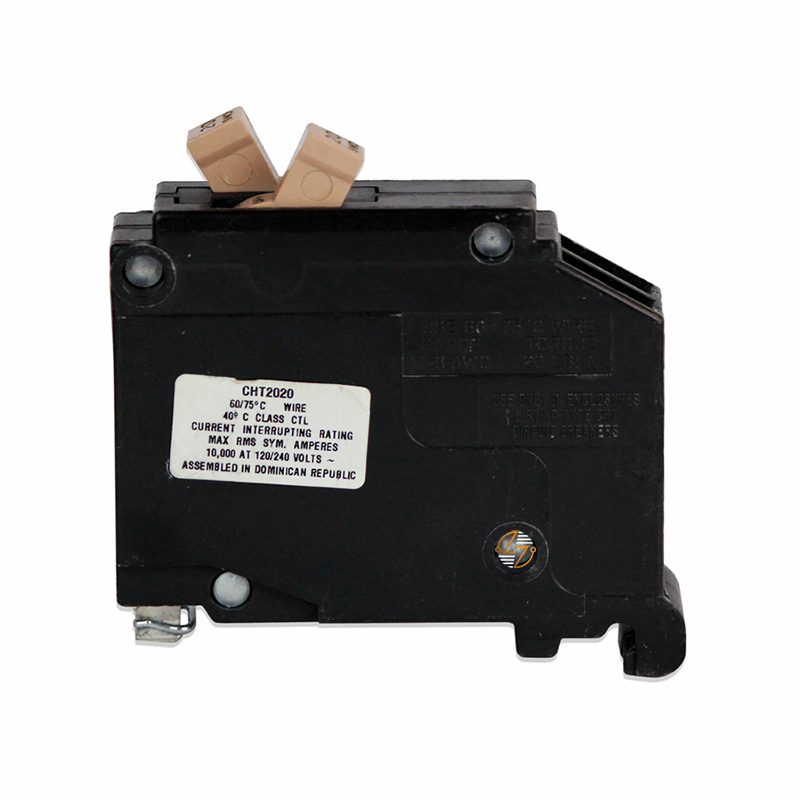

The CHT2020 Eaton CH thermal magnetic circuit breaker is a 20/20 amp twin single-pole breaker designed for use in Eaton Type CH loadcenters. In practical terms, this is the kind of breaker you’ll find in residential and light commercial panels where two separate 20-amp circuits need to be handled in a single breaker space. It’s commonly used in systems that are already built around Eaton CH equipment, especially when panel space is limited but additional branch circuits are still required.

In the field, the CHT2020 is often used during maintenance or small system expansions where the goal is to keep everything consistent with the original panel design. Instead of adding extra hardware or changing the layout, this breaker fits directly into compatible Eaton CH loadcenters. That makes it a practical option when you’re working within an existing system and need a straightforward replacement or addition.

Each side of the breaker provides 20 amps of protection and operates independently within a shared twin design. Inside, it uses a thermal-magnetic trip mechanism that responds to both overload conditions and short circuits. That means it handles everyday electrical demand while still reacting quickly if a fault occurs.

Key Features and Benefits

• Twin 20/20 amp single-pole breaker in one compact unit
• Designed for Eaton Type CH loadcenters
• Plug-on installation for direct compatibility with CH panels
• Thermal magnetic protection for overloads and short circuits
• Two independent 20-amp circuits in a single breaker space
• 120/240V rating for residential and light commercial use
• 10kA interrupting rating for standard fault protection
• Accepts #14–8 AWG copper or aluminum wire
• Switching duty and HCAR rated for broader applications
• Helps maintain original panel layout without modifications

Technical Specifications

• Catalog Number: CHT2020
• Product Type: Thermal magnetic circuit breaker (twin)
• Breaker Type: Type CH / CHT
• Amperage Rating: 20-20A
• Poles: Single-pole (twin breaker design)
• Voltage Rating: 120/240V
• Frequency Rating: 50–60 Hz
• Interrupting Rating: 10 kAIC
• Mounting Method: Plug-on
• Wire Size: #14–8 AWG Cu/Al
• Dimensions: 3.2 in W x 2.6 in H x 0.7 in D
• Weight: 0.29 lb

Material Compliance and Certifications

The CHT2020 is UL Listed (UL 489) and designed for use in Eaton Type CH loadcenters. It should always be installed by a qualified electrical personnel in accordance with applicable electrical codes and manufacturer instructions.

Where It Works Best

• Eaton Type CH loadcenters and panelboards
• Residential branch circuit applications
• Light commercial electrical systems
• Panels where space is limited but multiple circuits are needed
• Maintenance and replacement work in existing CH installations
• 120/240V distribution systems
• Situations where maintaining the original panel configuration is important
