CHT1520 - Duplex 15/20 Circuit Breaker

CHT1520 - Duplex 15/20 Circuit Breaker

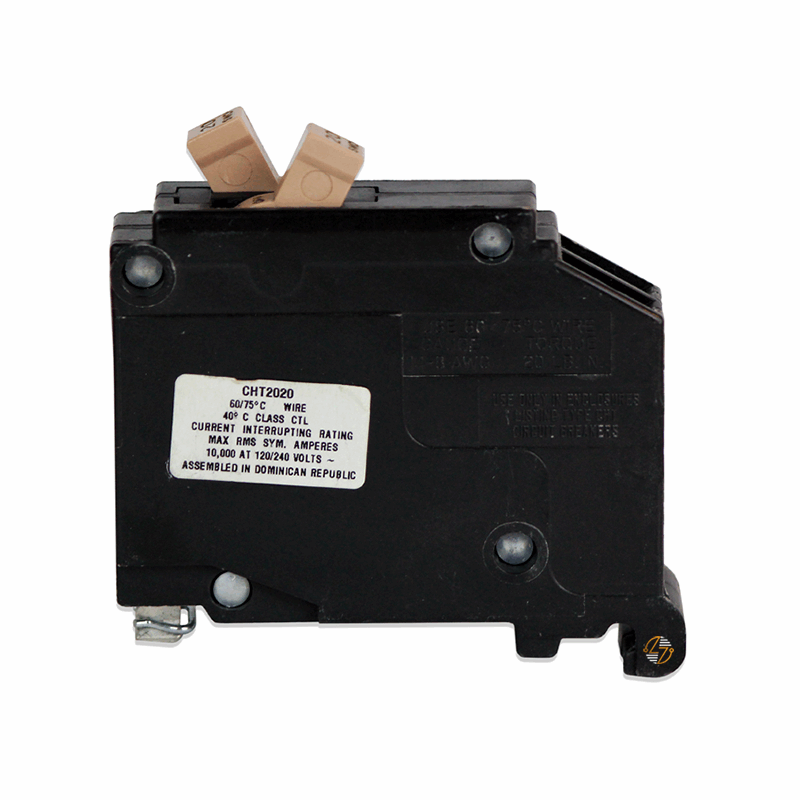

The CHT1520 Eaton CH breaker is a 20/15-amp twin single-pole thermal-magnetic circuit breaker designed for Eaton Type CH load centers. In everyday electrical work, this is the kind of breaker you reach for when you need two separate circuits but don’t have extra room in the panel. It gives you flexibility without forcing changes to an already existing setup.

Most of the time, you’ll see the CHT1520 used in panels that are already installed and in service. Instead of reworking the layout or adding equipment, this breaker lets you fit two independent branch circuits into a single breaker space. It plugs directly into compatible Eaton CH loadcenters, so installation stays simple and consistent with the rest of the system.

On the inside, it uses a thermal magnetic trip system that responds to both overloads and short-circuit conditions. That means it handles the everyday load on a circuit and reacts quickly if something goes wrong electrically. Each side of the breaker works independently, giving you a 20-amp circuit on one side and a 15-amp circuit on the other.

Key Features and Benefits

• Twin breaker design: 20A and 15A single-pole circuits in one unit
• Built for Eaton Type CH loadcenters and panelboards
• Plug-on installation for easy replacement in compatible systems
• Thermal magnetic protection for overloads and short circuits
• Two independent circuits in a single breaker footprint
• 120/240V rating for residential and light commercial use
• 10kA interrupting rating for standard fault protection
• Accepts #14–8 AWG copper or aluminum wire
• Switching duty and HCAR rated for broader use cases
• Helps add circuits without changing the existing panel layout

Technical Specifications

• Catalog Number: CHT1520
• Product Type: Thermal magnetic circuit breaker (twin)
• Breaker Type: Type CH / CHT
• Amperage Rating: 20-15A
• Poles: Single-pole (twin design)
• Voltage Rating: 120/240V
• Frequency Rating: 50–60 Hz
• Interrupting Rating: 10 kAIC
• Mounting Method: Plug-on
• Wire Size: #14–8 AWG Cu/Al
• Dimensions: 3.2 in W x 2.6 in H x 0.7 in D
• Weight: 0.29 lb

Material Compliance and Certifications

The CHT1520 is UL Listed (UL 489) and designed for use in Eaton Type CH loadcenters. It should be installed by a qualified electrician and used in accordance with applicable electrical codes and manufacturer guidelines.

Where It Works Best

• Eaton Type CH loadcenters and panelboards
• Residential branch circuit applications
• Light commercial electrical systems
• Panels where space is limited but extra circuits are needed
• Maintenance and replacement work in existing CH installations
• 120/240V distribution systems
• Situations where keeping the original panel layout is important
