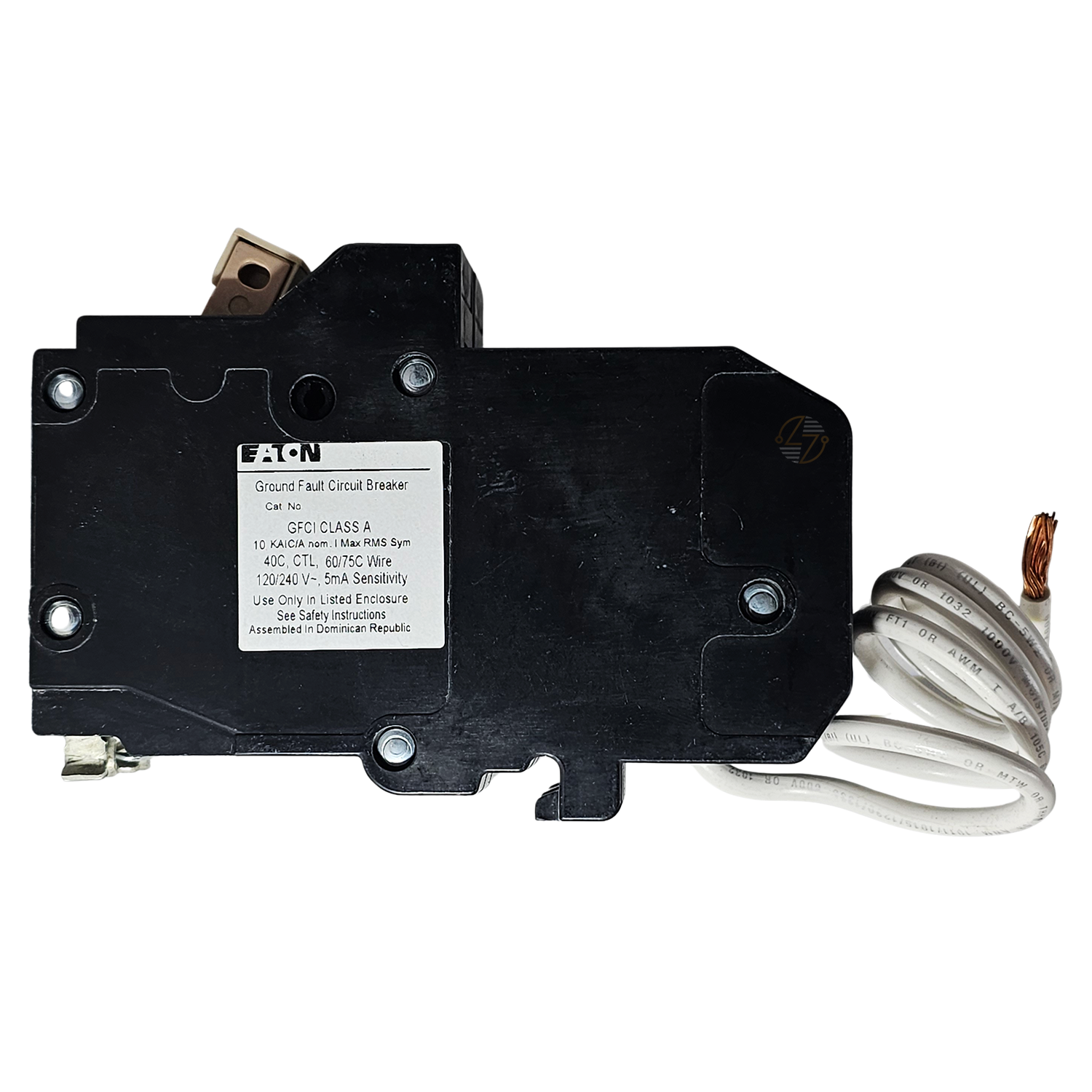

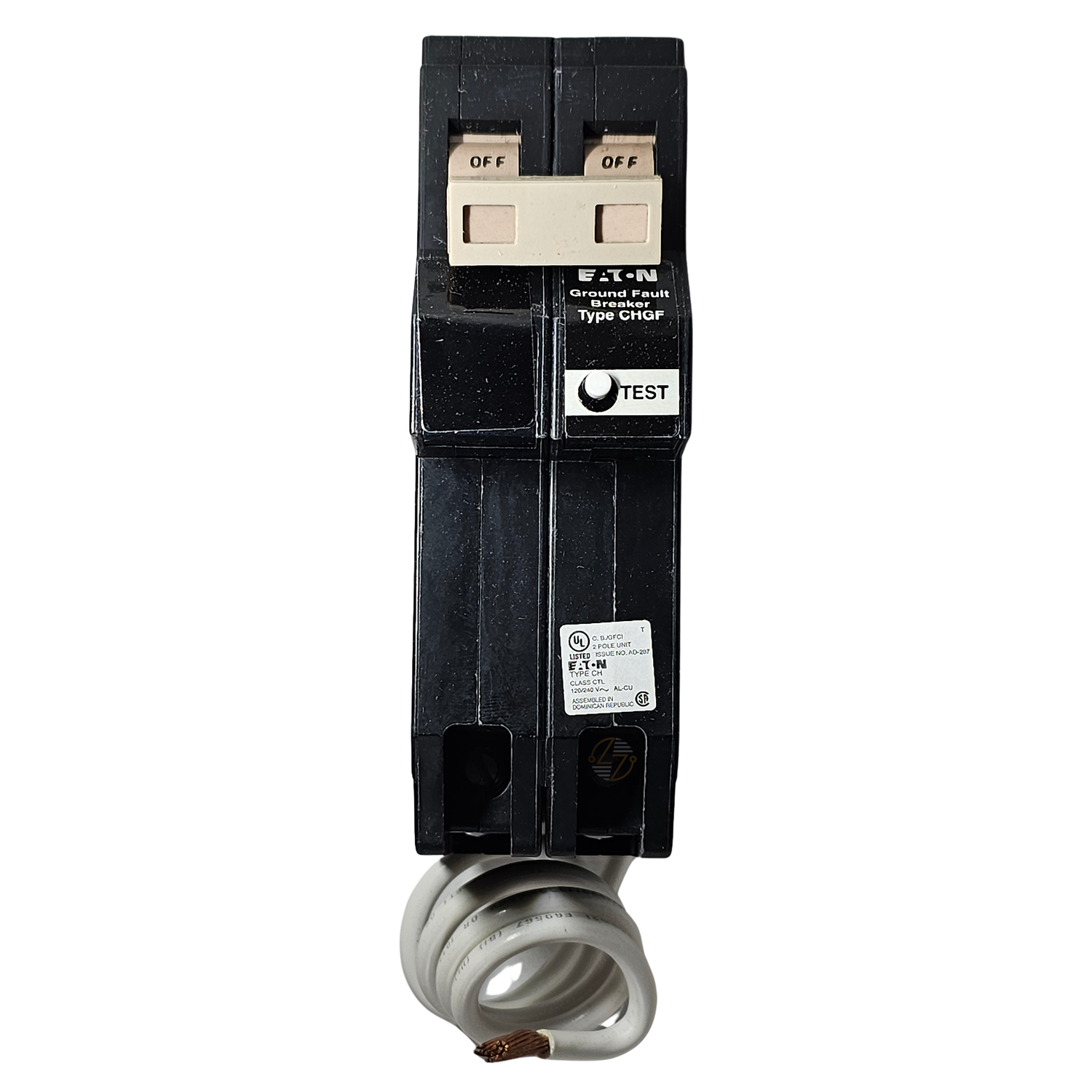

CHN245GF - 45 Amp GFCI Circuit Breaker

CHN245GF - 45 Amp GFCI Circuit Breaker

If you need a breaker that does more than just sit there and trip when overloaded, the CHN245GF 45 Amp 2-pole is built for that job. It’s made for Eaton CH panels and adds ground fault protection where it actually matters—places where a standard breaker just isn’t enough. This one monitors the circuit continuously. If it picks up a ground fault, it cuts power right away. That’s what helps prevent shock risks and keeps equipment from getting damaged. It’s also a common trip breaker, so both poles shut off together. You don’t end up with half the circuit still live, which is exactly what you want in a fault situation. Install is straightforward. It’s a plug-on style, so it snaps into place without a fight, and the pigtail neutral is there for the GFCI connection. Nothing complicated, just wire it and move on.

Key Features and Benefits

• GFCI Protection: Trips fast when a ground fault is detected
• 45 Amp / 2-Pole: Works on 120/240V circuits
• Common Trip: Both poles disconnect at the same time
• Plug-On Mount: Seats easily into CH panels
• Pigtail Neutral: Needed for proper GFCI wiring
• HACR Rated: Fine for HVAC and refrigeration use
• CH Type Breaker: Fits Eaton CH load centers

Technical Specifications

• Part Number: CHN245GF
• Amperage: 45A
• Poles: 2
• Voltage: 120/240VAC
• Interrupt Rating: 10k A.I.C.
• Frame Type: CH
• Mounting: Plug-On
• Trip Type: Common Trip
• Dimensions: 3.19" H x 1.5" W x 2.5" D

Material Compliance and Certifications

• Industry Standards: This breaker meets standard UL requirements for circuit protection.
• HACR Rated: It’s also HACR rated, so it can be used with heating and cooling equipment without any issues.

Where It Works Best

• You’ll usually see this used in: Panels where ground fault protection is required Garages, basements, kitchens—anywhere moisture is a factor AC units and refrigeration equipment Small commercial setups that need reliable protection
