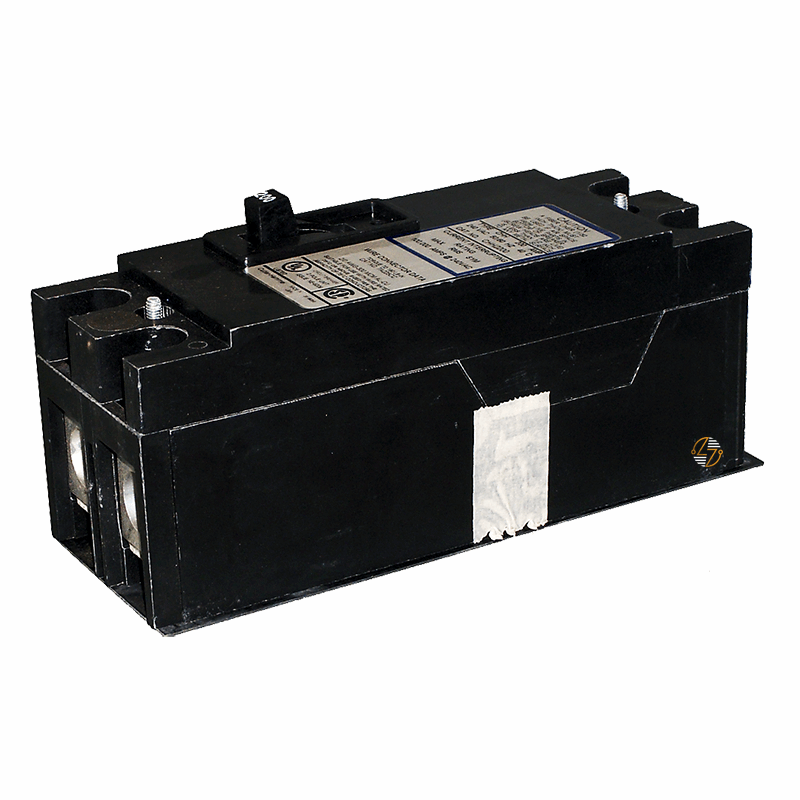

CHH2200X - 200Amp Circuit Breaker

CHH2200X - 200Amp Circuit Breaker

The CHH2200X 200 Amp molded-case circuit breaker is typically used in existing CHH-series electrical systems, where the goal is simple: replace like-for-like and keep everything working as it was originally installed. In most cases, this isn’t about redesigning a panel or upgrading components—it’s about getting the same breaker type back into service to keep the system consistent.

You’ll usually find this breaker on 240 VAC distribution or feeder circuits in commercial or industrial facilities. The two-pole design ensures that both conductors are disconnected simultaneously, which is important when you’re isolating equipment for maintenance or dealing with a fault condition.

The 100 kA interrupting rating at 240 VAC is a key feature of this model. It indicates the breaker is intended for systems with high fault current, and the replacement must match the original equipment's short-circuit rating.

This unit also includes a non-interchangeable trip mechanism, meaning the protection settings are fixed from the factory. There’s no swapping components or adjusting the trip unit in the field.

Most of the time, the CHH2200X is used during maintenance or repair work—pull the old breaker, verify the ratings, and install the matching unit.

Key Features and Benefits

• 200 Amp, 2-pole molded case circuit breaker
• Designed for CHH-series electrical systems already in service
• Works in 240VAC feeder and distribution applications
• 100kA interrupting rating at 240VAC
• Non-interchangeable trip unit with fixed factory settings
• Used for direct replacement in existing installations
• Maintains original panel layout and breaker footprint
• Common in commercial and industrial maintenance work
• Built for use in established electrical infrastructure

Technical Specifications

• Part Number: CHH2200X
• Product Type: Molded Case Circuit Breaker
• Type: CHH
• Amperage Rating: 200 Amps
• Poles: 2
• Voltage Rating: 240VAC
• Interrupting Rating: 100kAIC @ 240VAC
• Trip Unit: Non-Interchangeable
• Dimensions: 2.75 in W x 7.50 in H x 3.06 in D
• Approx. Shipping Weight: 7.00 lbs

Material Compliance and Certifications

• The CHH2200X is intended for use in listed electrical distribution systems where matching breaker type, ratings, and physical configuration is required.

Where It Works Best

• Existing CHH-series panels and switchgear
• 240VAC feeder and branch circuit systems
• Commercial and industrial electrical rooms
• Maintenance and like-for-like replacement work
• Facilities with established electrical infrastructure
