CHH2200H2X - 200Amp Circuit Breaker

CHH2200H2X - 200 Amp Circuit Breaker

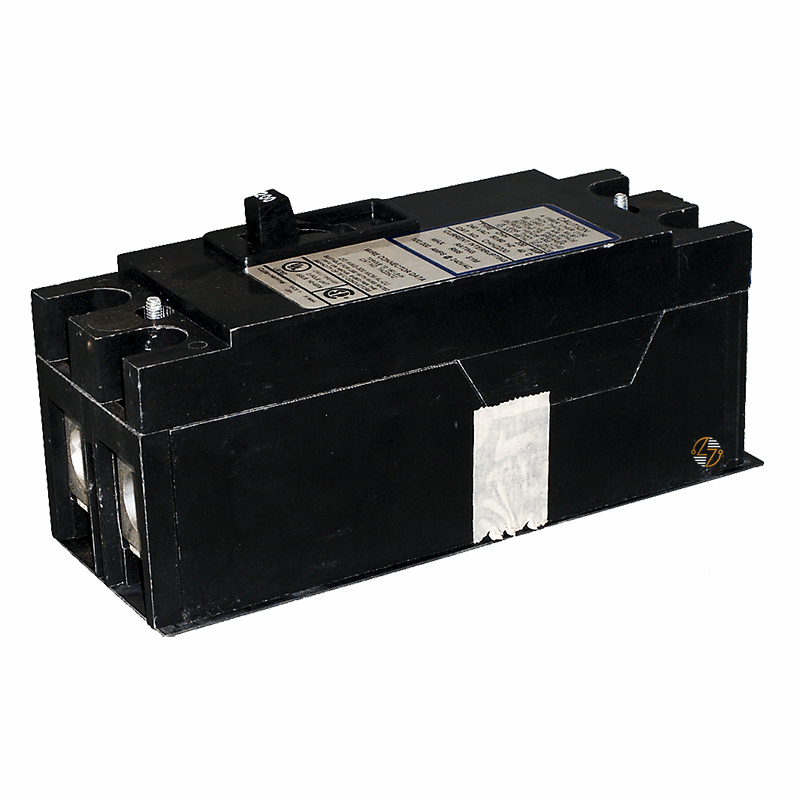

The CHH2200H2X molded case circuit breaker is a 2-pole, 200-amp breaker designed for use in electrical distribution systems that require dependable overcurrent protection at up to 240VAC. Built on the CHH2 frame platform, this breaker incorporates a non-interchangeable trip unit, providing consistent and predictable tripping characteristics aligned with the factory configuration. With an interrupting capacity of 25kA at 240VAC, the CHH2200H2X is intended to help protect electrical circuits from damage caused by overloads and short circuits. Its molded case construction supports long-term use in demanding electrical environments where stable circuit protection and proper equipment fit are essential. The design aligns with existing CHH2 frame installations, making it suitable for maintaining or servicing compatible systems where a correctly rated replacement breaker is required.

Key Features and Benefits

• 200 Amp current rating: suitable for medium- to large-capacity electrical circuits
• 2-pole configuration: designed for protection of 240VAC electrical systems
• 25kA interrupting capacity at 240VAC: to help manage fault conditions within rated limits
• CHH2 frame type: designed for compatibility with equipment that uses this frame format
• Non-interchangeable trip unit: factory-configured for consistent trip response
• Molded case construction: designed for durability and long-term service life
• Form, fit, and functional replacement: for compatible CHH2-frame circuit breaker installations

Technical Specifications

• Part Number: CHH2200H2X
• Product Type: Molded Case Circuit Breaker
• Poles: 2
• Amperage Rating: 200A
• Voltage Rating: 240VAC
• Interrupting Capacity (A.I.C.): 25kA @ 240VAC
• Frame Type: CHH2
• Trip Unit: Non-Interchangeable
• Approximate Shipping Height: 7.5 inches
• Approximate Shipping Weight: 2.75 lbs

Material Compliance and Certifications

• Industry Standards: The CHH2200H2X circuit breaker is manufactured in accordance with widely recognized electrical equipment standards for molded case circuit breakers used in commercial and industrial distribution systems.
• UL Standards: Units are typically designed to meet UL listing requirements and applicable North American electrical safety standards for molded case circuit breakers. Installations should always follow applicable electrical codes and manufacturer guidelines.

Where It Works Best

• The CHH2200H2X is commonly used in electrical distribution equipment that requires a 200-amp, 2-pole breaker within the CHH2 frame family. Typical applications include: Commercial electrical panels and distribution boards Industrial control panels and machinery disconnect systems Facility power distribution equipment operating at 240VAC Maintenance or replacement in compatible legacy electrical systems requiring the same frame and rating configuration
