CHH2200H2 - 200Amp Circuit Breaker

CHH2200H2 - 200Amp Circuit Breaker

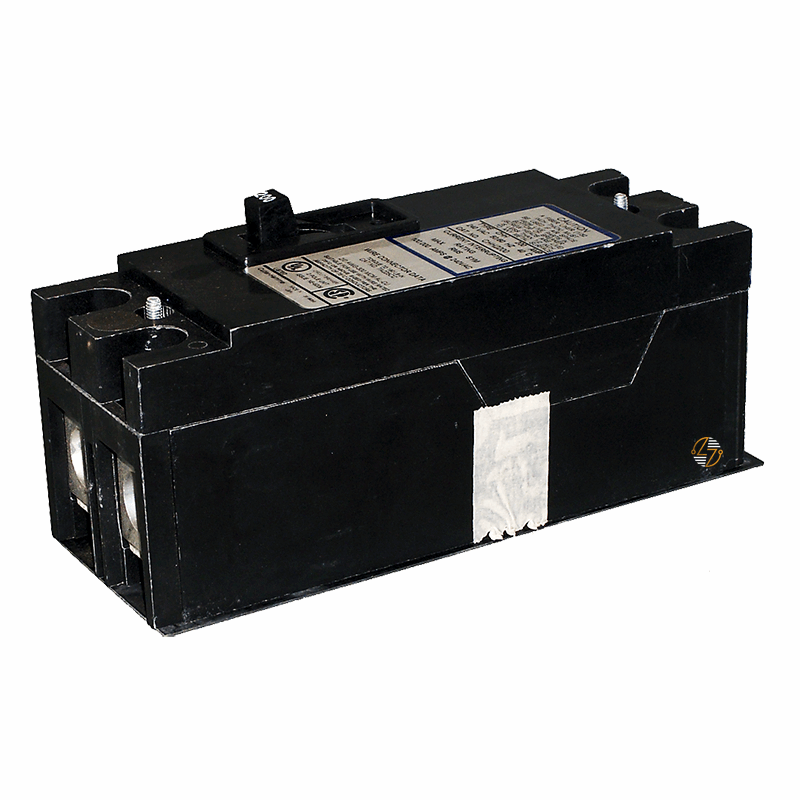

The CHH2200H2 is a 200 Amp, 2-pole CHH2 molded case circuit breaker used in your commercial and industrial electrical systems. It shows up most often in switchboards, panelboards, and feeder circuits where CHH2-series breakers were originally installed.

In most cases, this breaker is needed as a replacement for one already in service. The goal is usually straightforward—match the existing breaker so the equipment stays the same and continues operating as it was originally set up.

This model has a 25kA interrupting rating at 240VAC and a non-interchangeable trip unit. The two-pole design operates both poles together and is used in applications where that configuration is required.

These breakers are commonly found in facilities that have been running for years—manufacturing plants, commercial buildings, schools, and other sites with established electrical distribution systems. When your replacement is needed, using the same type helps avoid changes to the existing setup and keeps maintenance simple.

Key Features and Benefits

• 200 Amp current rating
• 2-pole molded case circuit breaker
• CHH2 series design
• 25kA interrupting rating at 240VAC
• Non-interchangeable trip unit
• Used for replacement in existing CHH2 systems
• Fits compatible switchboards and panelboards
• Common in commercial and industrial electrical systems
• Supports feeder and branch circuit applications
• Helps maintain existing equipment configuration
• Built for use in long-running electrical installations

Technical Specifications

• Part Number: CHH2200H2
• Type: CHH2
• Product Type: Molded Case Circuit Breaker
• Amperage Rating: 200 Amps
• Poles: 2
• Interrupting Rating: 25kAIC @ 240VAC
• Trip Unit: Non-Interchangeable
• Width: 2.75 in.
• Height: 7.50 in.
• Depth: 3.06 in.
• Dimensions: 2.75"W x 7.50"L x 3.06"D
• Approximate Shipping Weight: 7.00 lbs.

Material Compliance and Certifications

• This breaker is intended for installation by qualified electrical personnel in compatible equipment. Installation should follow applicable electrical codes and the requirements of the system it is being used in. Compatibility should always be confirmed before installation.

Where It Works Best

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Warehouses and distribution centers
• Schools and campuses
• Healthcare facilities
• Municipal buildings
• Switchboards and panelboards
• Existing CHH2-series equipment
• Maintenance and replacement work

When a system calls for a CHH2 200 Amp breaker with these ratings, the CHH2200H2 is typically used as a direct replacement to keep the installation consistent.
