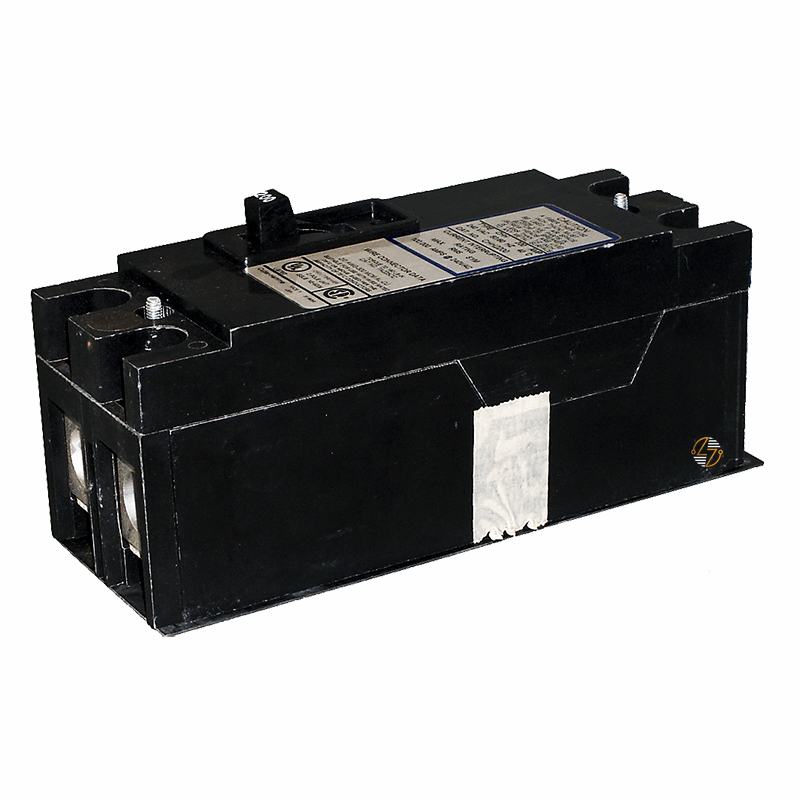

CHH2100H2 - 100Amp Circuit Breaker

CHH2100H2 - 100Amp Circuit Breaker

When you're maintaining or servicing an existing electrical distribution system, finding the correct replacement breaker is essential. The CHH2100H2 is a 100 Amp, 2-pole molded case circuit breaker designed for applications that require a CHH2-series breaker with a 25kA interrupting rating at 240VAC. Built with a non-interchangeable trip unit, this breaker helps maintain the original configuration of compatible equipment while providing dependable protection against overloads and short circuits.

Whether you're working in a commercial facility, industrial plant, or another power distribution environment, the CHH2100H2 offers the ratings and physical dimensions needed for many existing installations. Its molded case design is built to last and supports form, fit, and functional replacement requirements when keeping electrical systems operating as originally designed.

Rather than changing the design of an existing system, this breaker is typically selected to maintain consistency within installed equipment. Matching the original breaker type can help simplify maintenance planning, support equipment uptime, and ensure the electrical system continues operating according to its intended design. For facilities maintaining legacy electrical infrastructure, the CHH2100H2 provides the form, fit, and ratings needed for a straightforward replacement solution.

Key Features and Benefits

• 100 Amp current rating for branch and feeder circuit protection
• Two-pole configuration for compatible 240VAC applications
• CHH2 series molded case circuit breaker
• Non-interchangeable trip unit helps maintain original equipment specifications
• Provides protection against overloads and short-circuit conditions
• 25kAIC interrupting rating at 240VAC
• Built to last in commercial and industrial environments
• Supports form, fit, and functional replacement needs
• Compatible with applications requiring CHH2-type circuit protection
• Compact design for installation in compatible electrical equipment
• Commonly used in maintenance, repair, and retrofit projects
• Helps preserve existing electrical system configurations

Technical Specifications

• Part Number: CHH2100H2

• Type: CHH2

• Product Type: Molded Case Circuit Breaker

• Amperage Rating: 100 Amps

• Poles: 2

• Voltage Rating: 240VAC

• Interrupting Rating: 25kAIC @ 240VAC

• Trip Unit: Non-Interchangeable

• Dimensions:
  • Width: 2.75 in.
  • Height: 7.50 in.
  • Depth: 3.06 in.
• Approximate Shipping Weight: 7.00 lbs.


Material Compliance and Certifications

• The CHH2100H2 is manufactured for use in compatible electrical distribution equipment and is intended to be installed and serviced by qualified electrical professionals.
• It is commonly used in replacement, maintenance, and service applications where maintaining the original breaker configuration is important.
• Installation should comply with all applicable national, state, local, and facility electrical codes and safety requirements.
• Compatibility with existing equipment and system requirements should always be verified before installation.

Where It Works Best

• Commercial electrical distribution systems
• Industrial facilities and manufacturing plants
• Distribution panels and panelboards
• Switchboards and power distribution equipment
• Feeder circuit protection applications
• Equipment replacement and maintenance projects
• Existing CHH2-series breaker installations
• Facilities maintaining legacy electrical infrastructure
• Electrical systems requiring 100 Amp, 2-pole circuit protection
• Applications requiring a 25kA interrupting rating at 240VAC
• Projects where preserving original form, fit, and function is important
