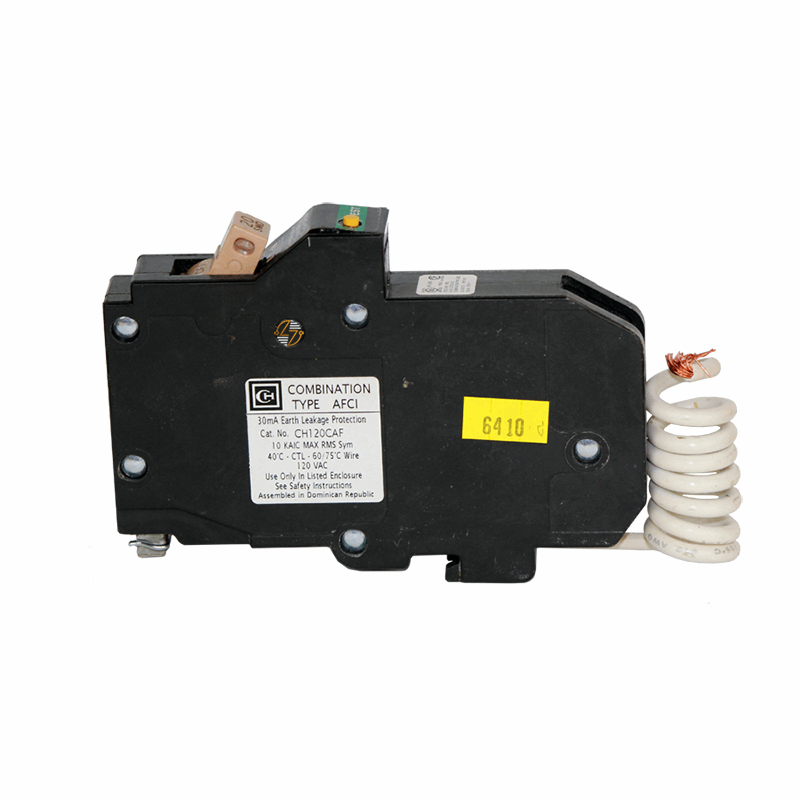

CHFCAF120 - 20Amp Circuit Breaker

CHFCAF120 - 20Amp Circuit Breaker

The Eaton CHFCAF120 is a 20 Amp single-pole Combination AFCI circuit breaker designed for use in compatible Eaton Type CH loadcenters. It's commonly used on residential branch circuits where arc fault protection is required and is often installed when replacing an existing CH-series AFCI breaker or maintaining an Eaton CH panel.

Unlike a standard circuit breaker, the CHFCAF120 is designed to detect certain types of arc faults that can occur from damaged wiring, loose electrical connections, worn insulation, or deteriorated conductors. When an arc fault is detected, the breaker interrupts power to the circuit. It also provides traditional thermal-magnetic protection against overloads and short circuits.

With a 20-amp rating, 120/240V capability, and a 10 kAIC interrupt rating, this breaker is commonly used on receptacle circuits, lighting circuits, bedrooms, living areas, home offices, hallways, and other residential branch circuits where AFCI protection may be required by code.

Whether you're replacing a failed breaker, matching an existing panel configuration, or completing routine electrical maintenance, the CHFCAF120 provides the proper fit for approved Eaton CH loadcenters and is built to last.

Key Features and Benefits

• Genuine Eaton Type CH combination AFCI circuit breaker
• 20 Amp current rating for branch circuit protection
• Single-pole configuration
• Combination Arc Fault Circuit Interrupter (AFCI) protection
• Detects hazardous arc fault conditions associated with damaged wiring and loose electrical connections
• Thermal-magnetic protection against overloads and short circuits
• Plug-on design for installation in compatible Type CH loadcenters
• Pigtail neutral connection for AFCI functionality
• 120/240V voltage rating
• 10 kAIC interrupting capacity
• Switching Duty Rated
• Helps support residential electrical safety
• Suitable for applications requiring AFCI protection
• Compact footprint helps maximize available panel space
• Backed by a limited lifetime warranty

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: CHFCAF120

• UPC: 786685546186

• Product Type: AFCI Circuit Breaker

• Series: CH

• Type: Plug-On Branch Feeder Arc Fault Combination Circuit Breaker

• Amperage Rating: 20 Amps

• Number of Poles: 1 Pole

• Voltage Rating: 120/240V

• Interrupt Rating: 10 kAIC

• Connection Type: Pigtail

• Main Circuit Breaker Family: CH

• Compatible Load Centers: Type CH Loadcenters

• Length/Depth: 6 in.

• Height: 1.25 in.

• Width: 3.5 in.

• Weight: 0.5 lb.

• Warranty: Limited Lifetime


Material Compliance and Certifications

• UL Listed
• HACR Rated
• Switching Duty Rated
• Manufactured to meet applicable industry standards for circuit protection devices
• Designed for installation in approved Eaton Type CH electrical distribution equipment
• Suitable for residential electrical systems requiring AFCI protection
• Supports code-compliant branch circuit protection when installed in accordance with applicable electrical codes and manufacturer guidelines

Where It Works Best

The Eaton CHFCAF120 is commonly used in:

• Residential Type CH loadcenters
• New home construction projects
• Electrical panel upgrades and remodels
• Bedroom circuits
• Living rooms and family rooms
• Dining rooms and hallways
• Home offices
• General-purpose receptacle circuits
• Residential lighting circuits
• AFCI-protected branch circuits required by local building codes
• Replacement of existing compatible Eaton CH AFCI breakers
