CHB350 - 50Amp Circuit Breaker

CHB350 - 50 Amp Circuit Breaker

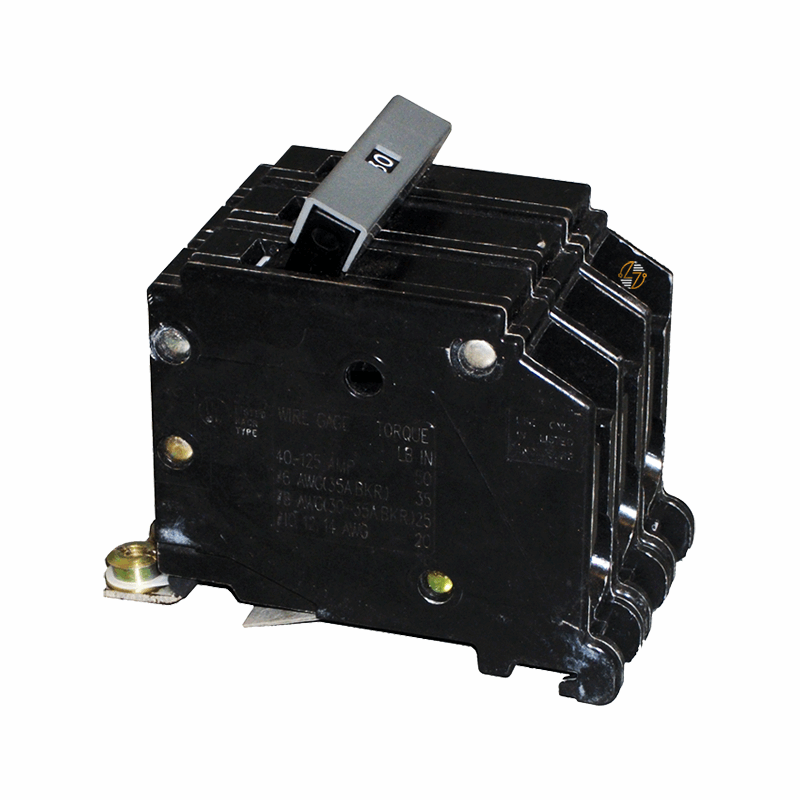

The CHB350 circuit breaker is a 3-pole, 50-amp bolt-on breaker designed for use in electrical distribution systems requiring dependable overcurrent protection at up to 240VAC. Built within the CHB frame type, this breaker is intended for installations where a secure bolt-on connection is required to maintain a stable electrical interface with compatible panelboards. With a 10kA A.I.C. interrupting rating, the CHB350 helps protect circuits and equipment by interrupting fault currents within its rated capacity. Its three-pole configuration makes it suitable for managing multi-phase circuits commonly found in commercial and industrial electrical panels. The compact design allows it to fit properly into panelboards designed for CHB frame breakers, helping ensure proper form, fit, and function when replacing an existing unit in compatible systems. Like many electrical components designed for long service life, this breaker is built to last and supports safe operation in legacy power distribution environments when installed according to applicable electrical standards.

Key Features and Benefits

• 50 Amp Rating – Provides overcurrent protection for circuits requiring a 50A capacity.
• 3-Pole Configuration – Designed for multi-phase electrical systems and equipment.
• Bolt-On Mounting Style – Secures directly to compatible panelboards, creating a firm and stable electrical connection.
• 10kA Interrupting Rating at 240VAC – Designed to safely interrupt fault currents within the rated capacity.
• CHB Frame Compatibility – Fits panelboards and systems designed for CHB-series breakers.
• Form, Fit, and Function Replacement – Suitable for maintaining existing electrical distribution systems using CHB-type breakers.
• Durable Construction – Built for long service life in properly maintained electrical installations.

Technical Specifications

• Part Number: CHB350

• Amperage Rating: 50 Amps

• Number of Poles: 3

• Voltage Rating: 240 VAC

• Interrupting Rating (A.I.C.): 10kA @ 240VAC

• Frame Type: CHB

• Mounting Style: Bolt-On

• Approximate Shipping Height: 3.0 in

• Approximate Shipping Weight: 2.25 lbs


Material Compliance and Certifications

• Industry Standards: Circuit breakers used in power distribution systems are typically manufactured to meet recognized electrical safety and performance standards.
• UL Standards: When installed in compatible equipment and maintained according to electrical codes, CHB-frame breakers are commonly designed to align with applicable UL listing requirements and industry electrical standards for molded case circuit breakers. Always confirm compatibility with the panelboard and installation environment before use.


Where It Works Best

• Commercial and light industrial electrical panelboards
• Multi-phase distribution systems requiring 3-pole protection
• Maintenance or replacement within existing CHB-series breaker panels
• Electrical service equipment operating at 240VAC
• Facilities maintaining legacy electrical distribution infrastructure
